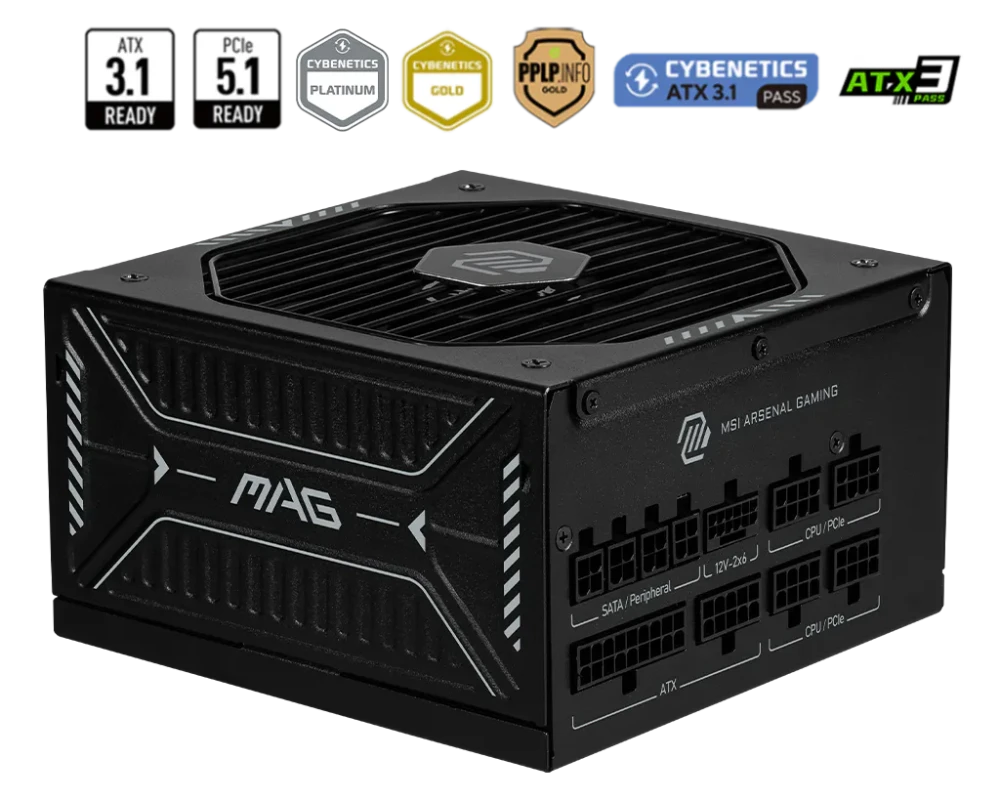

MSI MAG A850GLS PCIE5 850W 80 PLUS Gold ATX 3.1 PCIe 5.1 Fully Modular Power Supply (MAGA850GLSPCIE5)
SKU: MAGA850GLSPCIE5
Options
Product Description
Featuring ATX 3.1 and PCIe 5.1 support with native 12V-2x6 connectors, these PSUs are built to handle NVIDIA's 50 series graphics cards and AI PCs with ease. Advanced thermal solutions ensure cool, stable, and efficient operation, even under heavy loads, giving you the reliability and durability you need for gaming, streaming, or AI-powered tasks.
Key Features:
- Support NVIDIA® GeForce RTX™ 50 Series graphics cards
- Native 12V-2x6 connector
- Dual-color 12V-2x6 cable
- 80 PLUS Gold certified
- Optimized the sound level
- Main 105°C capacitor
- Embossed Jacket Cables, the cables are more bending and routing
- Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
Product Specifications:
| Specification Item | Details |
|---|---|
| Efficiency Rating | 80 PLUS Gold (up to 90%) |
| Modular | Yes (full modular) |
| Fan Size | 135 mm |
| Fan Bearing | Fluid Dynamic Bearing |
| Dimensions (DxWxH) | 150 x 150 x 86 mm |
| PFC Type | Active PFC |
| Input Voltage Range | 100-240V~ |
| Input Frequency Range | 47-63 Hz |
| Power Watt | 850W |
| Power Excursion | 1870W (*up to 220% of the PSU's rated power for 100µs) |
| Protection | OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO |
Connector Count:
| Connector Type | Count |
|---|---|
| ATX (24 pin) | 1 |
| EPS (8 pin) | 1 |
| EPS (4+4 pin) | 1 |
| PCI-E 5.1 (16 pin) | 1 (600W) |
| PCI-E (6+2 pin) | 4 |
| SATA (15 pin) | 8 |
| MOLEX (4 pin) | 3 |
| FDD (4 pin) | 1 |
