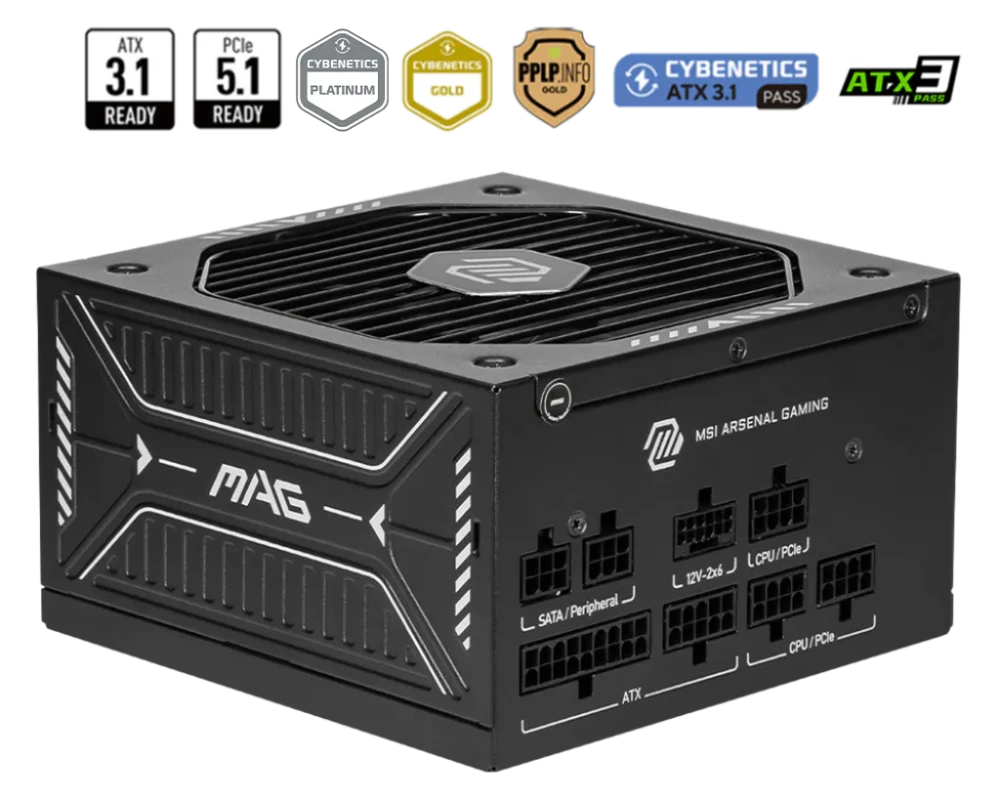

MSI MAG A750GLS PCIE5 750W 80 PLUS Gold ATX 3.1 PCIe 5.1 Fully Modular Power Supply (MAGA750GLSPCIE5)
SKU: MAGA750GLSPCIE5
Options
Product Description
Featuring ATX 3.1 and PCIe 5.1 support with native 12V-2x6 connectors, these PSUs are built to handle NVIDIA's 50 series graphics cards and AI PCs with ease. Advanced thermal solutions ensure cool, stable, and efficient operation even under heavy loads, providing the reliability and long-lasting durability you need for gaming, streaming, or AI-powered tasks.
Key Features:
- Support NVIDIA® GeForce RTX™ 50 Series graphics cards
- Native 12V-2x6 connector
- Dual-color 12V-2x6 cable
- 80 PLUS Gold certified
- Optimized noise level
- 105°C main capacitor
- Embossed-lined flat modular cables
- Industrial level protection: OCP, OTP, OPP, SCP, OVP, UVP, SIP, NLO
Product Specifications:
| Specification Item | Details |
|---|---|
| Product Name | MAG A750GLS PCIE5 |
| PSU Form Factor | ATX |
| Power Wattage | 750W |
| Efficiency Certification | 80 PLUS Gold (up to 90%) |
| Fan Size | 135 mm |
| Fan Bearing | Fluid Dynamic Bearing |
| Dimensions (D x W x H) | 150 x 150 x 86 mm |
| PFC Type | Active PFC |
| Input Voltage Range | 100-240V~ |
| Input Frequency Range | 50-60 Hz |
| Protection | OCP / OTP / OPP / SCP / OVP / UVP / SIP / NLO |
Connector Count:
- ATX (24 pin) : 1
- EPS (4+4 pin) : 2
- PCI-E 5.1 (16 pin) : 1 (450W)
- PCI-E (6+2 pin) : 4
- SATA (15 pin) : 5
- PERIPHERAL (4 pin) : 2
- FDD (4 pin) : 1
