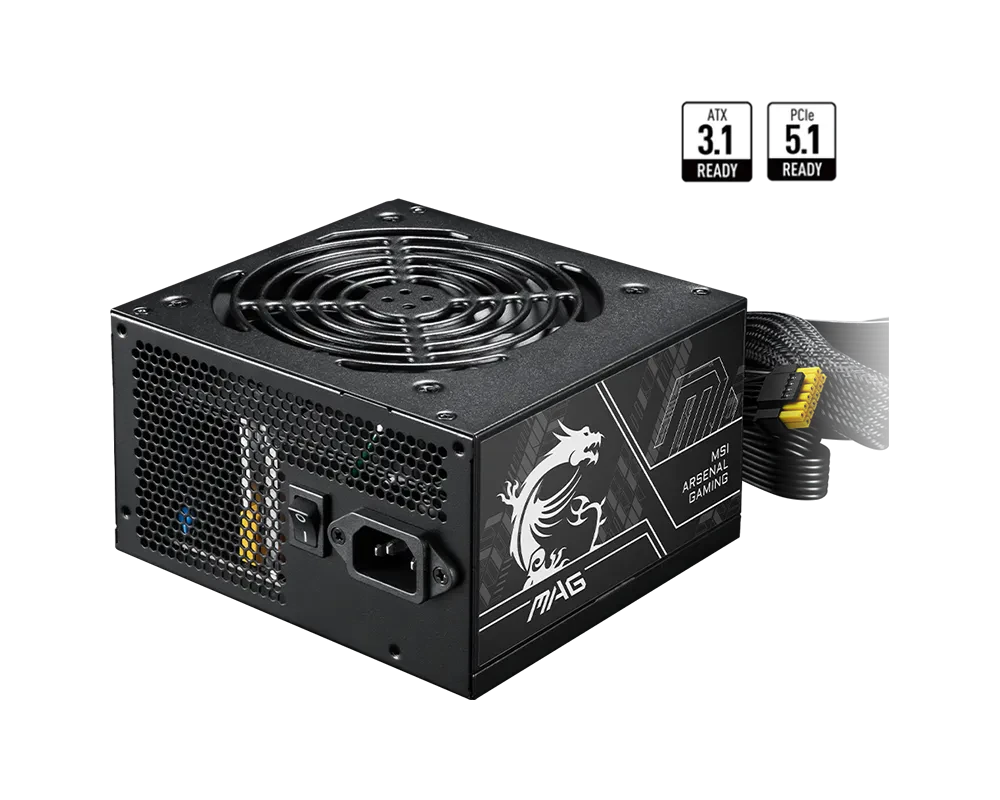

MSI MAG A650BN PCIE5 II 650W 80 PLUS Bronze ATX 3.1 PCIe 5.1 Power Supply (MAGA650BNPCIE5III)
SKU: MAGA650BNPCIE5III
Options
Product Description
The MAG A650BN PCIE5 II provides players with a safe, reliable, and efficient entry-level power supply option. Its core features include 80 PLUS Bronze certification, DC-to-DC circuit design, 12V single rail, active PFC, and low-noise fan. The MAG A650BN PCIE5 II will be one of the best choices for players who are just getting started with looking into DIY computers. After installation, players can immediately enjoy a reliable performance experience without additional settings.
Key Features:
- Support NVIDIA® GeForce RTX™ 50 Series graphics cards
- Native 12V-2x6 connector
- 80 PLUS Bronze certified (up to 85% efficiency)
- 120mm low-noise fan
- DC-to-DC circuit design for enhanced output voltage stability
- Comprehensive protection mechanisms: OVP, OCP, SCP, OPP, UVP
Product Specifications:
| Specification Item | Details |
|---|---|
| Product Name | MAG A650BN PCIE5 II |
| PSU Form Factor | ATX |
| Power Wattage | 650W |
| Efficiency Certification | 80 PLUS Bronze (up to 85%) |
| Modular | No |
| Fan Size | 120 mm |
| Fan Bearing | Hydraulic Bearing |
| Dimensions (D x W x H) | 140mm x 150mm x 86mm / 5.51 x 5.9 x 3.38 inches |
| PFC Type | Active PFC |
| Input Voltage Range | 100-240V~ |
| Input Frequency Range | 50-60Hz |
| Protection | OVP, OCP, SCP, OPP, UVP |
Connector Count:
- ATX (24 pin) : 1
- EPS (8 pin) : 1
- EPS (4+4 pin) : 1
- PCI-E 5.1 (16 pin) : 1 (300W)
- PCI-E (6+2 pin) : 2
- SATA (15 pin) : 3
- PERIPHERAL (4 pin) : 2
