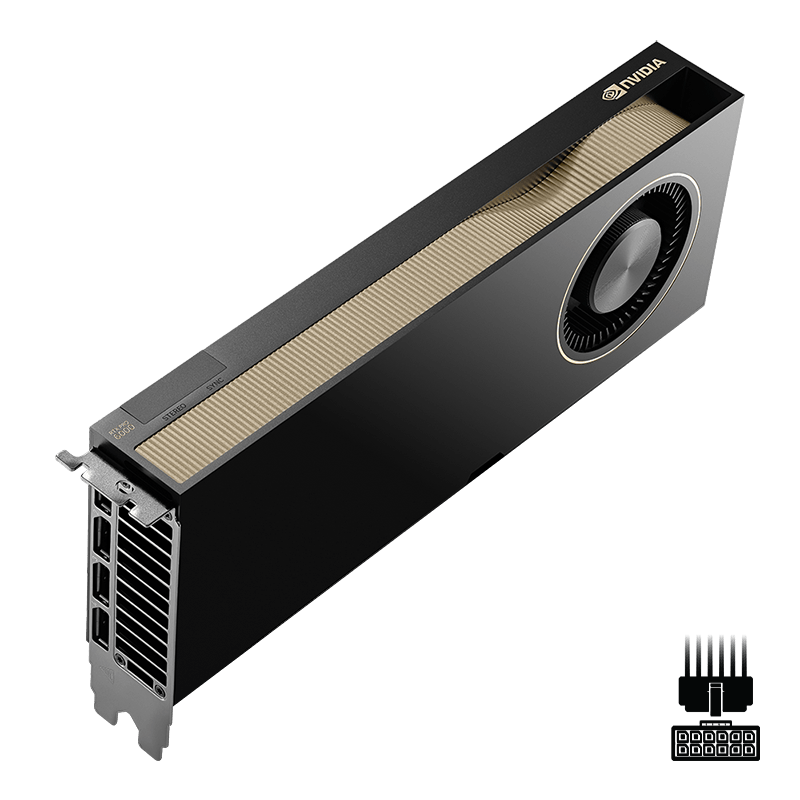

PNY NVIDIA RTX PRO 6000 Blackwell Max-Q Workstation Edition 96GB GDDR7 ECC PCIe 5.0 x16 4xDP Video Card (VCNRTXPRO6000BQ-PB)

The NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition is the ultimate workstation GPU for scalable computing. With 96GB of GDDR7 memory, tackle massive datasets, drive complex simulations, and run AI-enhanced applications with unparalleled performance and accuracy. Ideal for mission-critical applications, it delivers scalability, reliability, and innovation for data science, AI, and visualization.

• Features
  • NVIDIA Blackwell Architecture
  • 96 GB GDDR7 with ECC
  • NVIDIA RTX PRO SYNC Compatible
  • 4 x Display Port 2.1
  • 24,064 CUDA® Cores
  • 300 W Max Power Consumption

Specifications

PNY Part Numbers

VCNRTXPRO6000BQ-PB
VCNRTXPRO6000BQ-BLK

Architecture

NVIDIA Blackwell Architecture

Foundry

TSMC

Process Size

4N NVIDIA Custom Process

Transistors

92.2 Billion

Die Size

750 mm2

CUDA Parallel Processing Cores

24,064

NVIDIA Tensor Cores

752

NVIDIA RT Cores

188

GPU Memory

96 GB GDDR7 with ECC

Memory Interface

512-bit

Memory Bandwidth

1792 GB/s

Max Power Consumption

300W
NVIDIA RTX Power Guidelines (PDF)

Multi-Instance GPU

Up to 4x 24GB
Up to 2x 48GB
Up to 1x 96GB

Graphics Bus

PCI Express 5.0 x16

Display Connectors

DP 2.1 (4)
NVIDIA RTX Display Resolution Support (PDF)

Form Factor

4.4” H x 10.5” L, FHFL Dual Slot

Product Weight

1.23 kg

Thermal Solution

Blower Active Fan

NVIDIA® 3D Vision® and 3D Vision Pro

Support Via 3-pin Mini DIN

Frame Lock

Compatible (with NVIDIA RTX PRO Sync)

Power Connector

1x PCIe CEM5 16-pin

NVENC | NVDEC | JPEG

4x | 4x | 4x

Performance numbers may be subject to change until product availability.

1Peak rates are based on GPU boost clock.
2Theoretical FP4 TOPS using the sparsity feature.

System Requirements

System Requirements

• Intel Core i5, i7, i9, or Xeon processor or later
• AMD Ryzen or Epyc class processor or later
• PCI Express 5.0 x16 (preferred) expansion slot
• System memory greater than or equal to GPU memory, twice the GPU memory recommended
• Internet connection for driver installation
• DisplayPort 2.1 (preferred), HDMI®, or DVI-compatible display(s)

Supported Platforms

• Microsoft Windows 11 (64-bit)
• Microsoft Windows 10 (64-bit)
• Red Hat Enterprise Linux 7.x
• SUSE Linux Enterprise Desktop 15.x
• Fedora 31
• Ubuntu 18.04
• FreeBSD 11.x
• Solaris 11

Package Contains

• NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition Professional Graphics Card
• One (1) Auxiliary Power Cable
