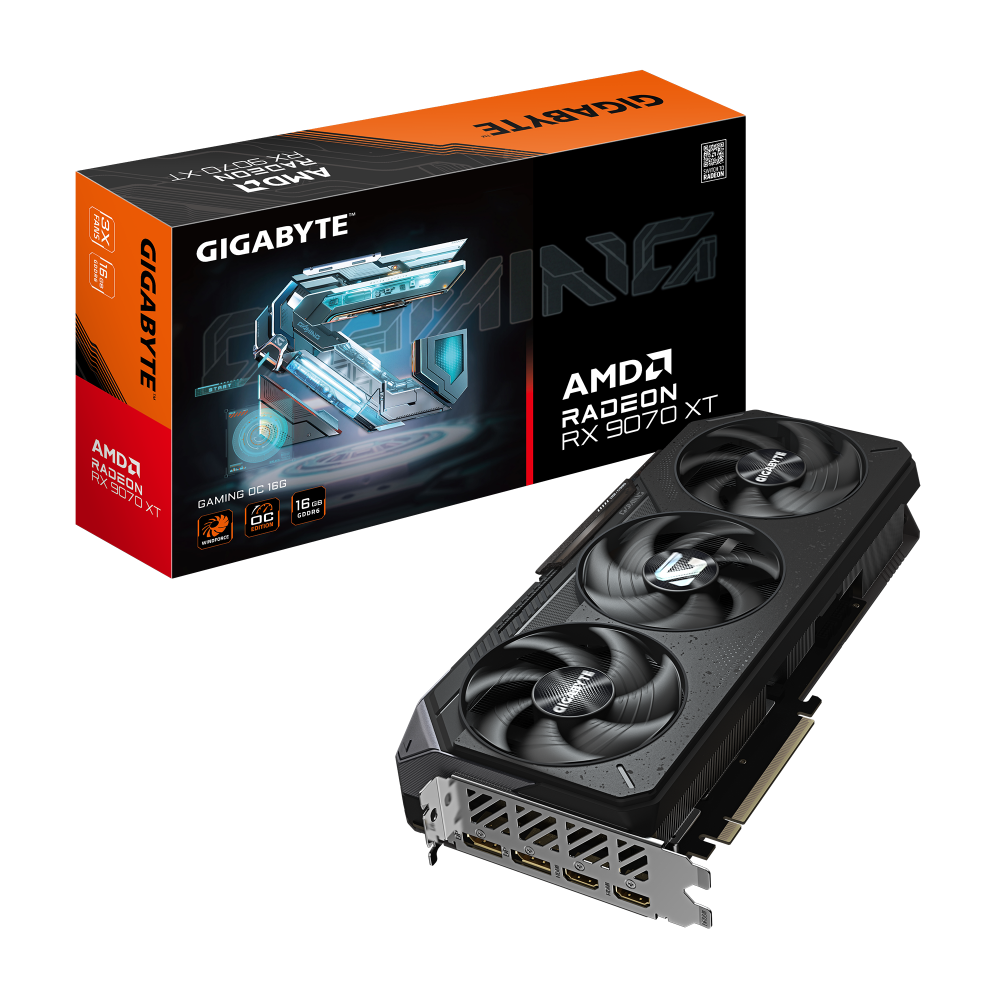

Gigabyte Radeon RX 9070 XT GAMING OC 16G GDDR6 PCIe 5.0 2xHDMI/2xDP Video Card (GV-R9070XTGAMING OC-16GD)

• Graphics Processing

  Radeon™ RX 9070 XT

• Core Clock

  Boost Clock* : up to 3060 MHz (Reference card: 2970 MHz)
  Game Clock* : up to 2520 MHz (Reference card: 2400 MHz)

• Stream Processors

  4096

• Memory Clock

  20 Gbps

• Memory Size

  16GB

• Memory Type

  GDDR6

• Memory Bus

  256 bit

• Card Bus

  PCI-E 5.0

• Digital max resolution

  7680x4320

• Multi-view

  4

• Card size

  L=288 W=132 H=56 mm

• PCB Form

  ATX

• DirectX

  DirectX 12 API

• OpenGL

  4.6

• Recommended PSU

  850W

• Power Connectors

  8 pin*3

• Output

  DisplayPort 2.1a *2
  HDMI 2.1b *2

• Accessories

  Quick guide

• Note

  * “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. GD-151
  * “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
