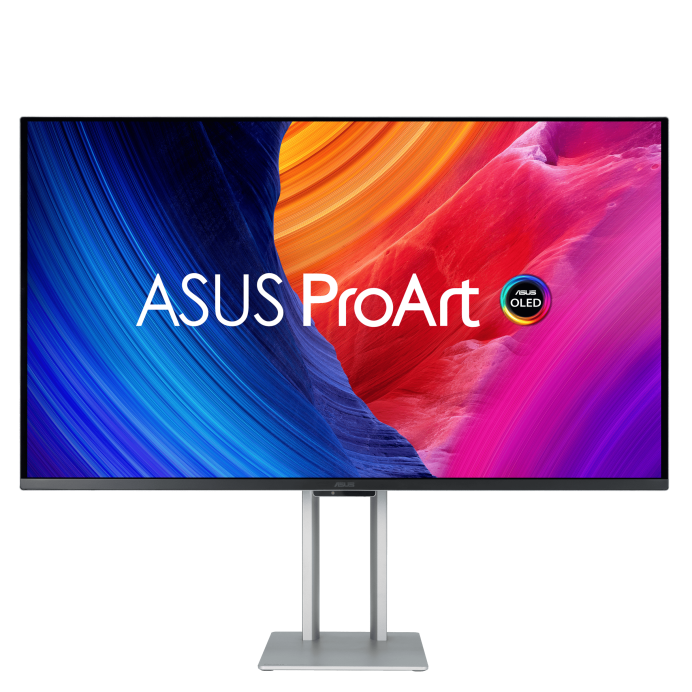

ASUS ProArt Display OLED PA32UCDM 32" 4K 3840x2160 QD-OLED HDR 240Hz DV, Calman Ready, Auto Calibration, Pivot, Height, HDMI,TB4 Monitor

ASUS ProArt Display OLED PA32UCDM Professional Monitor – 32-inch (31.5 inch viewable), 4K UHD (3840 x 2160), QD-OLED, Ultra-slim, 240Hz, 0.1ms, Auto Calibration, HDR-10, HLG, Dolby Vision, 99% DCI-P3, ΔE < 1, Thunderbolt™ 4 PD 96W, Calman Ready, ColourSpace Integration, Ergonomic Stand, Green Sustainability

• 31.5-inch 4K UHD (3840 x 2160) QD-OLED panel with 240 Hz refresh rate and 0.1 ms (GTG) response time for smooth rendering
• 1000 nits peak brightness with VESA DisplayHDR™ True Black 400 for exceptional color contrast
• True 10-bit color depth and Quantum Dot technology provide 100% sRGB, 99% DCI-P3 and BT. 2020 color gamut
• World-leading ∆E < 1 color performance and ASUS ProArt Hardware Calibration Technology for color-accuracy optimization and color profile write-back
• Multiple HDR format support, including Dolby Vision®, HLG and HDR10 (Dolby Vision will be ready in 2025/Q3 via firmware update)
• Rich connectivity including dual Thunderbolt™ 4 up to 96W Power Delivery with daisy-chaining, HDMI2.1 and a built-in USB Hub
• Ergonomic design with tilt, pivot and height adjustments for a comfortable viewing experience
• Green Sustainability: paper packaging and energy-efficient environmental standards

Model

ProArt Display OLED PA32UCDM

Display

Panel Size (inch) : 31.5
Pixels Per Inch (PPI) : 140
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 699.48 x 394.73 mm
Display Surface : Anti-Reflection
Panel Type : QD-OLED
Viewing Angle (CR≧10, H/V) : 178°/ 178°
Pixel Pitch : 0.182mm
Resolution : 3840x2160
Color Space (sRGB) : 100%
Color Space (DCI-P3) : 99%
Brightness (HDR, Peak) : 1,000 cd/㎡
Brightness (Typ.) : 250cd/㎡
Contrast Ratio (HDR, Max) : 1,500,000:1
Contrast Ratio (Typ.) : 1,500,000:1
Display Colors : 1073.7M (10 bit)
Response Time : 0.1ms(GTG)
Refresh Rate (Max) : 240Hz
HDR (High Dynamic Range) Support : HDR10
HDR (High Dynamic Range) Support : HLG
HDR (High Dynamic Range) Support : Dolby Vision
Flicker-free : Yes
ASUS OLED Care : Yes

Features

ProArt Preset : Native
ProArt Preset : sRGB
ProArt Preset : Adobe RGB
ProArt Preset : DCI-P3
ProArt Preset : BT.2020
ProArt Preset : DICOM
ProArt Preset : Rec.709
ProArt Preset : HDR_PQ DCI
ProArt Preset : HDR_PQ BT.2020
ProArt Preset : HDR_HLG BT.2100
ProArt Preset : HDR_HLG DCI
ProArt Preset : Dolby Vision
ProArt Preset : User mode1
ProArt Preset : User mode2
ProArt Preset : User mode3
Color Temp. Selection : Yes(5 modes)
Color Adjustment : RGB Tuning (Gain / Offset)
Gamma Adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6)
Color Accuracy : △E< 1
ASUS ProArt Hardware Calibration : Yes
ProArt Palette : Yes
QuickFit Plus : Yes
PIP / PBP Technology : Yes
HDCP : Yes, 2.3
VRR Technology : Yes (Adaptive-Sync)
HDR Preview : Yes
DisplayWidget : Yes, DisplayWidget Center
Low Blue Light : Yes
Multiple HDR Mode : Yes

Audio

Speaker : Yes(3Wx2)

I/O Ports

Thunderbolt 4 x 2 (Daisy Chain)
HDMI(v2.1) x 1
USB Hub : 1x USB 3.2 Gen 2 Type-A
USB Hub : 1x USB 3.2 Gen 2 Type-C
USB-C Power Delivery : 96W

Signal Frequency

Digital Signal Frequency : HDMI: 15~583 KHz (H) / 48~240 Hz (V)
Thunderbolt USB-C: 15~583 KHz (H) / 48~240 Hz (V)

Power Consumption

Power Consumption : <32W
Power Saving Mode : <0.5W
Power Off Mode : <0.3W
Voltage : 100-240V, 50/60Hz

Mechanical Design

Tilt : Yes (+20° ~ -5°)
Pivot : Yes (+90° ~ -90°)
Height Adjustment : 0~130mm
Ambient Light Sensor : Yes
Proximity Sensor : Yes
VESA Wall Mounting : 100x100mm
Kensington Lock : Yes

Dimensions (Esti.)

Phys. Dimension (W x H x D) : 71.73 x 60.25 x 22.80 cm (28.24" x 23.72" x 8.98")
Phys. Dimension without Stand (W x H x D) : 71.73 x 42.23 x 4.24 cm (28.24" x 16.63" x 1.67")
Box Dimension (W x H x D) : 82.0 x 57.7 x 28.2 cm (32.28" x 22.72" x 11.10")

Weight (Esti.)

Net Weight : 9.0 kg (19.84 lbs)
Net Weight without Stand : 6.5 kg (14.33 lbs)
Gross Weight : 16.6 kg (36.60 lbs)

Accessories (vary by regions)

Color pre-calibration report
HDMI Ultra High Speed Cable
Power cord
Quick release stand
Quick start guide
Thunderbolt™ 4 Cable
USB-C to A cable
Warranty Card
Welcome Card

Certificate

Energy Star
TÜV Flicker-free
TÜV Low Blue Light
VESA DisplayHDR 400 True Black
Calman Ready
FSC MIX
Mac Compliance

Warranty

3 years (including panel burn-in)
