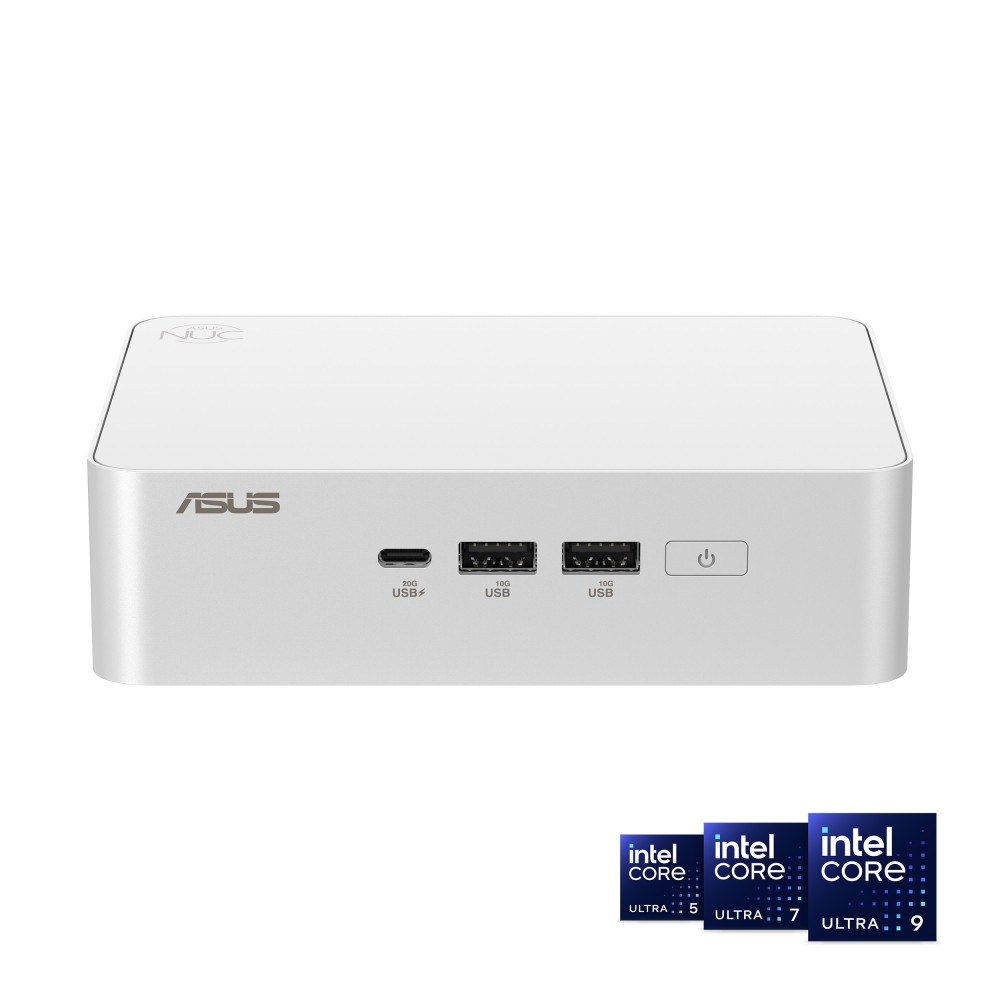

ASUS NUC 15 Pro+ NUC15CRSU9 Intel Core Ultra 9 285H 2xSODIMM DDR5 5600MT/s 2xM.2 SSD Intel Arc 140T Graphics Thunderbolt 4 1x2.5G LAN Wi-Fi 7+BT Barebone Kit Mini PC (RNUC15CRSU90000U)
SKU: RNUC15CRSU90000U
$1,260.99
$1,259.99
+ $1.00 Environmental
Options
Product Description
| Color | Silver |
| CPU Type | Core Ultra 9 |
| CPU Gen | Series 2 |
| CPU Name | Intel Core Ultra 9 285H |
| Total Cores | 16 |
| Total Threads | 16 |
| TDP | 45W |
| Chipset | Intel SoC Platform |
| Installed RAM | No RAM installed |
| # of Slots | 2 |
| RAM Type | SO-DIMM DDR5-5600 MHz / CSO-DIMM DDR5-6400 MHz |
| Max RAM Supported | 96GB (via 2 x 48GB) |
| VGA | Integrated - Intel Arc 140T Graphics |
| Installed Storage | No Storage Installed |
| Storage Type | Up to (2) internal storage drives: 1 x M.2 2280 PCIe Gen4x4 NVMe SSD (empty) 1 x M.2 2242 PCIe Gen4x4 NVMe SSD (empty) |
| Max Storage Supported | M.2 2280 SSD | supports 128GB ~ 8TB M.2 2242 SSD | supports 128GB ~ 2TB |
| Side I/O | N/A |
| Front I/O | 1 x USB 3.2 Gen2x2 Type-C 2 x USB 3.2 Gen2 Type-A |
| Rear I/O | 2 x Thunderbolt 4 (with DisplayPort 2.1) 1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps) 1 x USB 2.0 Type-A (5V/0.5A, 480Mbps) 2 x HDMI 2.1 (up to 4K@60Hz) 1 x Intel i226-V LAN, 2.5GbE (RJ45) 1 x Kensington Lock Slot 1 x DC-in |
| Type-C | 3 |
| Type-A | 4 |
| Included | Yes |
| Supported | 4 |
| Graphics Output | 2 x Thunderbolt 4 (DisplayPort 2.1 via Type-C) 2 x HDMI 2.1 (up to 8K@60Hz) |
| Speaker | None |
| Card Reader | None |
| LAN | 1 x Intel i226-V (2.5 GbE) |
| TPM | fTPM 2.0 (Intel PTT) |
| Installed OS | No OS Installed |
| OS Supported | Windows 11 Home/Pro, 64-bit Ubuntu 24.04 LTS, 64-bit RedHat Enterprise Linux, 64-bit Chrome OS Flex |
| WLAN | Intel Wi-Fi 7 BE201 (Gig+), 2x2 |
| BT | BT 5.4 |
| Power | 150W |
| Accessories | VESA Mount & Screws / AC Power Adapter/ Power Cord |
| PWR Cord | US Only |
| PWR Cord Type | Cord Included |
| ASUS Logo | No |
| Fanless | No |
| Form Factor | Kit (L6) |
| Energy Star | TBD |
| EPEAT | TBD |
| Volume | 0.67L |
| Net (LxWxH) | 5.67" x 4.41" x 1.65" |
| Packing (LxWxH) | 6.77" x 6.30" x 4.76" |
| Net | 1.52 |
| Gross | 3.70 |
