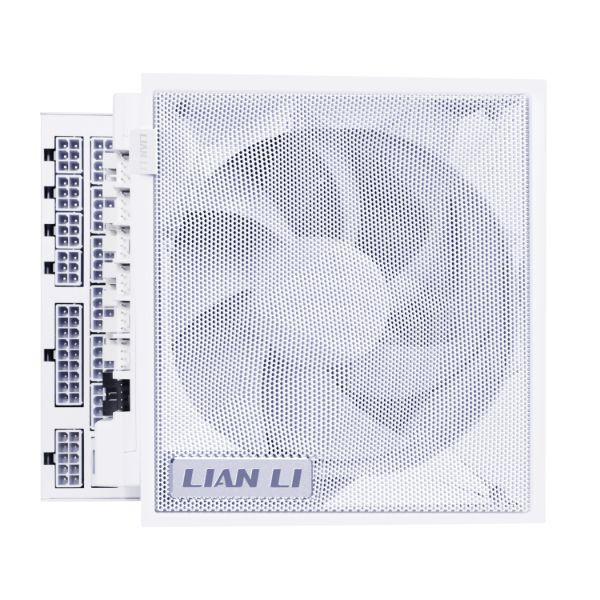

Lian Li EDGE GOLD 850W White L-shape 80 PLUS Gold ATX 3.1 PCIe 5.1 Fully Modular Power Supply (EG850G WH)
SKU: EG0850G WH
$158.99
Options
Product Description
EDGE GOLD
- L-shape design tailored for dual chamber cases
- 80 PLUS Gold efficiency
- PCIe 5.1 ready with in-house R&D 12V-2×6 alloy copper soldered terminals
- Detachable USB hub with 4 internal usB 2.0 headers and 6 PWM headers, offered in 1200W and 1000W
- Removable magnetic fan dust filter
- Built with German top-end, industrial-grade EPCOS capacitors
- Fully modular braided-texture cables with pre-installed cable combs on MB/CPU/GPU connectors
SPECIFICATIONS
| PRODUCT NAME | EDGE GOLD 750 | EDGE GOLD 850 | EDGE GOLD 1000 | EDGE GOLD 1200 |
|---|---|---|---|---|
| MODEL | EG0750G | EG0850G | EG1000G | EG1200G |
| DIMENSIONS | (D)182 mm X (W)86 mm X (H)150 mm | |||
| POWER SUPPLY DESIGN | Fully modular | |||
| COLOR | Black | Black/ White | ||
| MATERIAL | Steel | |||
| FORM FACTOR | ATX 3.1 | |||
| CERTIFICATION | 80 PLUS GOLD / Cybenetics GOLD / PPLP GOLD | |||
| MAX. DC OUTPUT | 750W | 850W | 1000W | 1200W |
| COMBINED +3.3V & +5V | 120W | 120W | 120W | 120W |
| COMBINED +12V | 744W | 849W | 996W | 1200W |
| INPUT VOLTAGE | 100-240Vac | 100-240Vac | 100-240Vac | 100-240Vac |
| INPUT FREQUENCY RANGE | 9-4.5A 50-60Hz | 10-5A 50-60Hz | 12-6A 50-60Hz | 15-7.5A 50-60Hz |
| PFC | Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz | |||
| EFFICIENCY | 90.52%MAX | 90.71%MAX | 91.24%MAX | 91.64%MAX |
| PROTECTIVE CIRCUIT | OCP/OVP/OTP/OPP/SCP/UVP | |||
| CONNECTORS | 1 x 24/20-Pin motherboard connector (620mm) x1pcs 1 x 8 pin CPU/ATX 12V connector (750mm) x1pcs 1 x 4+4 Pin CPU connector (750mm) x1pcs 1 x 6+2 Pin GPU connector (650mm+100mm) x1pcs 1 x SATA connector (300mm-15mm-15mm-15mm) x1pcs 1 x SATA-Y connector (375mm-150mm-150mm) x 1pcs 1 x SATA connector (400mm-150mm-150mm-150mm) x1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm) x1pcs 1 x 12V – 2X6 450W connector (650mm) x1pcs 2 x 6+2 Pin GPU connector (650mm) x2pcs | 1 x 24/20-Pin motherboard connector (620mm) x1pcs 1 x 8 pin CPU/ATX 12V connector (750mm) x1pcs 1 x 4+4 Pin CPU connector (750mm) x1pcs 1 x 6+2 Pin GPU connector (650mm+100mm) x1pcs 1 x SATA connector (300mm-15mm-15mm-15mm) x1pcs 1 x SATA-Y connector (375mm-150mm-150mm) x 1pcs 1 x SATA connector (400mm-150mm-150mm-150mm) x1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm) x1pcs 1 x 12V – 2X6 450W connector (650mm) x1pcs 2 x 6+2 Pin GPU connector (650mm) x2pcs | 1 x 24/20-Pin motherboard connector (620mm) x1pcs 1 x 8/4+4 Pin CPU/ATX 12V connector (750mm) x1pcs 1 x 4+4 Pin CPU/ATX 12V connector (750mm) x1pcs 1 x 6+2 Pin PCle connector (650mm + 100mm) x1pcs 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs 4 x Y Type SATA connector (375mm-150mm-150mm-150mm) x1pcs 4 x SATA connector (400mm-150mm-150mm-150mm) x 1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs 1 x 12V – 2X6 600W connector (650mm) x1pcs USB*9pin – USB*9pin connector (470mm) × 1pcs USB*9pin -Type A connector (550mm) × 1pcs | 1 x 24/20-Pin motherboard connector (620mm) x1pcs 1 x 8/4+4 Pin CPU/ATX 12V connector (750mm) x1pcs 1 x 4+4 Pin CPU/ATX 12V connector (750mm) x1pcs 1 x 6+2 Pin PCle connector (650mm + 100mm) x1pcs 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs 4 x Y Type SATA connector (375mm-150mm-150mm-150mm) x1pcs 4 x SATA connector (400mm-150mm-150mm-150mm) x 1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs 1 x 12V – 2X6 600W connector (650mm) x1pcs 1 x 12V – 2X6 -2*8 600W connector (650mm) x1pcs USB*9pin – USB*9pin connector (470mm) × 1pcs USB*9pin -Type A connector (550mm) × 1pcs |
| FAN TYPE | 120mm FDB Fan | |||
| FAN SPEED | 2000RPM | 2400RPM | ||
| FAN NOISE LEVEL | 30.9dBA | 39.3dBA | ||
| WARRANTY | 10 Years ( Hub 2 Years ) | |||
