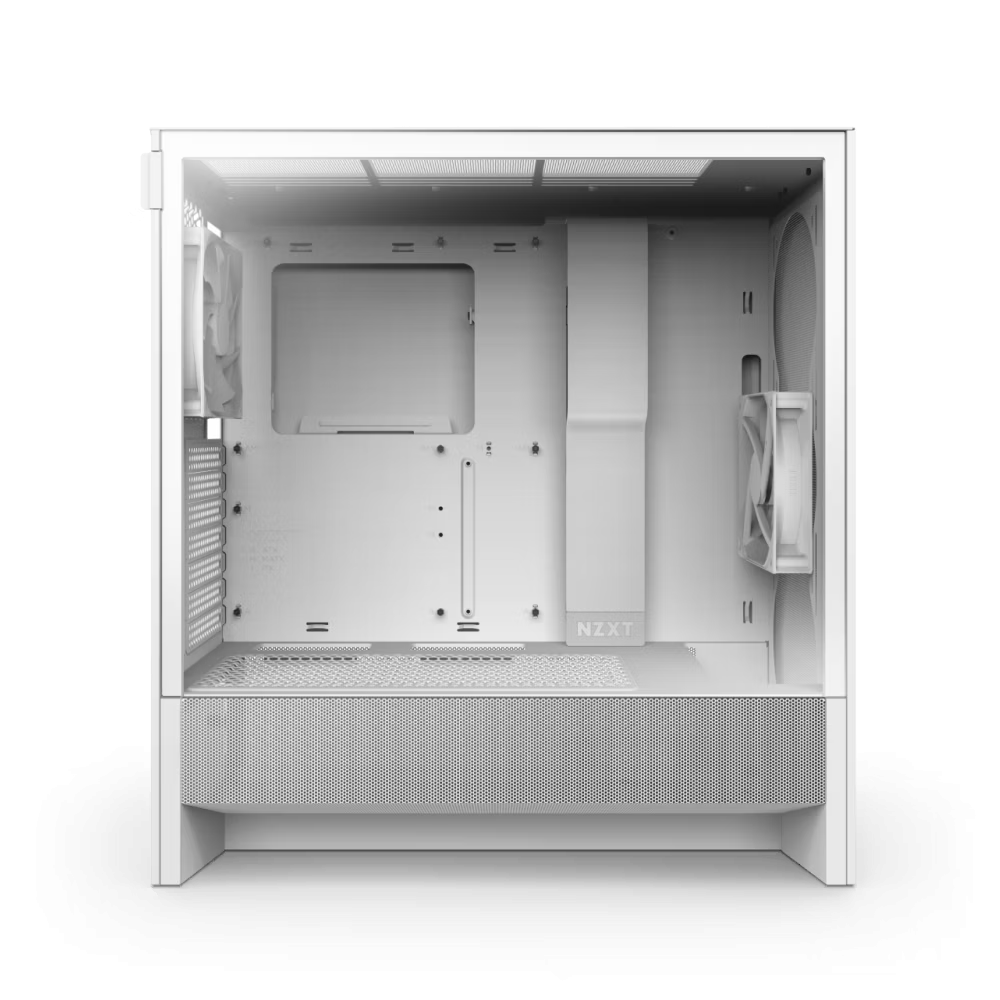

NZXT H5 Flow (2024) Blanc Tempered Glass ATX Mid-Tower Boitier (CC-H52FW-01)

Overview

Details

The H5 Flow boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.

• The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
• Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
• Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
• Equipped with two 120mm Quiet Airflow fans (CV) —one in front, one in rear—for solid out-of-the-box performance.
• Effortlessly route and conceal cables using the wide channels, hooks, and straps.

Inside the Box

• H5 Flow1
• F120Q (CV)2
• Installation accessories1
• User guide1

Tech Specs

Key Specs

• Motherboard Support:E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX
• Enclosure Type:Mid-Tower
• Case Material:SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)

Dimensions

• Height (with feet):465 mm / 18.31 in
• Width:225 mm / 8.86 in
• Depth:430 mm / 16.93 in
• Weight:7.28 kg / 16.04 lb

Compatibility & Clearance

• CPU Cooler Height:Up to 170 mm
• GPU Length:Up to 410 mm
• PSU Length:Up to 200 mm
• Cable Management:Up to 28.7 mm
• Top Radiator:Up to 240 mm (280 mm with low-profile memory)
• Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness:Up to 55 mm

Front Ports

• USB 3.2 Type-A:1
• USB 3.2 Type-C:1
• Headset Audio Jack:1

Expansion Slots

• Standard:7
• Vertical:0

Drive Bays

• 2.5":2
• 3.5":1

Fan Support

• Front:3 x 120 mm / 2 x 140 mm (1 x F120Q Case Version included)
• Top:2 x 120 mm / 2 x 140 mm
• Bottom:2 x 120 mm
• Rear:1 x 120 mm (1 x F120Q Case Version included)

Radiator Support

• Front:Up to 360 mm
• Top:Up to 240 mm (280mm with low-profile memory only)

Fan Specs

• Model:F120Q (Case Version)
• Speed:1,350 ± 150 RPM
• Airflow:60.2 CFM
• Static:1.05 mm-H₂O
• Noise:24.1 dBA
• Fan Connector:3-pin

General

• Warranty:2 years
• Model Number:CC-H52FW-01(White) / CC-H52FB-01 (Black)
• UPC:810074845908 (White) / 810074845915 (Black)
• EAN:5056547205847 (White) / 5056547205854 (Black)
