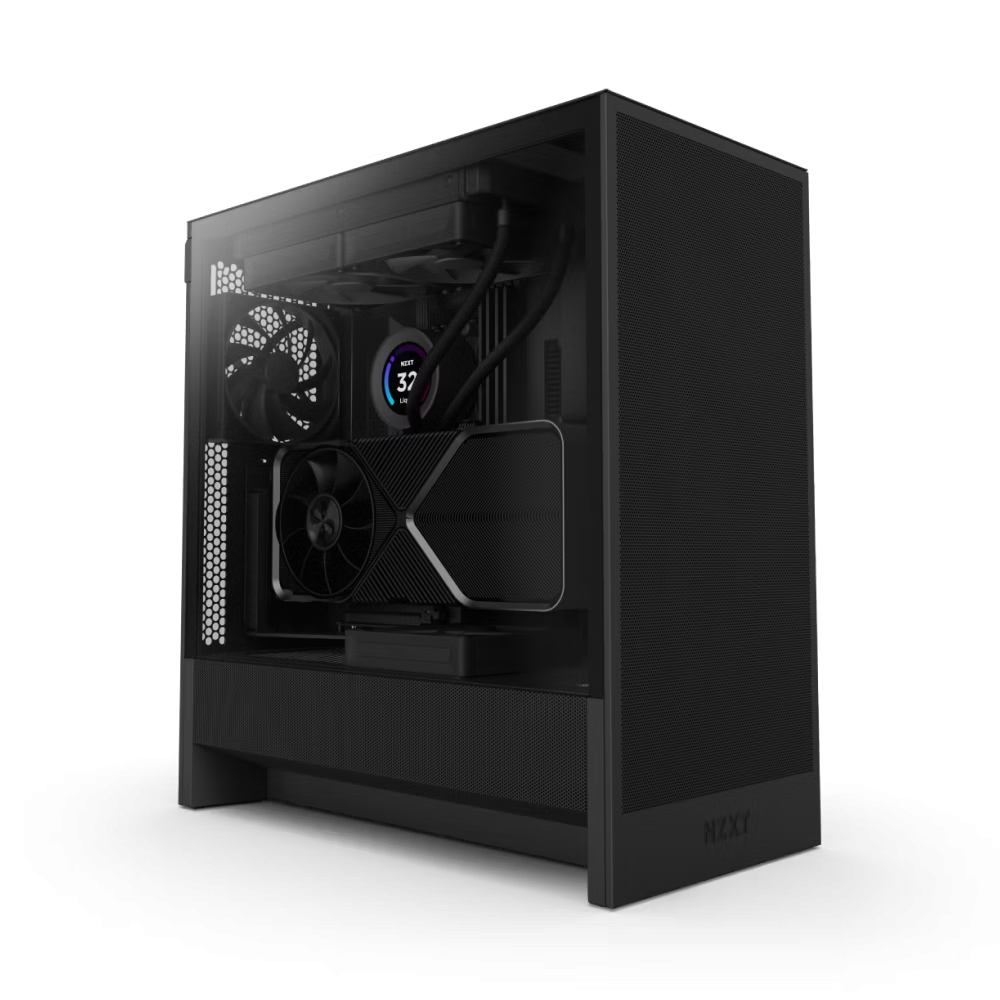

NZXT H5 Flow (2024) Noir Tempered Glass ATX Mid-Tower Boitier (CC-H52FB-01)
UGS: CC-H52FB-01
$154.99
Options
H2 Flow Noir/Black
H3 Flow Noir/Black
H5 Flow Noir/Black
H5 Flow RGB Noir/Black
H5 Flow Blanc/White
H5 Flow RGB Blanc/White
H6 Flow Noir/Black
H6 Flow Blanc
H6 Flow RGB Blanc/White
H7 Flow Noir/Black
H7 Flow RGB Noir/Black
H7 Flow Blanc/White
H7 Flow RGB Blanc/White
H7 Elite Noir/Black
H9 Flow Noir/Black
H9 Flow Blanc/White
H9 Elite Black/White
Description du produit
Overview
Details
The H5 Flow boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.
- The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
- Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
- Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
- Equipped with two 120mm Quiet Airflow fans (CV) —one in front, one in rear—for solid out-of-the-box performance.
- Effortlessly route and conceal cables using the wide channels, hooks, and straps.
Inside the Box
- H5 Flow1
- F120Q (CV)2
- Installation accessories1
- User guide1
Tech Specs
Key Specs
- Motherboard Support:E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX
- Enclosure Type:Mid-Tower
- Case Material:SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)
Dimensions
- Height (with feet):465 mm / 18.31 in
- Width:225 mm / 8.86 in
- Depth:430 mm / 16.93 in
- Weight:7.28 kg / 16.04 lb
Compatibility & Clearance
- CPU Cooler Height:Up to 170 mm
- GPU Length:Up to 410 mm
- PSU Length:Up to 200 mm
- Cable Management:Up to 28.7 mm
- Top Radiator:Up to 240 mm (280 mm with low-profile memory)
- Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness:Up to 55 mm
Front Ports
- USB 3.2 Type-A:1
- USB 3.2 Type-C:1
- Headset Audio Jack:1
Expansion Slots
- Standard:7
- Vertical:0
Drive Bays
- 2.5":2
- 3.5":1
Fan Support
- Front:3 x 120 mm / 2 x 140 mm (1 x F120Q Case Version included)
- Top:2 x 120 mm / 2 x 140 mm
- Bottom:2 x 120 mm
- Rear:1 x 120 mm (1 x F120Q Case Version included)
Radiator Support
- Front:Up to 360 mm
- Top:Up to 240 mm (280mm with low-profile memory only)
Fan Specs
- Model:F120Q (Case Version)
- Speed:1,350 ± 150 RPM
- Airflow:60.2 CFM
- Static:1.05 mm-H₂O
- Noise:24.1 dBA
- Fan Connector:3-pin
General
- Warranty:2 years
- Model Number:CC-H52FW-01(White) / CC-H52FB-01 (Black)
- UPC:810074845908 (White) / 810074845915 (Black)
- EAN:5056547205847 (White) / 5056547205854 (Black)
