Vantec NexStar SX, M.2 NVMe SSD to USB 3.2 Gen2x2, 20G, Type C, Black Enclosure (NST-230C3-BK)

NexStar SX, M.2 NVMe SSD to USB 3.2 Gen2x2, 20G, Type C, Black Enclosure

NST-230C3-BK

• Latest Birdge Chipset PCIe Gen3 to USB 3.2 Gen2x2, 20G Speed
• Design for Simple and Easy installation
• Enclosure is the Anodized Aluminum Heat Sink for protecting M.2 NVMe
• Pocket Size and Fit Ultra-Fast M.2 NVMe, Native C interface

Model:    NST-230C3-BK

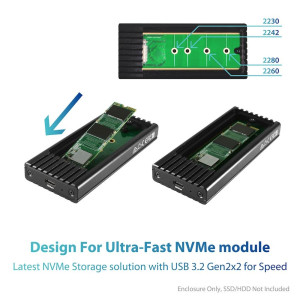

M.2 size:    Length support 2230, 2242, 2260, 2280

M.2 Support:    M.2 NVMe with “M” Key Only

Internal Interface:    1 x M.2 (NVMe, M-Key)

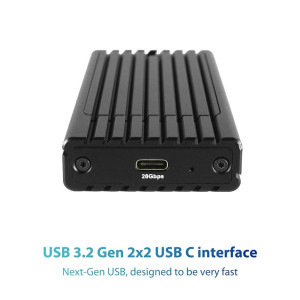

External Interface:    Standard USB 3.2 Gen 2x2 USB C

Enclosure Material:    Anodized Aluminum with Heat Sink

Power Supply:    Bus-powered, no external power supply needed

USB cable Type:    Shielded USB C to C Cable

USB cable length:    380mm / 14.9 inches

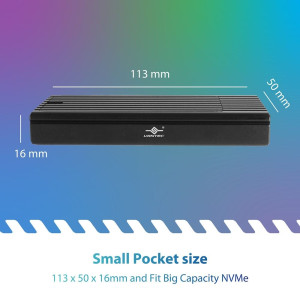

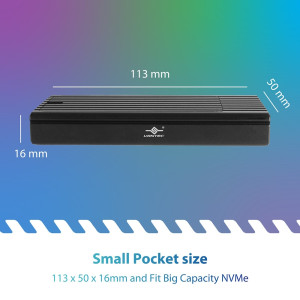

Dimensions:    113 x 50 x 16 mm / 4.4 x 1.9 x 0.6 inches

Item Weight:    144 grams / 5.1 oz.

OS Support:    Mac OS X 10.10 or higher, Windows 10/11, Latest Linux kernel

Environmental:

Operating Temperature: 0 ℃ to +45℃

Operating Humidity: 10% to 85 % RH (no condensation)

Storage Temperature: -10℃ to +70℃

Storage Humidity: 5% to 90% RH (no condensation)

System Requirements:

• USB Type C port (preferred support 20G speed)

• Latest OS support for USB C

• M.2 NVMe module with “M” Key only (PCIe 3.0 x4)

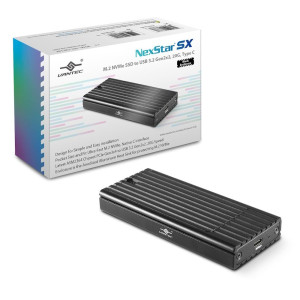

Package Contents:

• 1 x M.2 NVMe SSD to USB 3.2 Gen2x2, 20G, Type C, Black Enclosure

• 1 x Shielded 380mm USB C to C Cable

• 1  x Thermal Pad

• 1 x Quick Guide

EAN:   4716872104000

UPC:    844767023762
