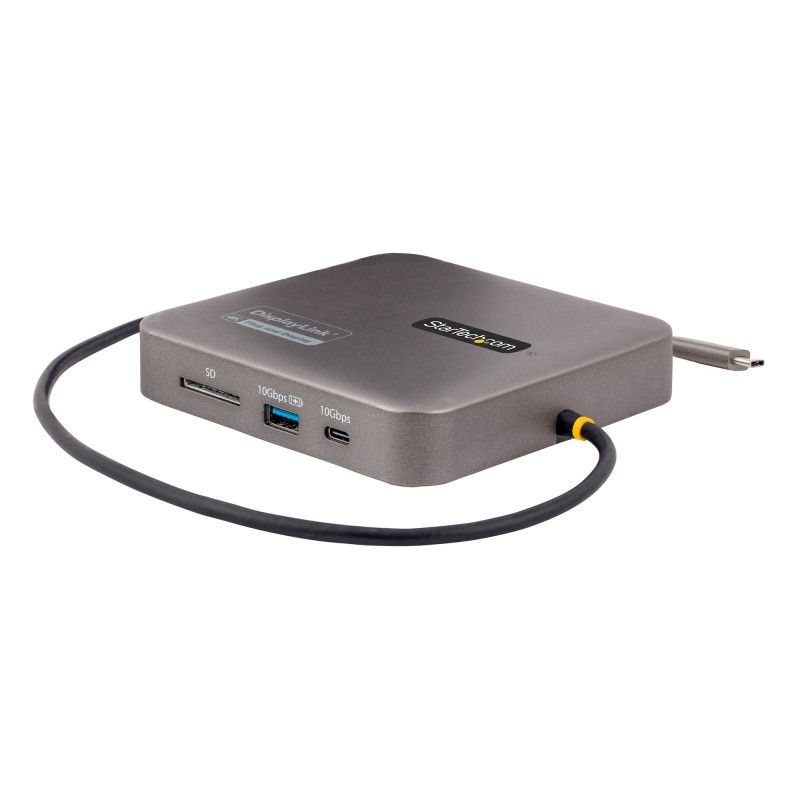

StarTech.com USB-C Multiport Adapter, Dual HDMI Video, 4K 60Hz, 2-Port USB-A/USB-C 10Gbps Hub, 100W PD, GbE, SD, 22" (56cm) Cable, Travel Dock, Docking Station (102B-USBC-MULTIPORT)

StarTech.com Adaptateur Multiport USB-C, Double HDMI Vidéo, 4K 60Hz, Hub USB-A/USB-C 10Gbps à 2 ports, 100W PD, GbE, SD, Câble de 56cm, Dock/Station d'Accueil de voyage (102B-USBC-MULTIPORT)

STARTECH.COM

UGS: 102B-USBC-MULTIPORT

$153.99

Description du produit

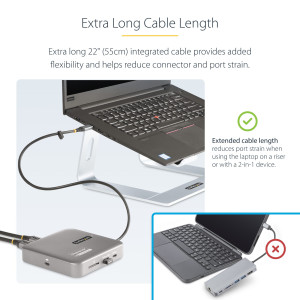

This USB-C Mini Dock / Multiport Adapter supports up to dual 4K 60Hz HDMI 2.0 converting your Dell XPS, MacBook or other USB-C laptop or tablet into a workstation, anywhere you go. The USB Type-C™ Multiport Adapter features 2x HDMI video outputs, a 2-Port USB 3.2 Gen 2 (10 Gbps) Hub (1x USB-A with B.C 1.2 charging, and 1x USB-C), an SD card reader, and Gigabit Ethernet. The adapter connects to your host computer's USB-C, USB4, or Thunderbolt 3/4™ port. Charge your host laptop and any attached USB peripherals by connecting the host laptop's power supply to the dedicated USB Power Delivery (PD) 3.0 port. The Multiport Adapter features an extra-long attached 22-inch (55 cm) host cable - for an extended reach, to offer more set up flexibility.

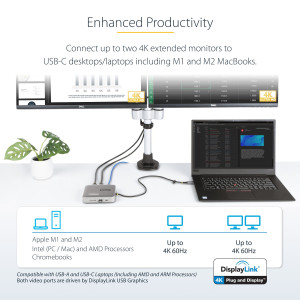

DisplayLink Certified Dual 4K 60Hz HDMI Video

The Mini Docking Station is DisplayLink Certified and supports high-performance dual-monitor 4K 60Hz video resolution with an integrated DisplayLink DL-6950 Controller. Multi-monitor performance makes this dock ideal for high-resolution applications such as video editing and graphic design. The Multiport Adapter supports ultrawide 21:9 aspect ratios, and lower resolutions like 1920x1200/1080p.

Connect Your Devices

The USB-C to USB 3.2 Gen 2 hub features two downstream 10 Gbps USB ports, including 1x USB-C data port for connecting your USB-C peripherals, and 1x USB-A data + 7.5W BC 1.2 charging port for connecting and charging USB-A peripherals.

Multiple Use Cases

A versatile dock solution for use at your office, home office, hotel, or in the boardroom, and is portable enough to be carried in your bag or backpack for mobile use. This lightweight USB-C Adapter can operate with bus-power alone, or use the dedicated USB-C Power Delivery port to connect a USB-C power adapter (not included with Multiport Adapter) for laptop charging.

Built-In SD Card Readers

Access your multimedia content with ease. The Multiport Adapter provides direct access to your SD, SDHC™ and SDXC™ memory cards.

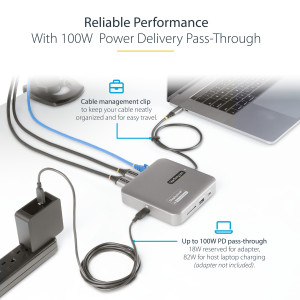

Charge Your Laptop

With support for USB Power Delivery 3.0 pass through (up to 82W for charging), the USB Type-C Multiport Adapter allows you to power and charge your laptop, when connected to a USB-C power source. PD 3.0 features Fast Role Swap (FRS) to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power). This allows you to charge the connected host device, as well as any devices connected to the USB-A BC 1.2 charging port.

Reliable Network Connectivity

The Gigabit Ethernet port ensures reliable wired network access, with support for PXE Boot and WoL.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

  • Advanced Window Layout Utility: To set up and save custom window layouts.

  • MAC Address Pass-Through Utility: To improve network security.

  • USB Event Monitoring Utility: To track and log connected USB devices.

  • Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools



Compatibility

Windows® 7, 8, 8.1, 10, 11
macOS 10.11 to 10.12, 10.14 to 10.15, 11.0, 12.0, 13.0, 14.0
Android™
Linux® Ubuntu 18.04, 20.04
ChromeOS™

Specifications

Warranty Information
Warranty
3 Years


Package Quantity
1

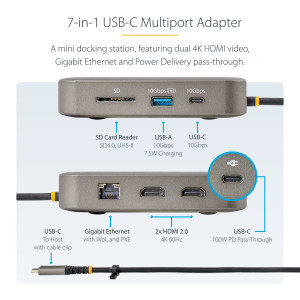

Connector(s)
External Ports
2 - HDMI (19 pin)

1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)

1 - USB 3.2 Type-A (9 Pin, Gen 2, 10Gbps, 7.5W Power)

1 - SD / MMC Slot

1 - RJ-45

1 - USB Type-C (24 pin) USB Power Delivery Only
Host Connectors
1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)

Environmental
Operating Temperature
0°C to 35°C (32°F to 95°F)
Storage Temperature
-25°C to 65°C (-13°F to 149°F)
Humidity
0~95% RH (Non-condensing)

Hardware
4K Support
Yes
Fast-Charge Port(s)
No
Displays Supported
2
Interface
USB 3.2 Gen 2 - 10 Gbit/s
Bus Type
USB-C
Industry Standards
HDMI 2.0

USB 3.2 Gen 2 (10Gbps)

USB Power Delivery Specification Rev. 3.0
Chipset ID
VIA - VL103R-Q4

VIA - VL822-Q8

ASMedia - ASM1541

Genesys Logic - GL3232S

Realtek - RTL8211F

DisplayLink - DL-6950

Packaging Information
Package Height
1.8 in [4.5 cm]
Package Length
5.5 in [14.0 cm]
Shipping (Package) Weight
11.2 oz [318.0 g]
Package Width
6.7 in [17.0 cm]

Performance
Wake On Lan
Yes
Maximum Data Transfer Rate
10Gbps
Maximum Digital Resolutions
Dual 4K (4096x2160) 60Hz
Type and Rate
USB 3.2 Gen 2 - 10 Gbit/s
UASP Support
Yes
Compatible Networks
10/100/1000 Mbps
PXE
Yes
Full Duplex Support
Yes
General Specifications
Maximum Laptop Charging: 82 W
MTBF
184,713 Hours

Physical Characteristics
Color
Space Gray
Product Height
1.0 in [2.5 cm]
Product Length
4.7 in [12.0 cm]
Weight of Product
8.8 oz [250.0 g]
Product Width
4.7 in [12.0 cm]
Material
Plastic
Cable Length
21.7 in [55 cm]

Power
Power Source
Bus Powered and Host USB-C Power Adapter
Power Delivery
100W
Output Voltage
5 DC
Power Consumption (In Watts)
18W

Software
OS Compatibility
Windows® 7, 8, 8.1, 10, 11
macOS 10.11 to 10.12, 10.14 to 10.15, 11.0, 12.0, 13.0, 14.0
Android™
Linux® Ubuntu 18.04, 20.04
ChromeOS™

Special Notes / Requirements
System and Cable Requirements
A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery).

Optional: USB-C power adapter (for example, your laptop's USB-C based power adapter).
Note
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery.

The adapter can connect to a host laptop's USB-C port that doesn't support USB Power Delivery. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.

A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K).

USB 3.2 Gen 2 (10Gbps) is also known as USB 3.1 Gen 2 (10Gbps).

Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.
