StarTech.com Station d'accueil pour Disque Dur SATA / SSD 2,5" ou 3,5" avec USB 3.0 (SATDOCKU3S)

UGS: SATDOCKU3S
Options
Description du produit
The SATDOCKU3S USB 3.0 Hard Drive Docking Station delivers full, instant access to any 2.5in or 3.5in SATA (SATA, SATA II, SATA III) hard drive (HDD) or solid state drive (SSD), without having to mount the drive in a computer or install it in an external enclosure. Large capacity drives (tested with up to 4TB 3.5" and 1TB 2.5" drives) can be used to greatly enhance your computer's storage/backup capabilities.
Connected to the host computer through a single USB 3.0 SuperSpeed or USB 2.0 connection, the hard drive docking station provides a convenient, plug-and-play storage solution that delivers instant access to the hard drive without requiring a reboot.
Relying on the outstanding data throughput support of USB 3.0, the HDD docking station is capable of transfer speeds of up to 5Gbps, making it the fastest way to access data from an external drive. Double the value of this hard drive docking station, using a SAT2IDEADP (SAT2IDEADP), which enables you to use any 2.5 or 3.5in IDE hard drive in a SATA hard drive dock slot.
To ensure compatibility with your computer system, the SATDOCKU3S supports all of the leading operating system platforms, including: Microsoft Windows®, Apple® OSX, Linux, and Google Chrome OS™.
Applications
- Data recovery specialists who need quick access to drives for imaging
- Backup data quickly to an external drive for archiving
- Technicians who test or benchmark multiple hard drives
- Take advantage of new laptops and desktops with USB 3.0 connectivity
- Upgrade from a USB 2.0 drive dock to faster USB 3.0
Compatibility
Specifications
Warranty Information | Warranty | 2 Years |
---|---|---|
Connector(s) | 1 - Drive Connectors | SATA Data & Power Combo (7+15 pin) |
1 - Host Connectors | USB Type-B (9 pin) USB 3.0 | |
Environmental | Operating Temperature | 5°C to 80° (41°F to 176°F) |
Storage Temperature | -40°C to 70°C (-40°F to 158°F) | |
Humidity | 8~80% RH | |
Hardware | Interface | USB 3.0 |
Number of Drives | 1 | |
Drive Size | 2.5in & 3.5in | |
Compatible Drive Types | SATA | |
Fan(s) | No | |
Chipset ID | ASMedia - ASM1053 | |
Indicators | 1 - LED Indicators | Power and Activity (Solid - Power, Blinking - Activity) |
Packaging Information | Package Height | 3.6 in [91 mm] |
Package Length | 6.8 in [17.2 cm] | |
Shipping (Package) Weight | 25.7 oz [728 g] | |
Package Width | 6.4 in [16.2 cm] | |
Performance | Type and Rate | USB 2.0 - 480 Mbit/s |
USB 3.0 - 5 Gbit/s | ||
UASP Support | No | |
Type and Rate | SATA II (3 Gbps) | |
Max Drive Capacity | Currently tested with up to 4TB 5400 RPM 3.5" hard drives and 1TB 5400 RPM 2.5" hard drive | |
Insertion Rating | 15,000 Cycles | |
Physical Characteristics | Weight of Product | 13.8 oz [392 g] |
Color | Black | |
Material | Plastic | |
Product Length | 5.7 in [14.5 cm] | |
Product Width | 3.7 in [93 mm] | |
Product Height | 2.6 in [65 mm] | |
Power | Power Source | AC Adapter Included |
Input Voltage | 100 - 240 AC | |
Output Voltage | 12V DC | |
Output Current | 2.5A | |
Center Tip Polarity | Positive | |
Plug Type | M | |
Power Consumption (In Watts) | 30 | |
Software | OS Compatibility | OS independent; No software or drivers required |

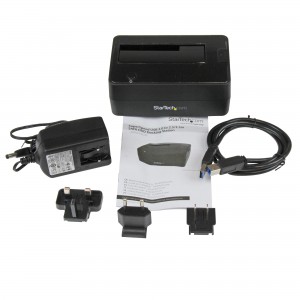

What's in the Box | 1 - Included in Package | USB 3.0 HDD Dock |
USB 3.0 Cable | ||
Universal Power Adapter (NA,EU,UK,ANZ) | ||
Instruction Manual |
Certifications
