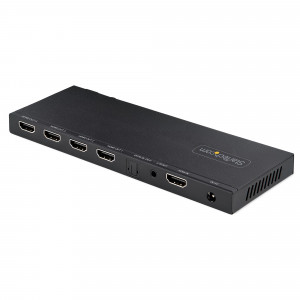

StarTech.com Splitter HDMI 4 Ports - Répartiteur HDMI 4K 60Hz avec Scaler Intégré - Répartiteur HDMI 1 Entrée 4 Sorties - Splitter HDMI 1080p PC - Port Optique 3.5mm (HDMI-SPLITTER-44K60S)
UGS: HDMI-SPLITTER-44K60S
$194.99
Options
Description du produit
- 4-PORT HDMI SPLITTER: This HDMI Splitter displays the same image, with audio, on 4 screens | 4:4:4 chroma subsampling support | HDMI 2.0b 4K 60Hz | HDR | 18Gbps Bandwidth | 7.1ch HDMI Audio | HDCP 2.2/1.4| 8kV Air and 4kV Contact ESD Protection
- EDID MANAGEMENT SWITCH: The 4 way HDMI Splitter's EDID Auto setting uses a built-in scaler for outputting 2 different display resolutions | EDID Copy clones the EDID settings from output port 1 to another display at the same resolution (720p and up)
- FLEXIBLE AUDIO SUPPORT: The 4K HDMI Splitter has HDMI, 3.5mm, and Optical audio outputs to connect to a variety of speakers or amplifiers | Simultaneous audio output is supported across all ports | Supports Digital to Analog conversion (DAC)
- LONG REACH: Reach up to 16.4ft (5m) with passive HDMI cables | The 1x4 HDMI Splitter supports active HDMI cables and HDMI extenders (sold separately) to reach further distances which makes it ideal for boardrooms, digital signage and more
- EASY SETUP: No drivers or software required for the 1-Input 4-output HDMI 2.0 splitter | The metal enclosure makes it suitable for installation in many environments | Widescreen resolutions supported | DVI compatible with adapters (sold separately)
Compatibility
No Drivers or Software Required
Specifications
Warranty Information
Warranty
2 Years
Connector(s)
Connector A
1 - HDMI
Connector B
4 - HDMI
1 - Toslink (SPDIF, Optical)
1 - 3.5mm Stereo Female 3 pos
Environmental
Operating Temperature
0°C - 40°C (32°F - 104°F)
Storage Temperature
-20°C - 60°C (-4°F - 140°F)
Humidity
20 - 90% RH (non-condensing)
Hardware
AV Input
HDMI - 2.0
Ports
4
AV Output
HDMI - 2.0
Audio
Yes
Industry Standards
HDMI 2.0b
Indicators
LED Indicators
1 - Power LED
1 - Input LED
4 - Output LEDs
Packaging Information
Package Length
5.9 in [15.0 cm]
Package Width
8.4 in [21.3 cm]
Package Height
2.2 in [5.5 cm]
Shipping (Package) Weight
1.0 lb [0.5 kg]
Package Quantity
1
Performance
Video Revision
HDMI 2.0b
Maximum Data Transfer Rate
18 Gbps
Maximum Cable Length
16.4 ft [5 m]
Maximum Digital Resolutions
3840x2160 (4K) @ 60Hz
3840x2160 (4K) @ 30Hz
1920x1080 (1080p)
1280x720 (720p)
3840x2160 (4K) @ 30Hz
1920x1080 (1080p)
1280x720 (720p)
Wide Screen Supported
Yes
Audio Specifications
Analog Stereo - 2 Channel Audio
HDMI - 7.1 Channel Audio
Physical Characteristics
Color
Black
Product Length
7.1 in [18.0 cm]
Product Width
2.4 in [6.2 cm]
Product Height
0.6 in [1.4 cm]
Weight of Product
8.8 oz [248.0 g]
Material
Metal
Power
Power Source
AC Adapter Included
Input Voltage
100 - 240 AC
Input Current
0.35 A
Output Voltage
5 DC
Output Current
1 A
Center Tip Polarity
Positive
Plug Type
M
Power Consumption (In Watts)
0.1 W
Software
OS Compatibility
No Drivers or Software Required
Special Notes / Requirements
Note
Audio output performance may be limited to 2-channel audio when all audio outputs are in use.
What's in the Box
Included in Package
1 - 4-port HDMI Video Splitter
1 - Power Adapter
1 - User Manual
