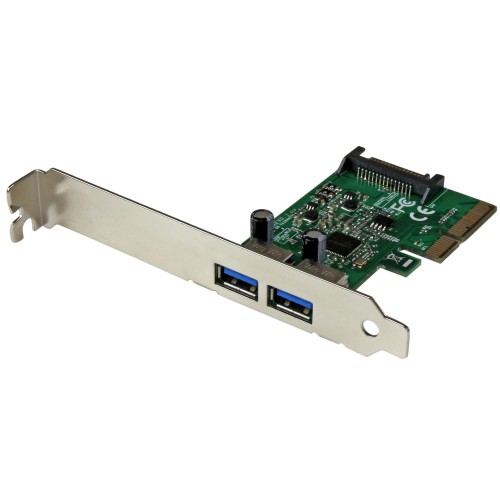

StarTech.com Carte contrôleur PCI Express à 2 ports USB 3.1 Gen 2 (10Gb/s) - Adaptateur PCIe 2 ports USB-A (PEXUSB312A3)
UGS: PEXUSB312A3
Options
Description du produit
This USB 3.1 card prepares you for the next generation of USB performance, adding two USB-A ports to your desktop with a combined bandwidth up to 10Gbps. Now you can access USB 3.1 Gen 2 peripherals at twice the speed of traditional USB 3.0 (USB 3.1 Gen 1) devices.
With greater bandwidth you can save time and avoid the performance bottlenecks often associated with other connectivity technologies.
Faster USB performance
By adding 10Gbps USB ports to your computer, you can harness the speed of USB 3.1 Gen 2 and rest assured you’re ready for both current and future high-bandwidth USB-A devices.
With higher data throughput, this PCI Express USB 3.1 card is a necessity for external hard drives, hard drive enclosures, and many other USB 3.1 peripherals. Plus, the USB card integrates a SATA power connector to support high-powered devices, making it ideal for use with large external storage solutions. (The card requires a connection to your computer's SATA power connector.)
For more flexibility, you can couple the card with a USB-C to USB-A Cable (USB31AC1M) and connect your USB Type-C™ devices.
Compatible with older USB devices
Connecting older peripherals isn’t a problem. This versatile USB 3.1 Gen 2 (10Gbps) card is backward compatible with legacy USB 3.0/2.0 devices that use the common USB Type-A port, so you can eliminate the added expense and aggravation of purchasing new devices.
Easy to install, in virtually any Windows based PC
The USB 3.1 card offers hassle-free installation with no additional software or drivers required in natively supported Windows® 10, 8.1, and 8 operating systems. Plus, the high-quality card includes both standard-profile and low-profile/half-height brackets, making it easy to install in full or small form-factor PCs or servers.
The PEXUSB312A is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Applications
- Upgrade an older PCIe based desktop from USB 3.0/2.0 to USB 3.1 Gen 2 (10Gbps)
- Expand the USB capabilities of your system, or install the card as a vital hardware component when building a new PC
- Ideal for backing up files, video editing, and data recovery using high-bandwidth USB 3.1 Gen 2 external storage solutions
- Connect your legacy USB devices to your computer
Compatibility
Windows Server® 2008 R2, 2012, 2016
Mac OS X® 10.9 to 10.10
Linux® 3.5 to 4.11.x LTS version only
Specifications
| Warranty Information | Warranty | 2 Years |
|---|---|---|
| Connector(s) | 1 - Connector Type(s) | PCI Express x4 |
| 1 - Internal Ports | SATA Power (15 pin) | |
| 2 - External Ports | USB 3.1 USB Type-A (9 pin, Gen 2, 10 Gbps) | |
| Environmental | Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) | |
| Humidity | 5~95% RH (Non-condensing) | |
| Hardware | Ports | 2 |
| Interface | USB 3.1 Gen 2 | |
| Bus Type | PCI Express | |
| Card Type | Standard Profile (LP bracket incl.) | |
| Port Style | Integrated on Card | |
| Industry Standards | USB 3.1 Specification Rev. 1.0 USB Specification Rev. 2.0 PCI Express Base Specification Rev. 3.0 Intel xHCI Specification Rev. 1.1 UASP (USB Attached SCSI Protocol) Rev. 1.0 |
|
| Chipset ID | ASMedia - ASM1142 | |
| Packaging Information | Shipping (Package) Weight | 3.5 oz [100 g] |
| Package Length | 6.3 in [16 cm] | |
| Package Width | 5.1 in [13 cm] | |
| Package Height | 1.2 in [30 mm] | |
| Performance | Maximum Data Transfer Rate | 10Gbps |
| Type and Rate | USB 3.1 Gen 2 - 10 Gbit/s | |
| UASP Support | Yes | |
| MTBF | 50,000 Hours | |
| Physical Characteristics | Product Length | 3.5 in [90 mm] |
| Product Width | 0.7 in [18 mm] | |
| Product Height | 4.7 in [12 cm] | |
| Weight of Product | 1.8 oz [50 g] | |
| Software | OS Compatibility | Windows® 7, 8, 8.1, 10 Windows Server® 2008 R2, 2012, 2016 Mac OS X® 10.9 to 10.10 Linux® 3.5 to 4.11.x LTS version only |
| Special Notes / Requirements | System and Cable Requirements | PCI Express enabled computer or server with a PCI Express x4 slot or higher (x8, x16) |
| SATA power connector | ||
| Note | The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5Gbps. PCI Express Gen 2.0 max throughput is 5Gbps. PCI Express Gen 3.0 max throughput is 10Gbps. | |
| The available bandwidth (10Gbps) is shared equally between the two ports. | ||
| What's in the Box | 1 - Included in Package | 2-port USB 3.1 gen 2 card |
| low-profile bracket | ||
| instruction manual |
