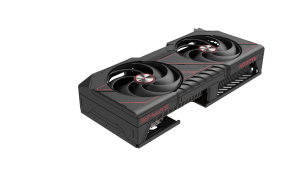

Sapphire PULSE Radeon RX 9070 16GB GDDR6 PCIe 5.0 x16 2xHDMI/2xDP Carte Vidéo (11349-03-20G)

• #SKU#: 11349-03-20G SAPPHIRE PULSE AMD Radeon™ RX 9070 GPU with 16GB memory, AMD RDNA™ 4 architecture, DisplayPort™ 2.1a

GPU

AMD Radeon™ RX 9070 Graphics Card
AMD RDNA™ 4 Architecture

Engine Clock

• Boost Clock: Up to 2520 MHz
• Game Clock: Up to 2070 MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

3584

Compute Units

56 CUs (3rd Gen RT + 2nd Gen AI Accelerators)

Infinity Cache

64MB

Ray Accelerators

56

AI Accelerator

112

Memory Size/Bus

16GB/256 bit GDDR6

Memory Clock

20 Gbps Effective

Displays

Maximum 4 Displays

Resolution

• HDMI®: 7680×4320
• DisplayPort™ 2.1a: 7680×4320

Interface

PCI-Express 5.0 x16

Output

• 2x HDMI®
• 2x DisplayPort™ 2.1a

BIOS Support

• UEFI

Game Index

4K

Sapphire Features

• Honeywell PTM7950 Thermal Interface Material (TIM)
• AeroCurve Fan Blade
• Free Flow
• FrameDefense
• Integrated Cooling Module
• Dual-X Cooling Technology
• High TG Copper PCB
• Optimized Composite Heatpipes
• Metal Backplate
• Two-Ball Bearing Fans
• 12-Phase Digital Power Design
• Fuse Protection
• Intelligent Fan Control
• Precision Fan Control
• TriXX Supported
• TriXX Boost

AMD Features

• AMD RDNA™ 4 Architecture
• 56 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
• AMD HYPR-RX with AFMF 2
• AMD FidelityFX™ Super Resolution 4 with AI Upscaling
• DisplayPort™ 2.1a
• AMD Radiance Display™ Engine
• AMD Fluid Motion Frames 2 technology
• AMD Radeon™ Anti-Lag 2 technology
• AV1 Encode/Decode
• AMD FidelityFX™ technologies
• Microsoft® DirectX® 12 Ultimate
• AMD Noise Suppression
• AMD Freesync™ technology
• 16 GB of GDDR6 on 256-bit Memory Bus
• AMD smart technologies
• AMD Software: Adrenalin Edition™ application

Cooler Type

• Dual-X Cooling
• AeroCurve Fan Blade
• Free Flow
• Integrated Cooling Module
• High TG Copper PCB
• Optimized Composite Heatpipes
• Two-Ball Bearing

Form Factor

2.5 slot, ATX
Dimension: 280(L)X 120.25(W)X 51.5 (H)mm

Power Consumption

220W Typical Board Power

OS

Linux®, Windows® 10, and Windows 11. 64-bit  operating system required

System Requirement

• Minimum 650 Watt Power Supply
• 2 x 8-pin Power Connector.
• PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
• Minimum 8GB of system memory. 16GB recommended.
