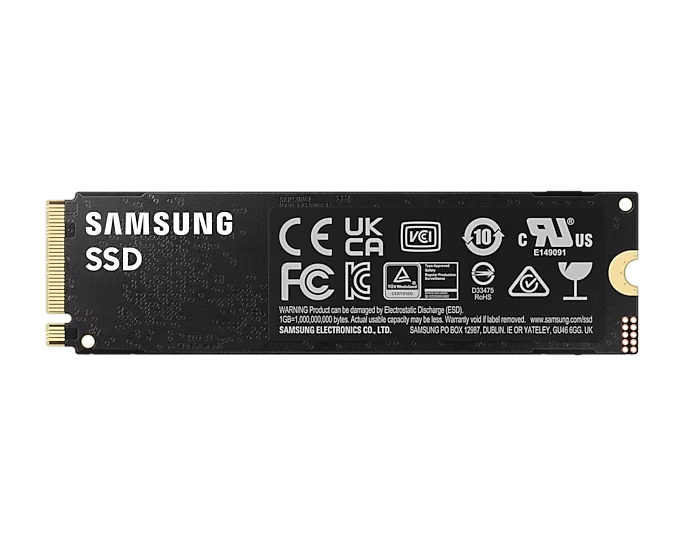

Samsung 990 PRO 4TB NVMe PCIe 4.0 x4 80mm M.2 SSD (MZ-V9P4T0B/AM)

General Feature

• ApplicationClient PCs, Game Consoles

• Capacity4,000 GB (1 GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

• Form FactorM.2 (2280)

• InterfacePCIe Gen 4.0 x4, NVMe 2.0

• Dimension (WxHxD)80 x 22 x 2.3 mm

• WeightMax 9.0 g

• Storage MemorySamsung V-NAND TLC

• ControllerSamsung in-house Controller

• Cache MemorySamsung 4 GB Low Power DDR4 SDRAM

Special Feature

• TRIM SupportSupported

• S.M.A.R.T SupportSupported

• GC (Garbage Collection)Auto Garbage Collection Algorithm

• Encryption SupportAES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

• WWN SupportNot supported

• Device Sleep Mode SupportYes

Performance

• Sequential ReadUp to 7,450 MB/s * Performance may vary based on system hardware & configuration

• Sequential WriteUp to 6,900 MB/s * Performance may vary based on system hardware & configuration

• Random Read (4KB, QD32)Up to 1,600,000 IOPS * Performance may vary based on system hardware & configuration

• Random Write (4KB, QD32)Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration

• Random Read (4KB, QD1)Up to 22,000 IOPS * Performance may vary based on system hardware & configuration

• Random Write (4KB, QD1)Up to 80,000 IOPS * Performance may vary based on system hardware & configuration

Environment

• Average Power Consumption (system level)*Average: 6.5 W*Maximum: 8.6 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration

• Power consumption (Idle)Max. 55 mW * Actual power consumption may vary depending on system hardware & configuration

• Allowable Voltage3.3 V ± 5 % Allowable voltage

• Reliability (MTBF)1.5 Million Hours Reliability (MTBF)

• Operating Temperature0 - 70 ℃ Operating Temperature

• Shock1,500 G & 0.5 ms (Half sine)

Accessories

• Installation KitNot Available

Software

• Management SWMagician Software for SSD management

Warranty

• 5-year Limited Warrantyor 2400 TBW Limited Warranty
