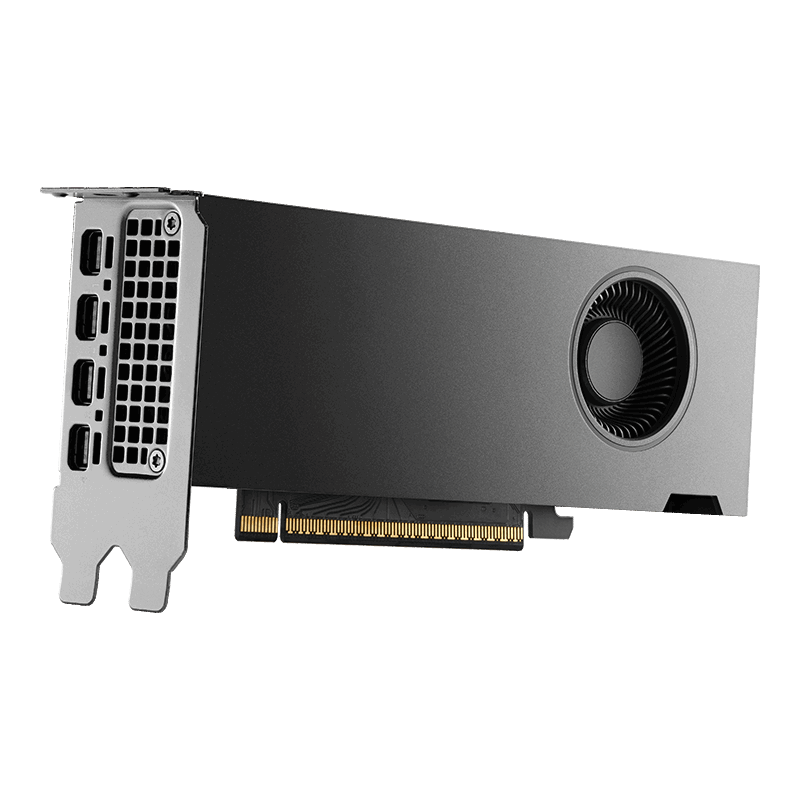

PNY NVIDIA RTX PRO 4000 Blackwell SFF Edition 24GB GDDR7 ECC PCIe 5.0 x8 4xmDP Carte Vidéo (VCNRTXPRO4000BLP-PB)

The NVIDIA RTX PRO™ 4000 Blackwell SFF Edition combines next-gen RT Cores, Tensor Cores, and CUDA® cores with 24GB of GDDR7 memory for the ultimate performance in a compact design.

• Features
  • NVIDIA Blackwell Architecture
  • 24 GB GDDR7 with ECC
  • 280 Gen 5 Tensor Cores
  • 70 Gen 4 RT Cores
  • 8,960 CUDA® Cores
  • 70 W Max Power Consumption

Specifications

Product

NVIDIA RTX PRO 4000 Blackwell SFF Edition

PNY Part Numbers

VCNRTXPRO4000BLP-PB

Architecture

NVIDIA Blackwell Architecture

Foundry

TSMC

Process Size

4N NVIDIA Custom Process

Die Size

378 mm2

Transistors

45.6 billion

CUDA Parallel Processing cores

8960

Single-Precision Performance1

24 TFLOPS

Tensor Performance1

770 AI TOPS2

RT Core Performance1

73 TFLOPS

GPU Memory

24 GB GDDR7 with ECC

Memory Interface

192-bit

Memory Bandwidth

432 GB/s

Maximum Power Consumption

70W

Graphics Bus

PCI Express 5.0 x83

Display Connectors

mDP 2.1b (4)3

Form Factor

2.7” H x 6.6” L, HHHL Dual Slot

Product weight with ATX Bracket

.339 kg

Product weight with Low Profile Bracket

.327 kg

Thermal Solution

Blower Active Fan

NVIDIA 3D Vision and 3D Vision Pro

Support via 3-pin mini DIN

Frame lock Compatible

(with RTX PRO Sync)

Power Connector

N/A

NVENC | NVDEC | JPEG

2x | 2x | 1x

Performance numbers may be subject to change until product availability.

1Peak rates are based on GPU boost clock.
2Theoretical FP4 TOPS using the sparsity feature.
3Uses full length PCIe interface.

System Requirements

System Requirements

• Intel Core i5, i7, i9, or Xeon processor or later
• AMD Ryzen or Epyc class processor or later
• PCI Express 4.0 x16 (preferred) expansion slot
• System memory greater than or equal to GPU memory, twice the GPU memory recommended
• Internet connection for driver installation
• DisplayPort 1.4a (preferred), HDMI®, or DVI-compatible display(s)

Supported Platforms

• Microsoft Windows 11 (64-bit)
• Microsoft Windows 10 (64-bit)
• Red Hat Enterprise Linux 7.x
• SUSE Linux Enterprise Desktop 15.x
• Fedora 31
• Ubuntu 18.04
• FreeBSD 11.x
• Solaris 11

Package Contains

• NVIDIA RTX PRO 4000 SFF Blackwell professional graphics card
• ATX (full-height) bracket attached and LP (low-profile) bracket in the box
• 1x mDP to DP NVIDIA Certified Latching Adapter
