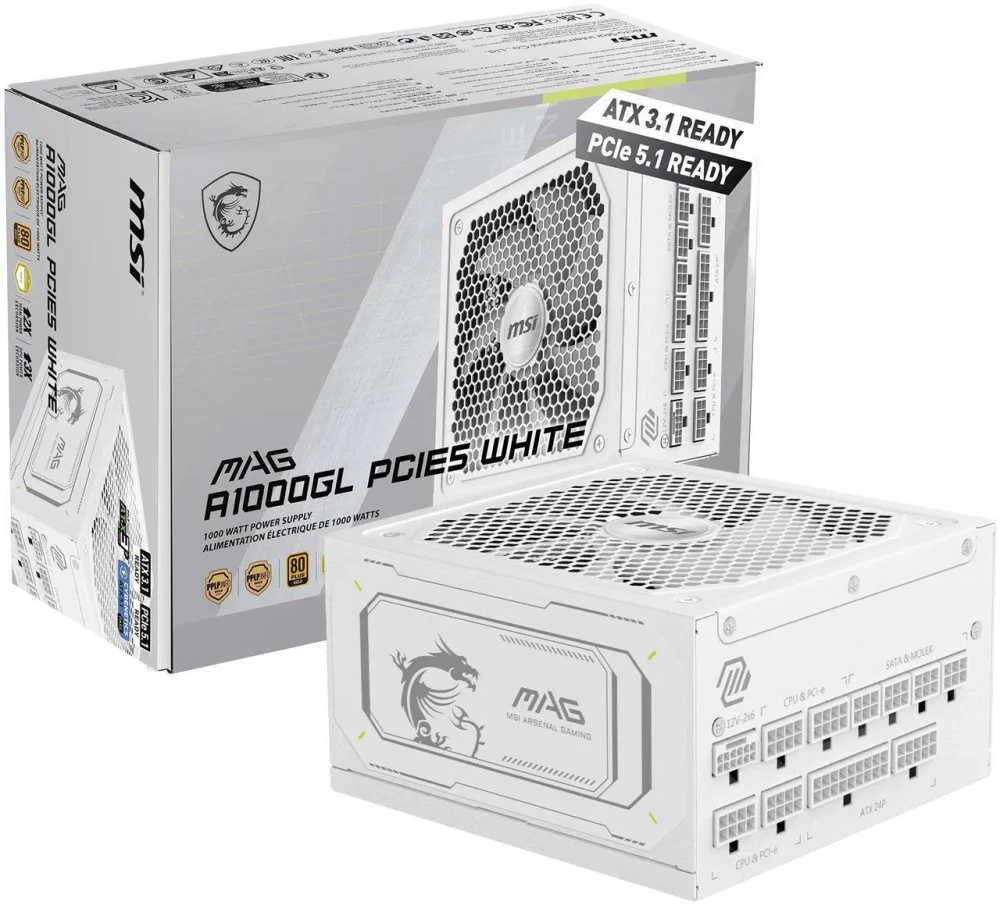

MSI MAG A1000GL PCIE5 Blanc 1000W 80 PLUS Gold ATX 3.1 PCIe 5.1 Alimentation Modulaire Complète (MAGA1000GLPCIE5WT)
UGS: MAGA1000GLPCIE5WT
Options
Description du produit
Le bloc d'alimentation MAG A1000GL PCIE5 dispose d'un port de sortie compatible avec PCIe 5.0 et Intel PSDG (Power Supply Design Guide) ATX 3.0. De plus, ce bloc d'alimentation peut supporter jusqu'à 2x l'excursion de puissance totale et 3x l'excursion de puissance du GPU.
Caractéristiques principales :
- Compatible ATX 3.0, connecteur PCIe 5.0 natif
- Prise en charge des cartes graphiques NVIDIA® GeForce RTX™ série 40
- Conception entièrement modulaire, câbles plats
- Certifié 80 PLUS Gold (jusqu'à 90% d'efficacité)
- Condensateur principal à 105°C
- Ventilateur à roulement dynamique fluide (FDB) de 135 mm
- Protection de niveau industriel : OVP, OCP, SCP, OPP, UVP, OTP
Spécifications Techniques :
| Caractéristique | Spécification |
|---|---|
| Efficiency Rating | 80 PLUS Gold (up to 90%) |
| Modular | Yes (fully modular) |
| Fan Size | 135 mm |
| Fan Bearing | Fluid Dynamic Bearing |
| Dimensions (DxWxH) | 150 x 150 x 86 mm |
| PFC Type | Active PFC |
| Input Voltage Range | 100~240 VAC |
| Input Frequency Range | 47~63 Hz |
| Power Watt | 1000W |
| Protection | OCP / OVP / OPP / OTP / SCP / UVP |
Quantité de connecteurs :
| Type de connecteur | Quantité |
|---|---|
| ATX (24 pin) | 1 |
| EPS (4+4 pin) | 2 |
| PCI-E 5.0 (16 pin) | 1 (600W) |
| PCI-E (6+2 pin) | 4 |
| SATA (15 pin) | 12 |
| MOLEX (4 pin) | 4 |
| FDD (4 pin) | 1 |
