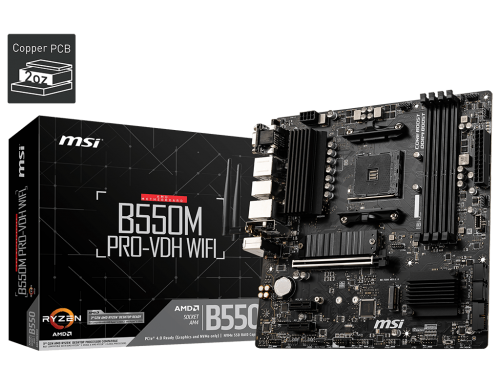

MSI B550M PRO-VDH WIFI Socket AM4 Micro-ATX AMD B550 4xDIMM DDR4 2xM.2 USB 3.2 Wi-Fi AC+BT Audio Boost Mystic Light RGB Motherboard (B550MPVDHWIFI)

MSI B550M PRO-VDH WIFI Socket AM4 Micro-ATX AMD B550 4xDIMM DDR4 2xM.2 USB 3.2 Wi-Fi AC+BT Audio Boost Mystic Light RGB Carte Mère (B550MPVDHWIFI)

MSI

UGS: B550MPVDHWIFI

$152.99

Description du produit

B550M PRO-VDH WIFI

  • Support for 3rd Gen AMD Ryzen™ processors and future AMD Ryzen™ processors with BIOS update
  • Supports DDR4 Memory, up to 4400(OC) MHz
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
  • Powerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost
  • Audio Boost: Reward your ears with studio grade sound quality
  • Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.

SPECIFICATIONS

CPU

Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update

See supported processors

CHIPSET

AMD B550 Chipset

MEMORY

  • 4x DDR4 memory slots, support up to 128GB 1
    • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
    • Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
      • 1DPC 1R max speed 4400 MHZ
      • 1DPC 2R max speed 3733 MHZ
      • 2DPC 1R max speed 3866 MHZ
      • 2DPC 2R max speed 3466 MHZ
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory
  • Supports un-buffered memory
  1. Please refer www.msi.com for more information on compatible memory.

EXPANSION SLOT

  • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1
  • 2x PCIe 3.0 x1 slots
  1. The supported specification depends on installed processor.

ONBOARD GRAPHICS

  • 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz1
  • 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz1
  • 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz1
  • Maximum shared memory of 16 GB
  1. Available for the processor with integrated graphics.

STORAGE

AMD B550 Chipset

  • 4x SATA 6Gb/s ports
  • 2x M.2 slots (Key M)
    • M2_1 slot (from AMD Processor)
      • Supports PCIe 4.0/ 3.0 x4 1
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
    • M2_2 slot (from AMD B550 chipset)
      • Supports PCIe 3.0x4
      • Supports 2242/ 2260/ 2280 storage devices
  1. The supported specification depends on installed processor.

RAID

  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

AMD B550 Chipset

  • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

  • 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

AUDIO

Realtek® ALC892 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1x Realtek® 8111HN Gigabit LAN controller

INTERNAL CONNECTORS

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 3x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Serial port connector
  • 1x Chassis Intrusion connector
  • 2x 4-pin RGB LED connectors
  • 2x 3-pin RAINBOW LED connectors
  • 1xTPM module connector
  • 1x Clear CMOS jumper

BACK PANEL PORTS

  1. VGA
  2. USB 3.2 Gen 1 5Gbps Type-A
  3. Keyboard / Mouse
  4. LAN
  5. Flash BIOS Button
  6. DisplayPort
  7. HDMI
  8. USB 2.0
  9. USB 3.2 Gen 1 5Gbps Type-A
  10. Wi-Fi Antenna connectors
  11. 3x Audio jacks
B550M PRO-VDH WIFI

DIMENSIONS

  • Micro-ATX Form Factor
  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

MOUNTING

8 mounting holes

BOX CONTENT

MSI B550-A PRO box content
  1. MSI® does not guarantee the risks or damages caused by changing the cover.
  2. These pictures are for reference only and may vary without notice.
