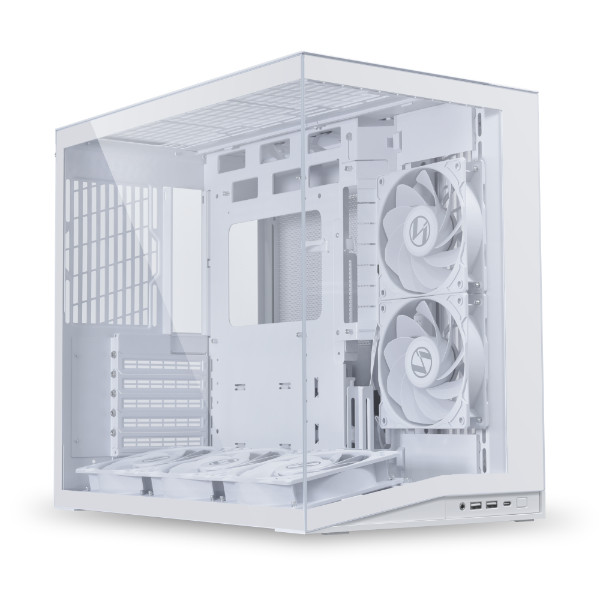

Lian Li O11 Dynamic MINI V2 Flow Blanc ATX Tour Petite Boitier (O11DMIV2FW)
UGS: O11DMIV2FW
$163.99
Options
Description du produit
O11 DYNAMIC MINI V2
- Precision resized 45.38L chassis offers expanded hardware support with a compact footprint
- Pillar-less tempered glass front and side panels for an unobstructed internal view
- 10° slanted bottom improves GPU airflow and aesthetic presentation
- Supports ATX, M-ATX, Mini-ITX, and ATX Back-Connect motherboards
- Accommodates 400mm long GPUs, 160mm tall CPU coolers, and ATX PSU (Under 200mm)
- Supports up to 360mm top radiator, 240mm side radiator, and 9 x 120mm fans
- Includes horizontal and vertical GPU anti-sag brackets for heavy GPU support
| PRODUCT NAME | O11D MINI V2 Flow | |
|---|---|---|
| MODEL NO. | O11DMIV2FX | O11DMIV2FW |
| COLOR | BLACK | WHITE |
| DIMENSIONS | 423.6mm x 273.3mm x 391.95mm (DxWxH) | |
| MATERIALS | 2mm Aluminum Panel / 1mm Mesh Panel / 4.0mm Tempered Glass | |
| MOTHERBOARD SUPPORT | Back-Connect ATX ATX / Micro-ATX / Mini-ITX | |
| EXPANSION SLOT | 5 | |
| STORAGE | Drive Cage: 2.5” SSD x 2 or 3.5” HDD x 2 Behind MB Tray: 2.5″ SSD x 2 | |
| GPU LENGTH CLEARANCE | 400 mm | |
| CPU COOLER HEIGHT CLEARANCE | 160 mm | |
| PSU SUPPORT | ATX (Under 200mm) | |
| RADIATOR SUPPORT | Top: 240mm / 280mm / 360mm (Note: 280mm radiator requires mounting motherboard one slot lower) Side: 240mm | |
| FAN SUPPORT | Top: 120mm x 3 or 140mm x 2 Side: 120mm x 2 Bottom: 120mm x 3 Rear: 120mm x 1 | |
| INCLUDED FANS | Side: Reverse blade 120mm PWM fan x2 Bottom: Reverse blade 120mm PWM fan x3 | |
| DUST FILTER | Bottom x 1 | |
| I/O PORTS | USB 3.0 x 2 USB 3.2 Type C x 1 Audio x 1 Power Button x 1 | |
| WARRANTY | Case: 1 Year Fans: 3 Years | |
