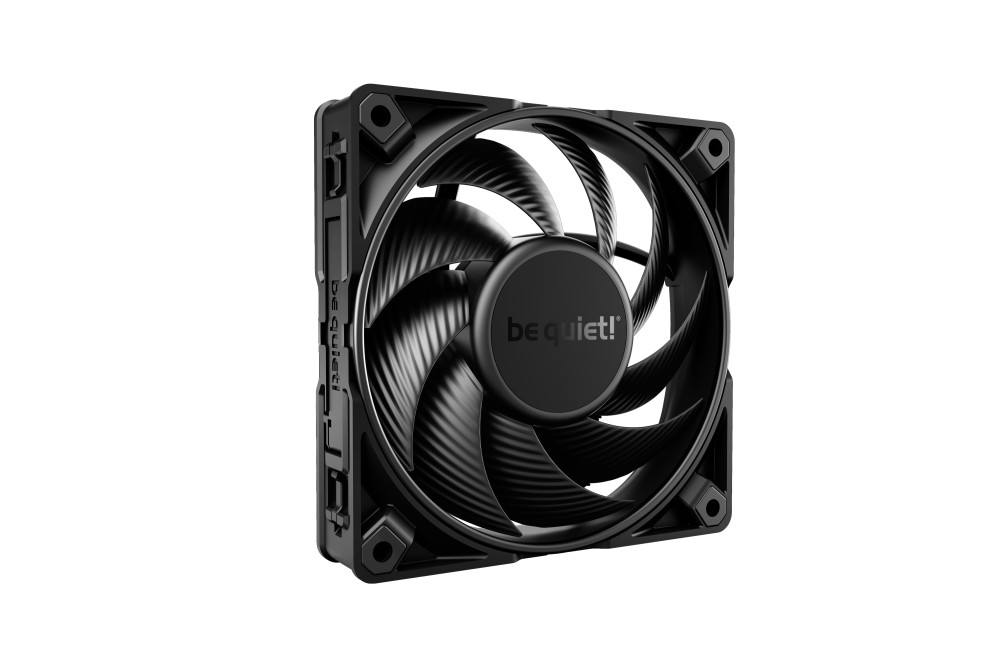

be quiet! Silent Wings Pro 4 120mm PWM Fan (BL098)
UGS: BL098
$49.99
Options
Description du produit
SILENT WINGS PRO 4
120mm PWM
Legendary silence, epic performance and features
Silent Wings Pro 4 120mm PWM is the most progressive, performant and versatile fan by be quiet!
- Optimized fan blades for the highest performance on radiators and heat sinks
- Speed switch allows changing maximum PWM speed between medium-speed, high-speed and ultra-high-speed (up to 3000 rpm)
- Small tip clearance and a fan frame with a funnel-shaped air outlet for extremely high air pressure
- Virtually inaudible operation at regular speed
- 6-pole fan motor and fluid-dynamic bearing for less vibration and very smooth operations
- Individual mounting systems for use as a case fan or with a radiator
- 5-year manufacturer warranty
General data
| Model | Silent Wings Pro 4 120mm PWM |
| Dimensions (mm) | 120 |
| Color option | Black |
| Lighting | - |
| Fan speed at 100% PWM / 12V (rpm) | 3000 |
| Noise level at 100% PWM / 12V (dB(A)) | 36.9 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 83.9 / 142.5 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 5.31 |
Infographics
Mechanical specifications
| Dimensions (L x W x H), (mm) | 120 x 120 x 25 |
| Weight incl. fixed cables (g) | 227 |
| Bearing technology | FDB |
| Motor technology | 6-pole fan motor |
| Push pin fixing | ✓ |
| Screw fixing | ✓ |
Cables / Connectors
| Daisy-chain compatible | - |
| Lighting connector | - |
| Connector | 4-pin PWM |
| Cable length (mm) | 500 |
| Cable sleeve | ✓ |
Performance / Noise
| Airflow at 100% PWM / 12V (CFM / m3/h) | 83.9 / 142.5 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 5.31 |
| Noise level at 100% PWM / 12V (dB(A)) | 36.9 |
| Lifespan (h / 25°C) | 300,000 |
| Zero RPM mode | ✓ |
Electrical specifications
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 7 - 13.2 |
| Current consumption (A) | 0.30 |
| Input current (A) | 0.30 |
| Safety current (A) | 0.30 |
| Input power (W) | 3.6 |
| Rated Current LED (A) | - |
Accessories
| 3-pin to 4-pin 12V-connector | - |
| 12V to 7V adapter | - |
| 12V to 5V adapter | - |
| Screws | 4 |
| Push pins | 4 |
| hard plastic washer | 4 |
| Others | Rubber & hard plastic & radiator mountings |
Safety certification
| Approvals | CE / RoHS / RU / UKCA / TÜV / WEEE |
Environmental directives
| RoHS | ✓ |
| WEEE | ✓ |
| Triman | ✓ |
Service
| Warranty (Years) | 5 |
| International hotline / free of charge | ✓ / DE, FR, US |
Logistics data and RRP
| Article number | BL098 |
| EAN code | 4260052188903 |
| Dimensions, package (L x W x H), (mm) | 192 x 141 x 31 |
| Gross weight, package (kg) | 0.40 |
| Pieces per packaging unit | 40 |
| Dimensions, shipping box (L x W x H), (mm) | 432 x 387 x 375 |
| Gross weight, shipping box (kg) | 17.20 |
| RRP (€) | 31.90 |
