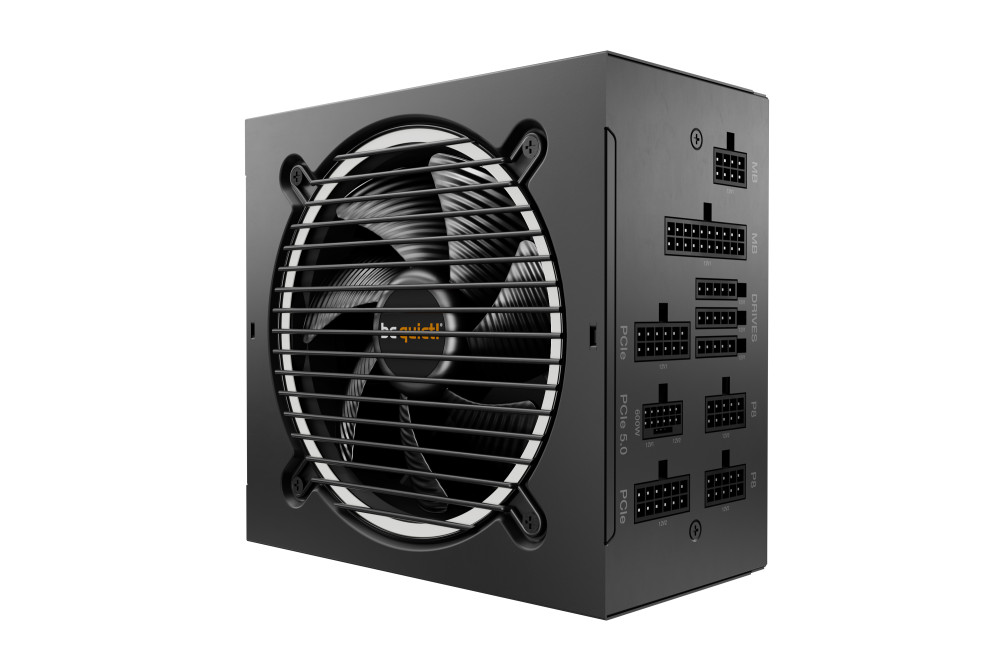

be quiet! Pure Power 12 M 1200W 80 PLUS Gold ATX 3.0 PCIe 5.0 Alimentation Modulaire Complète (BN513)
UGS: BN513
Options
Description du produit
PURE POWER 12 M
1200W
Exceptional quiet, superior features
Pure Power 12 M 1200W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 1200W offers the best combination of features with outstanding compatibility.
- 80 PLUS® Gold efficiency (up to 93.7%)
- ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
- Exceptionally silent 120mm be quiet! fan
- Advanced stability and voltage regulation thanks to LLC technology
- 2 strong 12V-rails
- Modular cables for maximum build flexibility
- One PCIe 5.0 12VHPWR 600W and 4 PCIe 6+2 connectors for
overclocked high-end GPUs - 10-year manufacturer’s warranty
General data
| Model | Pure Power 12 M 1200W |
| Continuous power (W) | 1200 |
| Peak power (W) | 1250 |
| Form factor | Version 3.0 |
| Form factor EPS 12V | Version 2.92 |
| Topology | LLC + SR + DC/DC |
| Digitally controlled | - |
| Voltage (Vac) | 110 - 240 |
| Frequency (Hz) | 50 - 60 |
| Input current (A) | 15 / 7.5 |
| Power factor at 100% load | >0.98 |
| Modern standby | ✓ |
| Power consumption in standby (W) | <0.12 |
| Average life time (h / 25°C) | >100,000 |
| Operating temperature up to (°C) | 40 |
Infographics
Efficiency
| 80 PLUS certification | Gold |
| Efficiency (%) at 230V, 2% load | 72.9 |
| Efficiency (%) at 230V, 10% load | 89 |
| Efficiency (%) at 230V, 20% load | 92.7 |
| Efficiency (%) at 230V, 50% load | 93.7 |
| Efficiency (%) at 230V, 100% load | 91.5 |
Fan and cooling technology
| Fan | Silence-optimized be quiet! fan |
| Fan size (mm) | 120 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Max. fan speed (rpm) | 2700 |
| dB(A) at 10% load | 10.1 |
| dB(A) at 20% load | 10.6 |
| dB(A) at 50% load | 10.7 |
| dB(A) at 100% load | 34.3 |
Output
| Multi-rail operation (12V rails) | 2 |
| 12V single rail operation | - |
| Overclocking key | - |
| +3.3V (A) | 22 |
| +5V (A) | 22 |
| +12V1 (A) | 55 |
| +12V2 (A) | 50 |
| +12V3 (A) | - |
| +12V4 (A) | - |
| +12V5 (A) | - |
| +12V6 (A) | - |
| -12V (A) | 0.3 |
| +5Vsb (A) | 3 |
| Max. combined power 12V (W) | 1200 |
| Max. combined power 12VHPWR (W) | 600 |
| Max. combined power 3.3V + 5V (W) | 120 |
| Hold-up time at 100% load (ms) | 19 |
| Hold-up time at 80% load (ms) | 26.8 |
| Power good signal (ms) | 100 - 150 |
Cables and connectors
| Modular cables | ✓ |
| Sleeved cables | 20+4 pin |
| Flat cables | P4+4, P8, PCIe, drives |
| Maximum cable length (cm) | 95 |
| Cable length to motherboard (cm) | 55 |
| No. of cables | 8 |
| ATX-Motherboard (20+4-pin) | 1 |
| P4+4 (CPU) | 1 |
| P8 (CPU) | 1 |
| P4 (CPU) | - |
| 12VHPWR cables | 1 |
| PCI-e 6+2-pin (GPU) | 4 |
| PCI-e 6-pin (GPU) | - |
| SATA | 6 |
| PATA | 2 |
| FDD (Floppy) | - |
Protection
| OTP (over temperature protection) | ✓ |
| OCP (over current protection) | ✓ |
| OPP (over power protection) | ✓ |
| SCP (short circuit protection) | ✓ |
| OVP (over Voltage protection) | ✓ |
| UVP (under Voltage protection) | ✓ |
| SIP (Surge & Inrush protection) | ✓ |
Safety certification
| BSMI | ✓ |
| CB | ✓ |
| CCC | ✓ |
| CE | ✓ |
| cRUus | - |
| cTUVus | ✓ |
| CU | ✓ |
| FCC | ✓ |
| RCM | ✓ |
| TÜV | ✓ |
| UKCA | ✓ |
Environmental directives
| Energy Star | 8.0 |
| ErP | ✓ |
| WEEE | ✓ |
| RoHS | ✓ |
| Triman | ✓ |
Scope of delivery
| Thumb screws | - |
| Screws | ✓ |
| Cable ties | ✓ |
| Velcro cable ties | - |
| User manual languages | CN, DE, EN, ES, FR, JP, PL, RU, TW |
| OCK slot bracket with switch / OCK jumper | - |
| SFX-to-ATX adapter bracket | - |
Casing
| Dimensions without cable (L x W x H), (mm) | 160 x 150 x 86 |
| Weight (kg) | 1.92 |
| Color | Black |
Service
| Warranty (Years) | 10 |
| Express replacement service in first year | - |
| International hotline / free of charge | ✓ / DE, FR, US |
Logistics data and RRP
| Article number | BN513 |
| EAN code | 4260052190173 |
| Dimensions, package (L x W x H), (mm) | 284 x 220 x 100 |
| Gross weight, package (kg) | 3.2 |
| Pieces per packaging unit | 4 |
| Dimensions, shipping box (L x W x H), (mm) | 426 x 298 x 243 |
| Gross weight, shipping box (kg) | 12.7 |
| RRP (€) | 199.90 |
