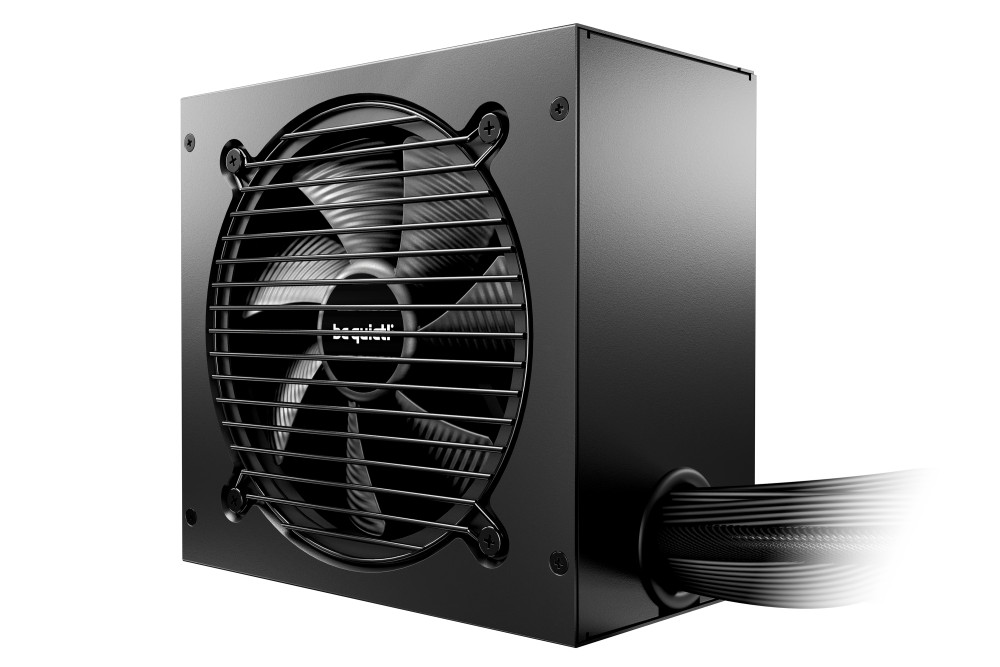

be quiet! Pure Power 12 750W 80 PLUS Gold ATX 3.1 PCIe 5.1 Alimentation (BP003US)
UGS: BP003US
Options
Description du produit
PURE POWER 12
750W
Exceptional quiet, superior features
Pure Power 12 750W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers remarkable convenience and outstanding compatibility.
- 80 PLUS® Gold efficiency (up to 92.8%)
- ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
- Exceptionally silent 120mm be quiet! fan
- Advanced stability and voltage regulation thanks to LLC technology
- One massive high-performance 12V-rail
- One PCIe 5.1 12V-2x6 600W and 3 PCIe 6+2 connectors for overclocked high-end GPUs
- 10-year manufacturer’s warranty
General data
| Model | Pure Power 12 750 W |
| Continuous power (W) | 750 |
| Peak power (W) | 820 |
| Form factor | Version 3.1 |
| Form factor EPS 12V | Version 2.92 |
| Topology | LLC + SR + DC/DC |
| Digitally controlled | - |
| Voltage (Vac) | 100 - 240 |
| Frequency (Hz) | 50 - 60 |
| Input current (A) | 10 / 5 |
| Power factor at 100% load | >0.98 |
| Modern standby | ✓ |
| Power consumption in standby (W) | <0.1 |
| Average life time (h / 25°C) | >100,000 |
| Operating temperature up to (°C) | 40 |
Infographics
Efficiency
| 80 PLUS certification | Gold |
| Efficiency (%) at 230V, 2% load | 68.4 |
| Efficiency (%) at 230V, 10% load | 88.5 |
| Efficiency (%) at 230V, 20% load | 92.1 |
| Efficiency (%) at 230V, 50% load | 92.8 |
| Efficiency (%) at 230V, 100% load | 90.7 |
Fan and cooling technology
| Cybenetics Noise Rating | - |
| Fan | Silence-optimized be quiet! fan |
| Fan size (mm) | 120 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Max. fan speed (rpm) | 1800 |
| dB(A) at 10% load | 8.7 |
| dB(A) at 20% load | 8.7 |
| dB(A) at 50% load | 8.8 |
| dB(A) at 100% load | 22.5 |
Output
| Multi-rail operation (12V rails) | 0 |
| 12V single rail operation | ✓ |
| Overclocking key | - |
| +3.3V (A) | 20 |
| +5V (A) | 20 |
| +12V1 (A) | 62.5 |
| +12V2 (A) | - |
| +12V3 (A) | - |
| +12V4 (A) | - |
| +12V5 (A) | - |
| +12V6 (A) | - |
| -12V (A) | 0,3 |
| +5Vsb (A) | 3 |
| Max. combined power 12V (W) | 750 |
| Max. combined power 12VHPWR (W) | 600 |
| Max. combined power 3.3V + 5V (W) | 120 |
| Hold-up time at 100% load (ms) | 17.0 |
| Hold-up time at 80% load (ms) | 21.1 |
| Power good signal (ms) | 100 - 150 |
Cables and connectors
| Modular cables | - |
| Sleeved cables | ✓ |
| Flat cables | ✓ |
| Maximum cable length (cm) | 55 |
| Cable length to motherboard (cm) | 60 |
| No. of cables | 8 |
| ATX-Motherboard (20+4-pin) | 1 |
| P4+4 (CPU) | P4+4 (CPU) |
| P8 (CPU) | 1 |
| P4 (CPU) | - |
| 12VHPWR cables | 1 |
| PCI-e 6+2-pin (GPU) | 3 |
| PCI-e 6-pin (GPU) | - |
| SATA | 6 |
| PATA | 1 |
| FDD (Floppy) | - |
Protection
| OTP (over temperature protection) | ✓ |
| OCP (over current protection) | ✓ |
| OPP (over power protection) | ✓ |
| SCP (short circuit protection) | ✓ |
| OVP (over Voltage protection) | ✓ |
| UVP (under Voltage protection) | ✓ |
| SIP (Surge & Inrush protection) | ✓ |
Safety certification
| BSMI | - |
| CB | ✓ |
| CCC | - |
| CE | ✓ |
| cRUus | - |
| cTUVus | ✓ |
| CU | ✓ |
| FCC | ✓ |
| RCM | - |
| TÜV | ✓ |
| UKCA | ✓ |
Environmental directives
| Energy Star | 8.0 |
| ErP | ✓ |
| WEEE | ✓ |
| RoHS | ✓ |
| Triman | ✓ |
Scope of delivery
| Thumb screws | - |
| Screws | ✓ |
| Cable ties | ✓ |
| Velcro cable ties | - |
| User manual languages | DE, EN, ES, FR, PL, RU, UA |
| OCK slot bracket with switch / OCK jumper | - |
| SFX-to-ATX adapter bracket | - |
Casing
| Dimensions without cable (L x W x H), (mm) | 160 x 86 x 150 |
| Weight (kg) | 2.6 |
| Color | Black |
Service
| Warranty (Years) | 10 |
| Express replacement service in first year | - |
| International hotline / free of charge | ✓ / DE, FR |
Logistics data and RRP
| Article number | BP003US |
| EAN code | 4260052191231 |
| Dimensions, package (L x W x H), (mm) | 320 x 133 x 210 |
| Gross weight, package (kg) | 3.0 |
| Pieces per packaging unit | 6 |
| Dimensions, shipping box (L x W x H), (mm) | 440 x 345 x 418 |
| Gross weight, shipping box (kg) | 19.2 |
| RRP (€) | 109.90 |
