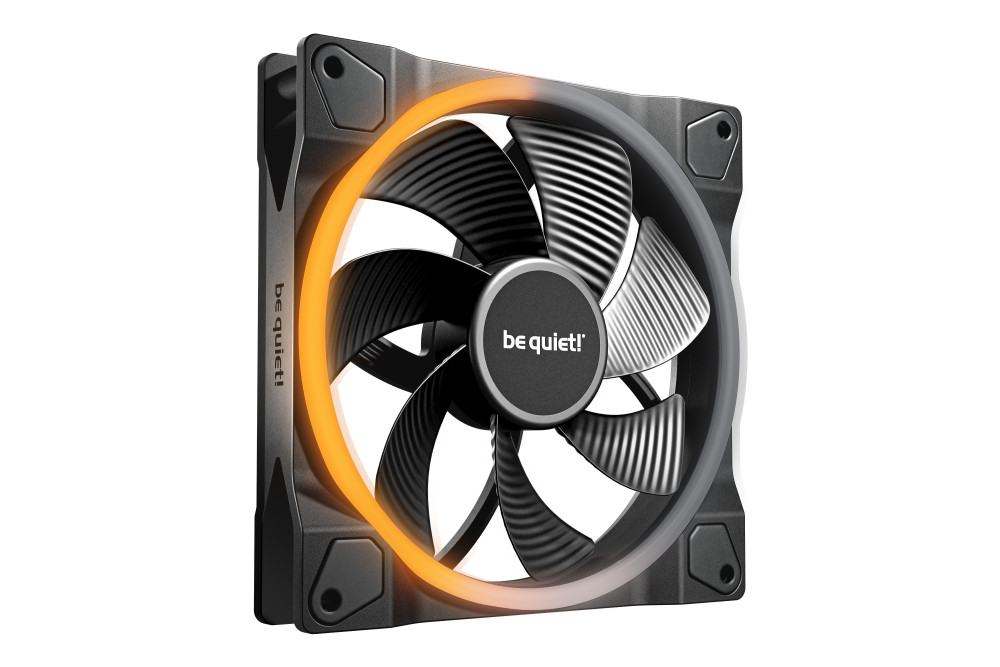

be quiet! Light Wings Reverse 140mm PWM ARGB Fan (BL134)
UGS: BL134
Options
Description du produit
LIGHT WINGS
140mm PWM Reverse Black
Impressive lighting, superior cooling
Light Wings 140mm PWM Reverse Black offers impressive illumination for a vibrant unique look, strong performance and quiet operation with efficient cooling.
- 7 silence-optimized and reversed fan blades for high airflow and low noise-generating turbulences
- Reversed fan blades are ideal as side or bottom intake
- ARGB lighting on front and rear
- Multiple colors and modes for an individual look thanks to 20 LEDs
- Very quiet operation with max. 25.5dB(A)
- Long life rifle-bearing gives an operating lifetime of 60,000 hours
- 3-year manufacturer’s warranty
General data
| Model | Light Wings 140mm PWM Reverse |
| Dimensions (mm) | 140 |
| Color option | Black |
| Lighting | ARGB LED |
| Fan speed at 100% PWM / 12V (rpm) | 1300 |
| Noise level at 100% PWM / 12V (dB(A)) | 25.5 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 51.4 / 87.3 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 1.1 |
Infographics
Mechanical specifications
| Dimensions (L x W x H), (mm) | 140 x 25 x 140 |
| Weight incl. fixed cables (g) | 241 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Push pin fixing | - |
| Screw fixing | ✓ |
Cables / Connectors
| Daisy-chain compatible | ✓ |
| Lighting connector | 5V 3-pin ARGB |
| Connector | 4-pin PWM |
| Cable length (mm) | 500 |
| Cable sleeve | - |
Performance / Noise
| Airflow at 100% PWM / 12V (CFM / m3/h) | 51.4 / 87.3 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 1.1 |
| Noise level at 100% PWM / 12V (dB(A)) | 25.5 |
| Lifespan (h / 25°C) | 60,000 |
| Zero RPM mode | - |
Electrical specifications
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 5 - 13.2 |
| Input current (A) | 0.08 |
| Safety current (A) | 0.32 |
| Input power (W) | 3.8 |
| Rated Current LED (A) | 0.67 |
Accessories
| 3-pin to 4-pin 12V-connector | - |
| 12V to 7V adapter | - |
| 12V to 5V adapter | - |
| Screws | 4 |
| Push pins | - |
| hard plastic washer | - |
| Others | - |
Safety certification
| Approvals | CE / RoHS / RU / UKCA / WEEE |
Environmental directives
| RoHS | - |
| WEEE | - |
| Triman | - |
Service
| Warranty (Years) | 3 |
| International hotline / free of charge | ✓ / DE, FR, US |
Logistics data and RRP
| Article number | BL134 |
| EAN code | 4260052192894 |
| Dimensions, package (L x W x H), (mm) | 173 x 29.5 x 153 |
| Gross weight, package (kg) | 0.33 |
| Pieces per packaging unit | 30 |
| Dimensions, shipping box (L x W x H), (mm) | 478 x 320 x 200 |
| Gross weight, shipping box (kg) | 10.50 |
| RRP (€) | 27.50 |
