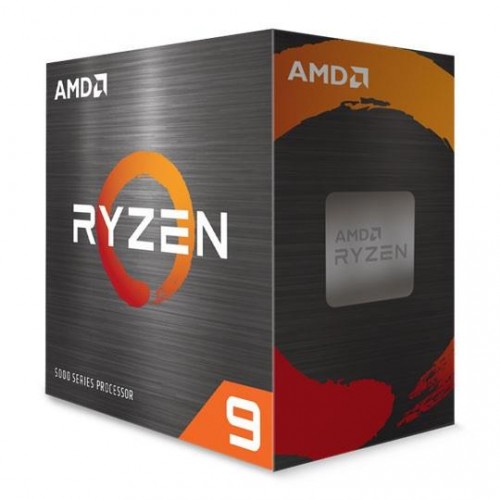

AMD Ryzen 9 5900XT 3.3/4.8GHz 16C/32T Socket AM4 105W ZEN 3 No Graphics CPU Processeur (100-100001581WOF)
UGS: 100-100001581WOF
Options
Description du produit
General Specifications
Name
AMD Ryzen™ 9 5900XT
Family
Ryzen
Series
Ryzen 5000 Series
Form Factor
Boxed Processor , Desktops
Market Segment
Enthusiast Desktop
Regional Availability
Global
Former Codename
Vermeer
Architecture
Zen 3
# of CPU Cores
16
Multithreading (SMT)
Yes
# of Threads
32
Max. Boost Clock
Up to 4.8 GHz
Base Clock
3.3 GHz
L1 Cache
1024 KB
L2 Cache
8 MB
L3 Cache
64 MB
Default TDP
105W
Processor Technology for CPU Cores
TSMC 7nm FinFET
Processor Technology for I/O Die
12nm (Globalfoundries)
CPU Compute Die (CCD) Size
74mm²
I/O Die (IOD) Size
125mm²
Package Die Count
3
Unlocked for Overclocking
Yes
CPU Socket
AM4
Supporting Chipsets
X570 , B550 , A520 , X470 , B450
CPU Boost Technology
Precision Boost 2
Instruction Set
x86-64
Supported Extensions
AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB)
Not Included
Max. Operating Temperature (Tjmax)
90°C
Launch Date
07/31/2024
*OS Support
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Connectivity
Native USB 3.2 Gen 2 (10Gbps)
4
Native USB 3.2 Gen 1 (5Gbps)
0
Native USB 2.0 (480Mbps)
0
Native SATA Ports
2
PCI Express® Version
PCIe® 4.0
Native PCIe® Lanes (Total/Usable)
24 , 20
Additional Usable PCIe Lanes from Motherboard
amd_x570
16x Gen 4
amd_x470
2x Gen 3, 8x Gen 2
NVMe Support
Boot , RAID0 , RAID1 , RAID10
System Memory Type
DDR4
Memory Channels
2
Max. Memory
128 GB
System Memory Subtype
UDIMM
Max Memory Speed
2x1R
DDR4-3200
2x2R
DDR4-3200
4x1R
DDR4-2933
4x2R
DDR4-2667
ECC Support
Yes (Requires mobo support)
Graphics Capabilities
Graphics Model
Discrete Graphics Card Required
Product IDs
Product ID Boxed
100-100001581WOF , 100-100001581WOZ
Product ID Tray
100-000001581
Key Features
Supported Technologies
AMD Zen 3 Core Architecture , AMD StoreMI Technology , AMD Ryzen™ Master Utility , AMD Ryzen™ VR-Ready Premium
