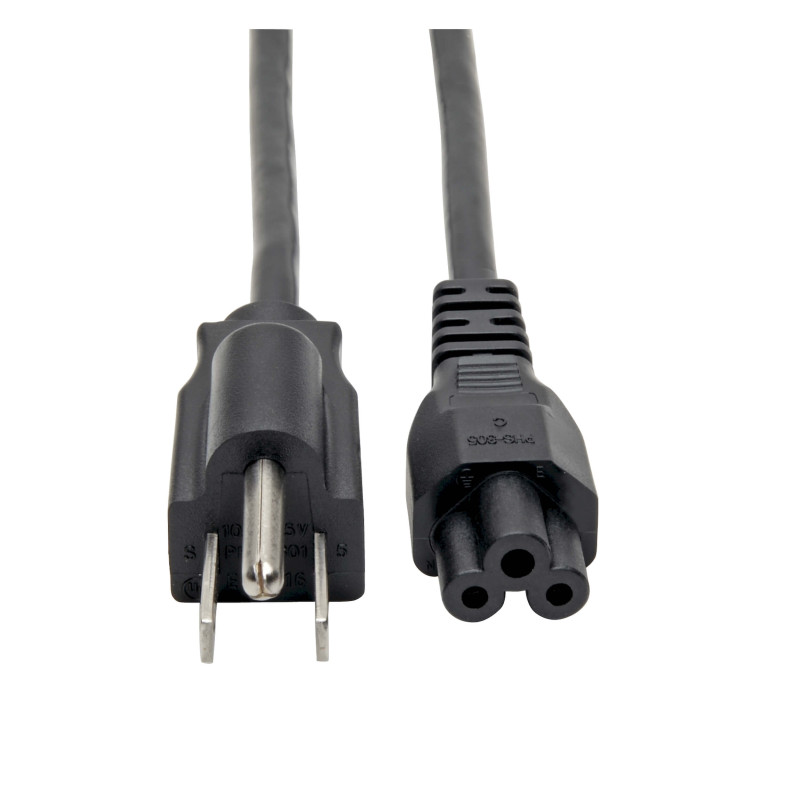

Tripp Lite series 3-Slot Power Cord, NEMA 5-15P to C5 - Laptop/Notebook, 10A, 125V, 18 AWG, 3 ft. (0.91 m), Black (P013-003)
UGS: P013-003
Options
Description du produit

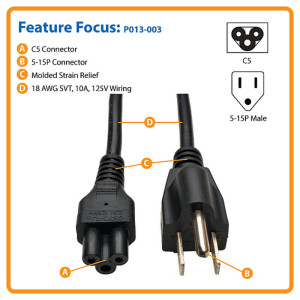

Features
Laptop Power Cable Connects Notebook Computers to an AC Outlet
This NEMA 5-15P to C5 power cord is designed for connecting a notebook computer, laptop or other device with a three-slot C6 inlet to an AC wall outlet, surge protector, UPS system or PDU. It also powers some portable projectors, desktop computers and LG LCD televisions. The three-foot length helps reduce cable clutter and minimize the risk of tripping.
Package Includes
- P013-003 3-Slot Power Cord, NEMA 5-15P to C5 - 6 ft., Black
Accessories for Power Cords and Adapters
We have a range of accessories designed to work with our Power Cords and Adapters. Check them out!
Specifications
OVERVIEW
| UPC Code | 037332185907 |
| Device Compatibility | Laptop; Computer; Projector; Monitor/HDTV; UPS; PDU |
| Country/Region | North America |
INPUT
| Maximum Input Amps | 10 |
| Voltage Compatibility (VAC) | 125 |
CONNECTIONS

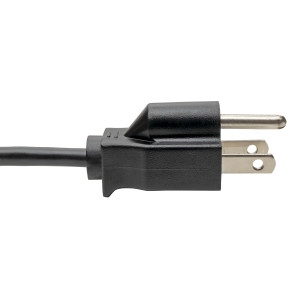

| Side A - Connector 1 | NEMA 5-15P |

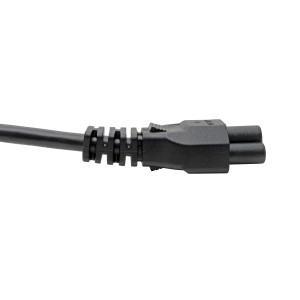

| Side B - Connector 1 | IEC-320-C5 |
PHYSICAL
| Plug Color | Black |
| Cable Jacket Color | Black |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Power Cord Jacket Type | SVT |
| Cable Outer Diameter (OD) | 6.3mm |
| Number of Conductors | 3 |
| Wire Gauge (OD - mm²) | 0.82 |
| Cable Length (m) | 0.91 |
| Shipping Dimensions (hwd / cm) | 22.50 x 32.51 x 1.27 |
| Shipping Weight (kg) | 0.11 |
ENVIRONMENTAL
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Operating Humidity Range | 10% to 65% RH |
| Storage Humidity Range | 10% to 65% RH |
STANDARDS & COMPLIANCE
| Product Certifications | cUL Listed; UL Listed |
| Product Compliance | RoHS |
WARRANTY & SUPPORT
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
