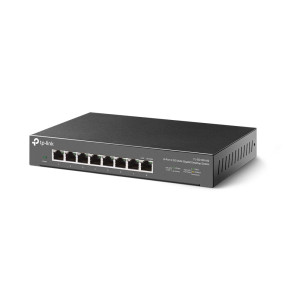

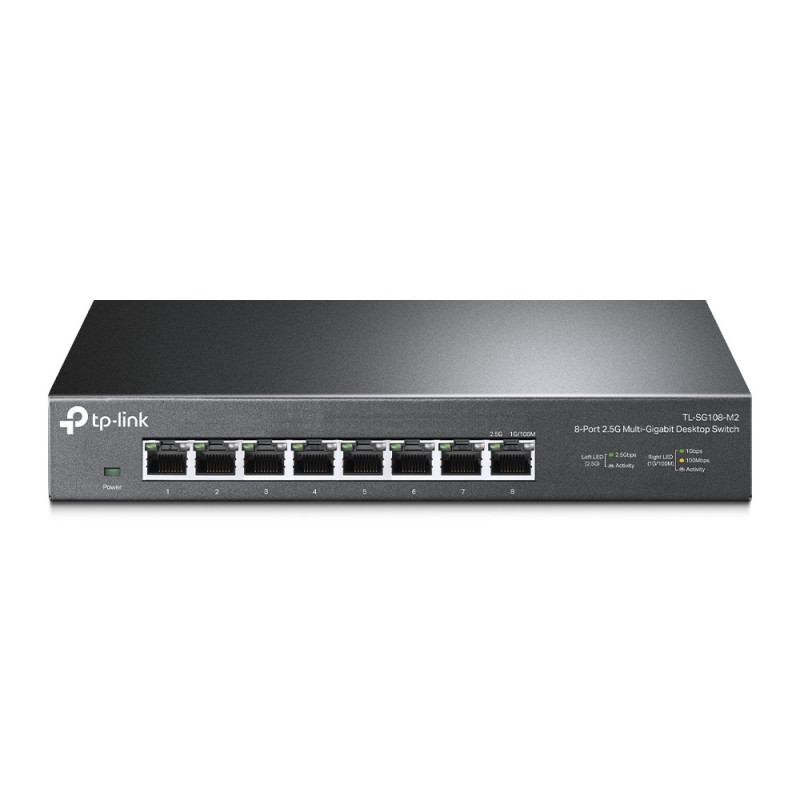

TP-Link TL-SG108-M2 8-Port 2.5G Desktop Switch
UGS: TL-SG108-M2
Options
Description du produit
TL-SG108-M2
8-Port 2.5G Desktop Switch
- Eight 2.5 Gbps Ports. 8× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 40 Gbps of switching capacity.

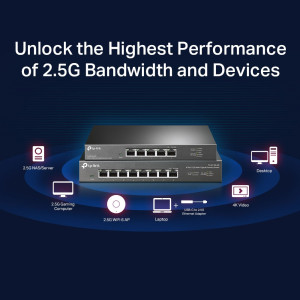

- Super-Fast Connections. Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 6 AP, 4K video, and more.
- Ideal for Various Scenarios. Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations,
- Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.**
- Silent Operation. Industry-leading fanless design ensures silent operation, ideal for any home or business.
- Plug and Play. Allows for easy deployment without the need for a technician.
- Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz |
| Interface | 8× 100Mbps/1Gbps/2.5Gbp Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 12 VDC / 1.5 A) |
| LED Indicator | • System Power: 1 • Link/Act Indicators: 8, 1 indicator per port built into each RJ-45 port |
| Dimensions ( W x D x H ) | 8.9×5.2×1.4 in (226×131×35 mm) |
| Max Power Consumption | 15.65 W |
| Max Heat Dissipation | 53.40 BTU/h |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 40 Gbps |
| Packet Forwarding Rate | 29.8 Mpps |
| MAC Address Table | 16 K |
| Packet Buffer Memory | 1.5 Mb |
| Jumbo Frame | 10 KB |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | • 802.3X Flow Control • 802.1p/DSCP QoS |
| Transfer Method | Store and Forward |
| OTHERS | |
|---|---|
| Certification | CE, FCC ,RoHS |

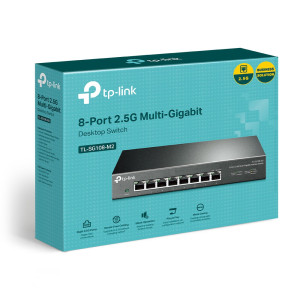

| Package Contents | • 8-Port 2.5G Multi-Gigabit Desktop Switch TL-SG108-M2 • Power Adapter • Installation Guide • Rubber Feet |
| Environment | • Operating Temperature: 0–40 °C (32–104 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
For additional version information, please go to the support page.
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The wireless speeds listed here are the maximum theoretical data rates. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
‡Video transfer estimates are based on the minimum time needed when all relevant devices are performing at their maximum possible capacity. Actual transfer time is not guaranteed and will vary as a result of environmental factors, network conditions, and client limitations.
*2.5× faster speeds refer to the speeds compared to standard 1G ports. The actual speeds may vary due to cable quality and type, client limitations, and environmental factors.
**Only Cat5e or better cables do not need to be replaced.
