6-IN-1 USB-C HUB: This USB C multiport adapter features 4K 60Hz HDMI (HDR10), 3x USB-A 3.2/3.1 Gen 1 (5Gbps), Gigabit Ethernet, Shared USB-C Power/USB 2.0 Data with 100W USB Power Delivery Pass-Through
4K 60HZ HDMI VIDEO WITH DP 1.4 ALT-MODE: USB-C Multiport Adapter features HDMI 4K 60Hz (HDR) uncompressed video; Ideal for high-quality presentations/image files for office, boardroom or work from home applications; 4K 30Hz on DP 1.2 Alt-Mode host devices
EXTRA LONG CABLE: 12" (30 cm) attached cable for extended reach to reduce port/connector strain on 2-in-1 devices like Surface Pro 7/8, iPad Pro, HP Elite x2/laptops on riser stands; Ideal for on-the-go travel use in office/home office/shared workspaces
RELIABLE PERFORMANCE: USB bus powered or via external USB-C power adapter; 100W Power Delivery 3.0 pass through w/ 15W reserved for adapter to avoid video flickering, device dropouts or overdrawing power common in other hubs; Up to 85W for laptop charging
COMPATIBILITY: Mini dock is compatible with USB-C laptops, Ultrabooks and Chromebooks, and Thunderbolt 3/4 laptops from HP, Dell, Lenovo; MacBooks (Intel & M1 Pro/Max processors) and Surface; works with Windows, macOS, iPadOS, Android, Linux & Chrome OS
CONNECTIVITY TOOLS: Provided with the portable all-in-one USB Type C docking station adapter, this application improves performance and security; Featuring USB Event Monitoring & Windows Layout utilities

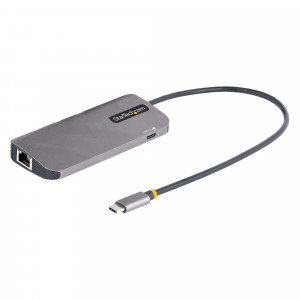

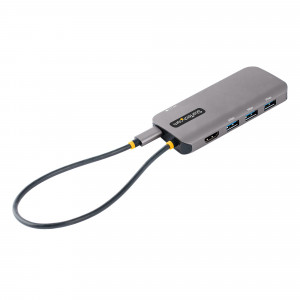

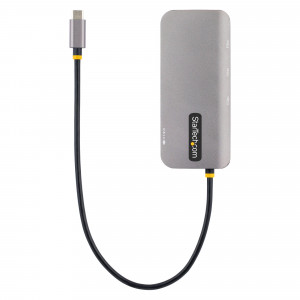

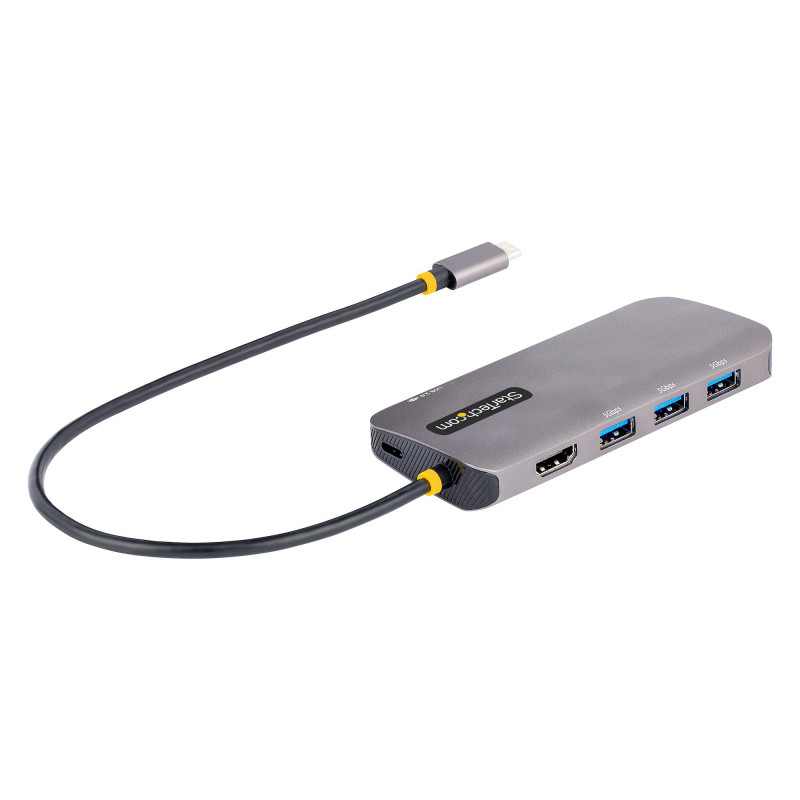

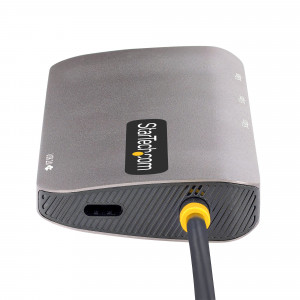

This USB-C™ Multiport Adapter with DP 1.4 Alt Mode supports 4K 60Hz HDMI® (HDR) and turns your MacBook, Dell XPS, or other USB-C laptop or tablet into a workstation, anywhere you go. The USB Type-C™ Multiport Adapter features one 4K HDMI video output, three USB 3.2 Gen 1 Type-A (5Gbps) ports, and a Gigabit Ethernet port, all through one connection to your laptop's USB-C, USB4, or Thunderbolt 3/4™ port. In addition, it offers advanced charging and flexibility through a shared USB-C Power Delivery 3.0 and Data port; this port can be used to connect peripherals, whenever a power source is not connected, at USB 2.0 data transfer speeds (480Mbps). The Multiport Adapter features an extra-long attached 12-inch (30 cm) host cable - for an extended reach, to offer more setup flexibility.

Enhance Productivity

The portable docking station enables the connection of a 4K 60Hz HDMI monitor (4096 x 2160p), or an ultrawide monitor, to your laptop, in order to create a powerful workstation.

DP Alt -Mode	Maximum Resolution
DP 1.2 Alternate Mode	Up to 4K 30Hz
DP 1.4 Alternate Mode	Up to 4K 60Hz

Connect Your USB Devices

The USB-C to USB 3.2 Gen 1 hub features three USB-A (5Gbps) ports for connecting your USB devices.

Multiple Use Cases

A versatile dock solution for use at your office desk, home office, hotel desk, or in the boardroom, it is portable enough to be carried in your bag or backpack for mobile use. This lightweight USB-C Adapter can be bus-powered. Alternatively, connect your laptop's USB-C power adapter to charge your laptop and USB peripherals.

Charge Your Laptop

With support for USB Power Delivery 3.0 pass through (up to 100W), the USB Type-C Multiport Adapter allows you to power and charge your laptop, when connected to a USB-C power source. PD 3.0 features Fast Role Swap (FRS) to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).

Reliable Network Connectivity

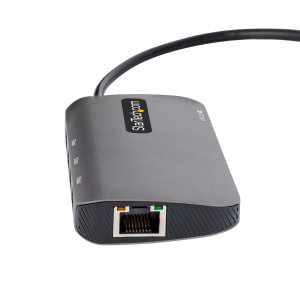

The Gigabit Ethernet port ensures reliable wired network access, with support for PXE Boot and WoL.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

Advanced Windows Layout Utility: Setup and save custom windows layouts.
MAC Address Pass-Through Utility: Improve network security.
USB Event Monitoring Utility: Track and log connected USB devices.
Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools

The 127B-USBC-MULTIPORT is backed by a StarTech.com 3-year warranty and a lifetime of free technical support.

Applications

Home office/IT deployment, ideal for traveling between the home and office

Compatibility

Windows® 7, 8, 8.1, 10, 11
macOS 10.11 to 10.15, 11.0, 12.0, 13.0
iPadOS
Android™
Linux® 3.5.x and up - LTS Versions only
Chrome OS™

Specifications

Warranty Information

Warranty

3 Years

Package Quantity

Connector(s)

External Ports

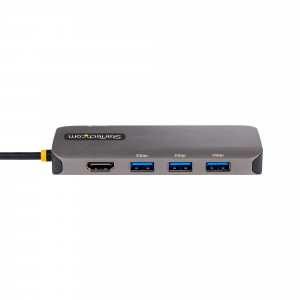

1 - HDMI (19 pin)

3 - USB 3.2 Type-A (9 pin, Gen 1, 5Gbps)

1 - RJ-45

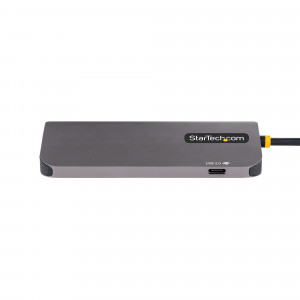

1 - USB Type-C (Power Delivery + Data, 24 Pin, 480Mbps)

Host Connectors

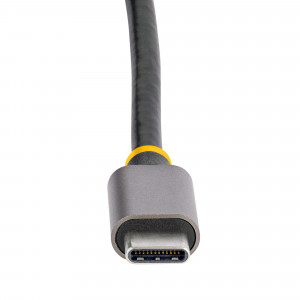

1 - USB 3.2 Type-C (24 pin, Gen 1, 5Gbps)

Environmental

Operating Temperature

0°C to 70°C (32°F to 158°F)

Storage Temperature

-10°C to 70°C (14°F to 185°F)

Humidity

5~90% RH (Non-condensing)

Hardware

4K Support

Yes

Fast-Charge Port(s)

Displays Supported

Interface

USB 3.2 Gen 1

Bus Type

USB-C

Industry Standards

HDMI 2.0

HDR10

DisplayPort 1.4

USB 3.2 Gen 1 (5Gbps)

USB Power Delivery Specification Rev. 3.0

IEEE 802.3

IEEE 802.3u

IEEE 802.3ab

Chipset ID

VIA - VL102

VIA - VL817

Realtek - RTL8153

Realtek - RTD2172A

Terminus Tech - FE1.1S

Indicators

LED Indicators

1 - Network Connection LED (Green) - Solid Indicates Active Network Connection

1 - Network Activity LED (Amber) - Blinking Indicates Network Data Transfer

Packaging Information

Package Length

5.6 in [14.2 cm]

Package Width

6.7 in [17.0 cm]

Package Height

1.2 in [3.0 cm]

Shipping (Package) Weight

4.6 oz [130.0 g]

Performance

Maximum Data Transfer Rate

5Gbps

Maximum Digital Resolutions

DisplayPort 1.4
16:9 Aspect Ratio: 4096x2160 60Hz
21:9 Aspect Ratio: 3440x1440 60Hz

DisplayPort 1.2
16:9 Aspect Ratio: 4096x2160 30Hz
21:9 Aspect Ratio: 3440x1440 30Hz

Type and Rate

USB 3.2 Gen 1 - 5 Gbit/s

UASP Support

Yes

Compatible Networks

10/100/1000 Mbps

PXE

Yes

Full Duplex Support

Yes

Physical Characteristics

Color

Space Gray

Product Length

2.0 in [5.0 cm]

Product Width

16.8 in [42.7 cm]

Product Height

0.5 in [1.2 cm]

Weight of Product

2.5 oz [70.0 g]

Material

Aluminum

Power

Power Source

Bus Powered and Host USB-C Power Adapter

Power Delivery

100W

Power Consumption (In Watts)

15W

Software

OS Compatibility

Windows® 7, 8, 8.1, 10, 11
macOS 10.11 to 10.15, 11.0, 12.0, 13.0
iPadOS
Android™
Linux® 3.5.x and up - LTS Versions only
Chrome OS™

Special Notes / Requirements

System and Cable Requirements

A host device with an available USB-C port (to ensure full adapter functionality, the host device's USB-C port must support USB Power Delivery 2.0 and DP alt mode).

Optional: USB-C power adapter (for example, your laptop's USB-C based power adapter).

Note

Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure your host device's USB-C port supports USB Power Delivery and DP alt mode.

The adapter can connect to a host laptop's USB-C port that doesn't support USB Power Delivery. In this configuration, pass-through power will be unavailable.

A 4K-capable display is required to achieve 4096 x 2160p/3840 x 2160p resolution.

A 4K-capable computer is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K).

USB 3.2 Gen 1 (5Gbps) is also known as USB 3.1 Gen 1 (5Gbps) and USB 3.0 (5Gbps).

Your laptop may have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information regarding Power Delivery, consult the manufacturer of your hardware.

What's in the Box

Included in Package

1 - USB-C Multiport Adapter

1 - Quick-Start Guide
