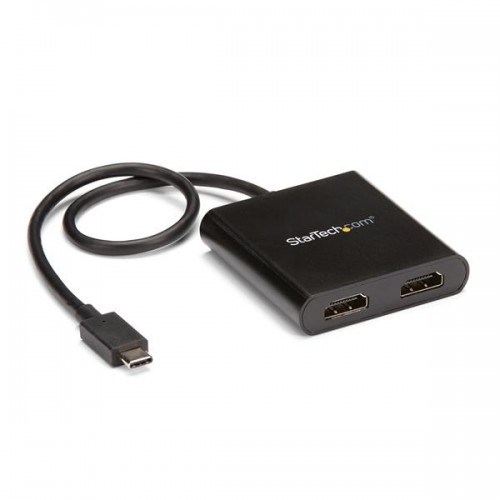

StarTech.com 2-port USB-C to HDMI MST Hub - 4K 30Hz (MSTCDP122HD)

StarTech.com Splitter multi-écrans USB-C vers 2x HDMI - Hub MST à 2 ports (MSTCDP122HD)

STARTECH.COM

UGS: MSTCDP122HD

$63.99

Description du produit

  • Maximize your productivity by connecting two displays to your computer using the dual-monitor adapter
  • MST technology uses your existing video card to minimize the use of system resources
  • USB-C hub supports Ultra HD resolutions up to 4K
  • Offers a hassle-free connection with the reversible USB-C connector

This USB-C to HDMI MST Hub lets you connect two HDMI monitors to your USB Type-C Windows device, conveniently helping you to maximize your productivity.

Multi-tasking Made Easy

With devices becoming more portable than ever, you can be limited to fewer video outputs and confined to your small integrated screen. This multi-stream transport hub solves that problem by enabling you to connect two separate displays to your USB-C computer, making multi-tasking much easier. Using this USB-C to HDMI video splitter, you can mirror your display onto additional monitors or stream independent content to each display, which makes it the ideal accessory for travel or hot-desking.

Possible monitor configurations with the MST hub

Astonishing Picture Quality

MST technology uses your existing video card to minimize the use of system resources, while delivering UHD 4K resolutions for two monitors or displays simultaneously. With support for HD 1080p and UHD 4K the USB-C hub is perfect for all high-resolution applications such as graphic design and CAD drawing.

Two monitors connected to the MST hub displaying two different applications

Hassle-Free Setup

Multi-stream transport offers an easy setup by natively working on any Windows device that supports DP Alt Mode over USB Type-C. This USB-C to HDMI hub is Thunderbolt 3 compatible, and offers plug-and-play installation with no drivers or software required. Additionally, this dual-monitor splitter is powered by the USB-C port, meaning no external power cords are necessary.


MSTCDP122HD is backed by a StarTech.com 3-year warranty, and free lifetime technical support.



Applications

  • Extend your desktop onto additional monitors or displays
  • Create dynamic digital signage with a panoramic video wall
  • Avoid side-scrolling by spanning across dual monitors
  • Edit media across additional displays in any orientation
  • Ideal for travel or hot-desking

Technical Specifications

WARRANTY INFORMATION
  Warranty 3 Years
HARDWARE
  Audio Yes
  AV Input USB-C
  AV Output HDMI - 1.4
  Chipset ID MegaChips - STDP4320
Parade - PS8402A
VIA/VLI - VL100
  Ports 2
PERFORMANCE
  Audio Specifications HDMI - 7.1 Channel Audio
  Maximum Cable Distance To Display 49.9 ft [15.2 m]
  Maximum Digital Resolutions 3840x2160 @ 30hz
  Supported Resolutions

Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup.

Average resolution bandwidth allocation

1920x1080 (1080p) @60hz - 22%
1920x1200 @60hz - 30%
2560x1440 @60hz - 35%
2560x1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30hz - 38%

Note: Exceeding 100% will reduce functionality.

  Wide Screen Supported Yes
CONNECTOR(S)
  Connector A 1 - USB-C (24 pin) DisplayPort Alt Mode Male Input
  Connector B 2 - HDMI (19 pin) Female Output
SOFTWARE
  OS Compatibility Windows 10, 8.1, 8
SPECIAL NOTES / REQUIREMENTS
  Note Your USB-C equipped device must support video (DP Alt Mode) to work with this adapter
ENVIRONMENTAL
  Humidity 50-90%
  Operating Temperature 5°C to 35°C (41°F to 95°F)
  Storage Temperature -20°C to 60°C (-4°F to 140°F)
PHYSICAL CHARACTERISTICS
  Cable Length 11.5 in [292.1 mm]
  Color Black
  Material Plastic
  Product Height 0.5 in [1.3 cm]
  Product Length 2.4 in [62 mm]
  Product Width 2.3 in [58 mm]
  Weight of Product 1.6 oz [44 g]
PACKAGING INFORMATION
  Package Height 1.3 in [32 mm]
  Package Length 6.9 in [17.4 cm]
  Package Width 5.7 in [14.4 cm]
  Shipping (Package) Weight 5 oz [143 g]
WHAT'S IN THE BOX
  Included in Package 1 - MST hub
    1 - quick-start guide
