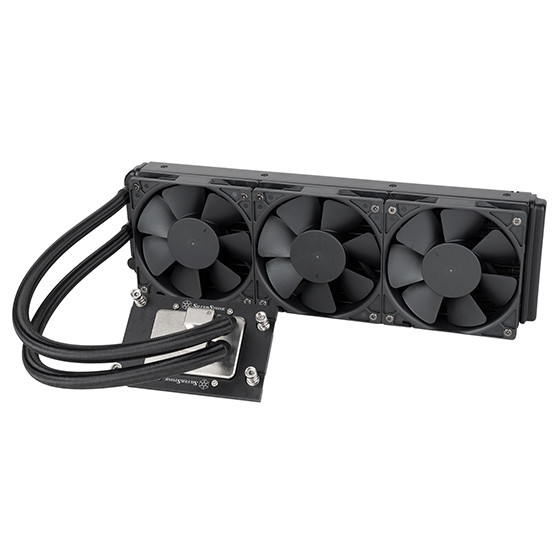

SilverStone XE360-TR5 AMD Socket sTR5/SP6 360mm AIO CPU Cooler

XE360-TR5

High Performance Triple 120mm All-In-One Liquid Cooler for AMD Socket sTR5/SP6

• Nickel plated copper water block with large-sized micro-channel copper base plate
• Water pump integrated within the radiator
• Aluminum alloy cavity pump strengthens the overall structure
• Three phase, six pole motor design
• 3 x 120mm radiator-optimized cooling fans

Product Specifications

Model No.

SST-XE360-TR5

Application

AMD Socket sTR5/SP6/sWRX9/sWRX8/sTRX4/TR4/SP3

Water block

Dimension

• 79mm (W) x 25mm (H) x 119mm (D)
  3.11" (W) x 0.98" (H) x 4.69" (D)

Material

• Copper base with aluminum body

Pump

Motor speed

• 4,000 ±10% RPM

Rated Voltage

• 12V

Rated Current

• 0.38A

Connectors

• 3 pin

Radiator

Dimension

• 120mm (W) x 28mm (H) x 394mm (D)
  4.72" (W) x 1.1" (H) x 15.5" (D)

Material

• Aluminum

Tube

Length

• 460mm

Material

• Rubber

Fan

Dimension

• 120mm (W) x 25mm (H) x 120mm (D)
  4.72" (W) x 0.98" (H) x 4.72" (D)

Speed

• 600 ~ 2,800 RPM

Noise level

• 46 dBA

Rated Voltage

• 12V

Max airflow

• 87.72 CFM

Max air pressure

• 3.09mmH2O

Connector

• 4 pin PWM

* Please confirm that the header that supplies power to the PUMP has a stable 12V voltage. It’s recommended to disable the PWM/DC mode of this header from the motherboard BIOS, or to set it to full speed
