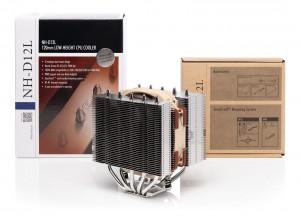

Noctua NH-D12L Low-Height Dual Tower 120mm Fan Air CPU Cooler

The NH-D12L is a low-height 120mm class CPU cooler that has been conceived to combine outstanding quiet cooling performance with superior case compatibility. At a height of only 145mm (13mm lower than Noctua’s regular 120mm models), it fits many 4U enclosures as well as narrower tower cases that have been previously limited to solutions with 92mm fans. At the same time, its five heatpipe dual-tower design and state-of-the-art NF-A12x25r 120mm fan allow it to achieve a level of efficiency that surpasses many full-height 120mm models. Thanks to its single-fan configuration and asymmetrical fin stacks, the NH-D12L provides 100% RAM compatibility on AMD AM4/AM5 and LGA1700/1200 by staying clear of the memory slots. Topped off with the renowned SecuFirm2™ mounting system, Noctua’s award-winning NT-H1 thermal compound and a 6-year manufacturer’s warranty, the NH-D12L is the perfect choice for applications that require serious cooling performance but cannot fit the larger NH-U12A.

Product Details

Notes and warnings



Further reading:
 Which Noctua 120mm CPU cooler should I choose? How do the NH-U12A, NH-D12L, NH-U12S and NH-U12S redux compare against each other?

Cooler Specification

Socket compatibility



Intel LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA2011, LGA2066 and AMD AM5, AM4

Height (without fan)



145 mm

Width (without fan)



125 mm

Depth (without fan)



113 mm

Weight (without fan)



700 g

Height (with fan)



145 mm

Width (with fan)



125 mm

Depth (with fan)



113 mm

Weight (with fan)



890 g

Material



Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

NSPR



148

Max. TDP



see NSPR

Fan compatibility



NF-A12x25r (square-frame 120mm fans not supported)

Scope of delivery



• NF-A12x25r PWM premium fan
• NA-RC14 Low-Noise Adaptor (L.N.A)
• NT-H1 high-grade thermal compound
• Fan-clips for second NF-A12x25r
• SecuFirm2™ mounting kit
• Noctua metal case-badge

Warranty



6 Years

FAN Specification

Model



Noctua NF-A12x25r PWM

Bearing



SSO2

Max. rotational speed (+/- 10%)



2000 RPM

Max. rotational speed with L.N.A. (+/- 10%)



1700 RPM

Min. rotational speed @ 20% PWM (+/-20%)



450 RPM

Max. airflow



102,1 m³/h

Max. airflow with L.N.A.



84,5 m³/h

Max. acoustical noise



22,6 dB(A)

Max. acoustical noise with L.N.A.



18,8 dB(A)

Voltage range



12 V

MTTF



> 150.000 h
