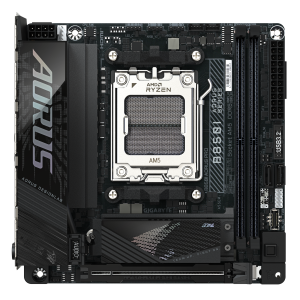

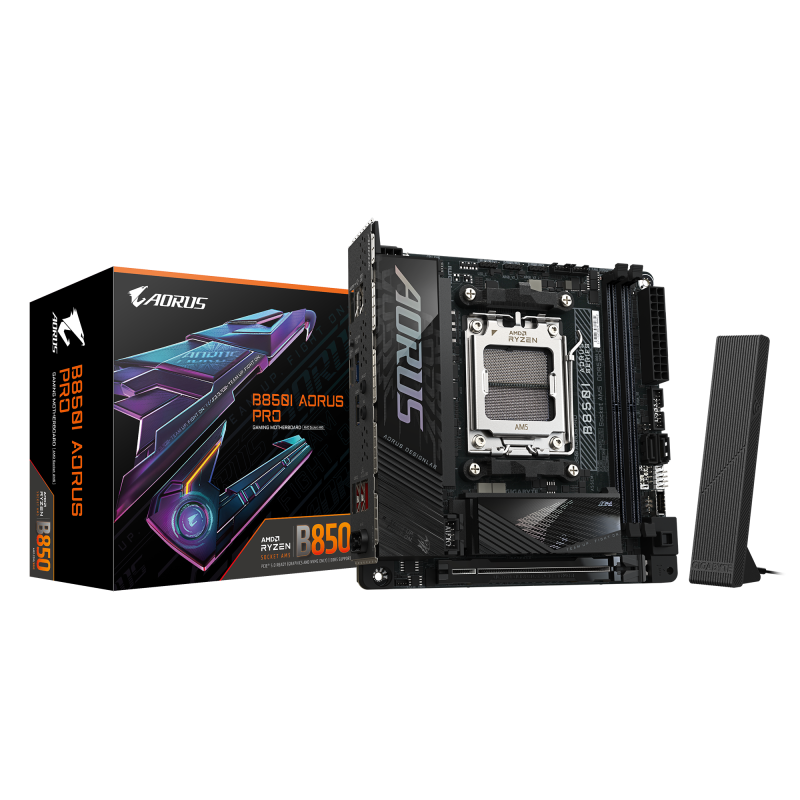

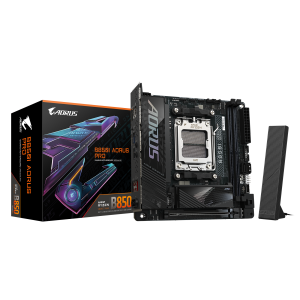

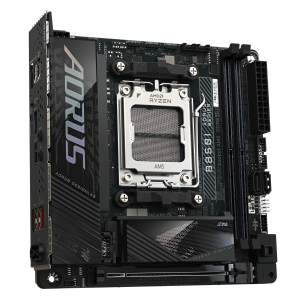

Gigabyte B850I AORUS PRO AM5 Mini-ITX AMD B850 2xDIMM DDR5 2xM.2 USB 3.2 2.5Gb LAN Wi-Fi 7+BT Carte Mère

Key Features

• X3D Turbo Mode : Unleash new era gaming performance
• DDR5 OC up to 8400MT/s
• AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Digital twin 8+2+1 phases VRM solution
• Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click : M.2 heatsinks with screwless design
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• Ultra-Fast Storage : 1*M.2 slots, including PCIe 5.0 x4
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.

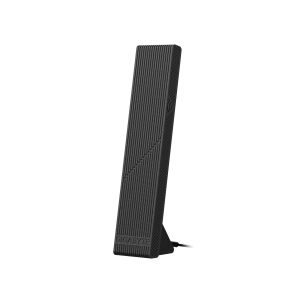

• Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity : HDMI
• PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

• CPU

  AMD Socket AM5, support for:
  AMD Ryzen™ 9000 Series Processors/
  AMD Ryzen™ 8000 Series Processors/
  AMD Ryzen™ 7000 Series Processors
  (Go to GIGABYTE's website for the latest CPU support list.)

• Chipset

  AMD B850

• Memory

  Support for DDR5 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
  2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

• Onboard Graphics

  Integrated Graphics Processor with AMD Radeon™ Graphics support:
  - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz


  * Support for HDMI 2.1 version and HDCP 2.3, and HDR.
  ** Support for native HDMI 2.1 TMDS compatible ports.


  (Graphics specifications may vary depending on CPU support.)

• Audio

  Realtek® ALC4080 CODEC
  High Definition Audio
  2-channel

• LAN

  Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Wireless Communication module

  Realtek® Wi-Fi 7 RTL8922AE
  - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
  - BLUETOOTH 5.4
  - Support for 11be 160MHz wireless standard
  (Actual data rate may vary depending on environment and equipment.)


  * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
  ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.

• Expansion Slots

  1 x PCI Express x16 slot, integrated in the CPU:
   AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
   AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
   AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode


  * The PCIEX16 slot can only support a graphics card or an NVMe SSD.

• Storage Interface

  1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
   AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
   AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
   AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
  1 x M.2 connector on the back of the motherboard (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs
  2 x SATA 6Gb/s connectors
  RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices


  * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.


  RAID 0 and RAID 1 support for SATA storage devices

• USB

  CPU:
  - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  Chipset:
  - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

• Internal I/O Connectors

  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  1 x CPU fan/water cooling pump header
  1 x system fan header
  2 x addressable RGB Gen2 LED strip headers
  1 x RGB LED strip header
  2 x M.2 Socket 3 connectors
  2 x SATA 6Gb/s connectors
  1 x front panel header
  1 x speaker header
  1 x front panel audio header (routed from the adapter card on the rear panel)
  1 x USB Type-C® header, with USB 3.2 Gen 2 support
  1 x USB 3.2 Gen 1 header
  1 x USB 2.0/1.1 header
  1 x reset jumper
  1 x Clear CMOS jumper
  1 x chassis intrusion header

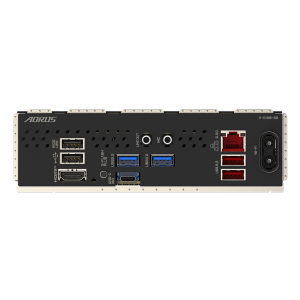

• Back Panel Connectors

  1 x Q-Flash Plus button
  1 x HDMI port*
  2 x antenna connectors (2T2R)
  1 x USB Type-C® port, with USB 3.2 Gen 2 support
  2 x USB 3.2 Gen 2 Type-A ports (red)
  2 x USB 3.2 Gen 1 ports
  2 x USB 2.0/1.1 ports
  1 x RJ-45 port
  2 x audio jacks

  * Actual support may vary by CPU.

• I/O Controller

  iTE® I/O Controller Chip

• H/W Monitoring

  Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control


  * Whether the fan speed control function is supported will depend on the fan you install.

• BIOS

  1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  Support for GIGABYTE Control Center (GCC)


  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


  Support for Q-Flash
  Support for Q-Flash Plus
  Support for Smart Backup

• Bundled Software

  Norton® Internet Security (OEM version)
  LAN bandwidth management software

• Operating System

  Support for Windows 11 64-bit

• Form Factor

  Mini-ITX Form Factor; 17.0cm x 17.0cm

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
