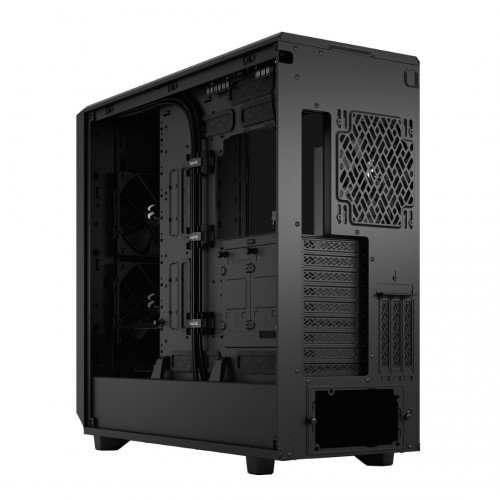

Fractal Design Meshify 2 XL Light Tempered Glass Black E-ATX Full-Tower Case (FD-C-MES2X-02)

Fractal Design Meshify 2 XL Light Tempered Glass Noir E-ATX Full-Tower Boitier (FD-C-MES2X-02)

FRACTAL DESIGN

UGS: FD-C-MES2X-02

$340.99

Description du produit

Bigger, bolder and better? With more of everything, the Meshify 2 XL is ready to take on your most ambitious builds.

  • • Iconic mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
  • • Spacious and extensively adaptable dual-layout interior
  • • Easily accommodates large motherboards up to and including E-ATX and SSI-EEB
  • • Open Layout supports radiators up to 480/420 mm (front), 480/420 mm (top) and 280/240 mm (base)

Specifications

  • 3.5"/2.5" Universal drive mounts
    6 included, 18 positions total + 2 Multibrackets
  • Dedicated 2.5" drive mounts
    2 included, 5 positions total
  • Expansion slots
    9 + 3
  • Front interface
    1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button
  • Total fan mounts
    11x 120 mm or 9x 140 mm
  • Front fan
    4x 120 mm or 3x 140 mm, (2x Dynamic X2 GP-14 included)
  • Top fan
    4x 120 mm or 3x 140 mm
  • Rear fan
    1x 120/140 mm, (1x Dynamic X2 GP-14 included)
  • Bottom fan
    2x 120/140 mm
  • Dust filters
    Top, front and bottom
  • Fixed velcro straps
    Yes
  • Cable routing grommets
    Yes
  • Captive thumbscrews
    HDD, SSD and PSU brackets
  • Left side panel
    Tempered glass light tint
  • Right side panel
    Steel

Compatibility

  • Motherboard compatibility
    E-ATX / ATX / mATX / Mini-ITX / EE-ATX / SSI-CEB / SSI-EEB
  • Power supply type
    ATX
  • PSU max length
    250 mm (both HDD cages installed)
  • GPU max length
    Storage layout: 359 mm Open layout: 549 mm (524 mm w/ front fan)
  • CPU cooler max height
    185 mm
  • Front radiator
    Up to 480/420 mm
  • Top radiator
    Up to 480/420 mm
  • Rear radiator
    120 mm
  • Bottom radiator
    Up to 240/280 mm
  • Cable routing space
    30 mm

Dimensions

  • Case dimensions (LxWxH)
    600 x 240 x 566 mm
  • Case dimensions w/o feet/protrusions/screws
    588 x 240 x 547 mm
  • Package dimensions (LxWxH)
    651 x 330 x 684 mm
  • Net weight
    14.1 kg
  • Gross weight
    16.4 kg
  • Volume
    77,2 liters

Other

  • Package contents
    Meshify 2 XL Case, user manual, accessory box, screw box
  • EAN
    7340172702566
  • UPC
    843276102562
  • JAN
    4537694277365
  • Product code
    FD-C-MES2X-02
