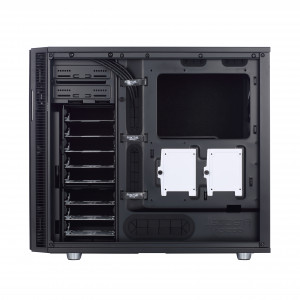

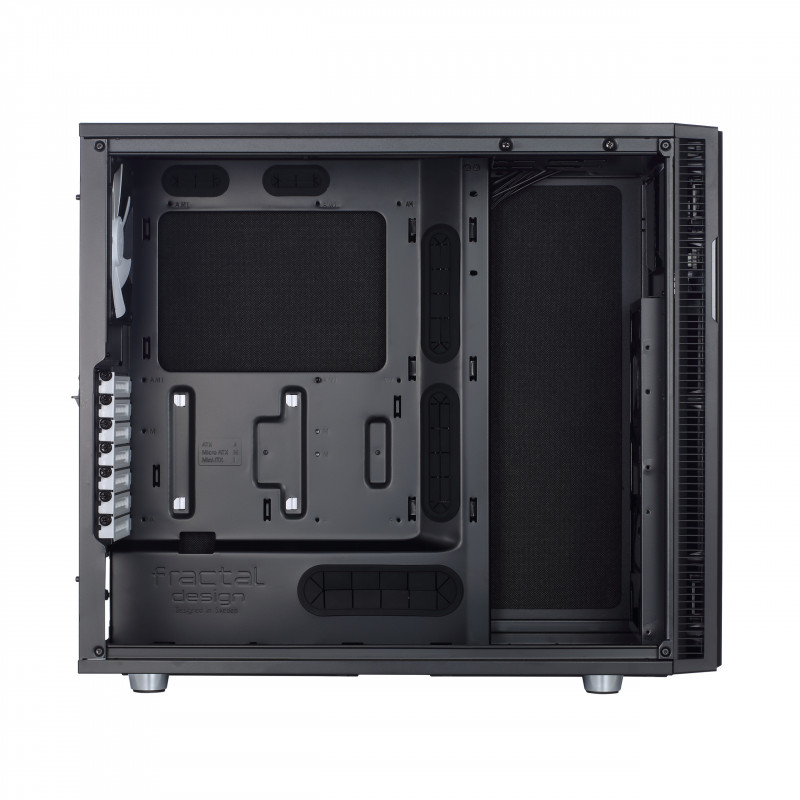

Fractal Design Define R5 Black Solid Panel ATX Mid-Tower Case (FD-CA-DEF-R5-BK)
01.jpg 02.jpg 03.JPG 04.JPG 05.JPG 06.jpg 07.jpg 08.jpg 09.jpg 10.jpg 11.jpg 12.jpg 13.jpg 14.jpg

Fractal Design Define R5 Black Solid Panel ATX Mid-Tower Boitier (FD-CA-DEF-R5-BK)

209.99$

Ce produit est actuellement en rupture de stock et n’est pas disponible, veuillez nous contacter pour plus d’informations.

The R5 is packed with intelligently designed enthusiast-oriented features delivering a silent case with powerful and expansive air and liquid cooling support

  • Optimally designed for silent computing with high density sound-dampening material
  • Extensive water cooling support for a case of this size
  • Equipped with tool-less ModuVent™ fan slot covers

Specifications

  • 3.5" HDD/2.5" SSD positions
    8
  • 2.5" dedicated SSD unit positions
    2 (fits SSDs up to 12 mm thick)
  • 5.25" bays
    2 (removable)
  • Expansion slots
    7
  • Front ports
    2x USB 3.0, 2x USB 2.0, Audio in/out, Power button with LED (blue), HDD activity LED (blue), Reset button
  • Total fan mounts
    9
  • Front fan
    2x 120/140 mm (included 1x Fractal Design Dynamic GP-14 fan @ 1000 RPM)
  • Top fan
    3x 120/140 mm
  • Rear fan
    1x 120/140 mm (included 1x Fractal Design Dynamic GP-14 fan @ 1000 RPM)
  • Bottom fan
    2x 120/140 mm
  • Side fan
    1x 120/140 mm
  • Dust filters
    Front fans, Bottom fans (ejects from the front of the case)
  • Cable routing grommets
    Yes
  • Fixed velcro straps
    Yes
  • Captive thumbscrews
    Right side panel
  • Left side panel
    Industrial sound-dampened steel
  • Right side panel
    Industrial sound-dampened steel

Compatibility

  • Power supply type
    ATX
  • Motherboard compatibility
    ATX, Micro ATX, Mini ITX
  • Front radiator
    360, 280, 240, 140 or 120 mm (without drive bays)
  • Top radiator
    420, 360, 280, 240, 140 or 120 mm (a thickness limitation of 55 mm for both radiator + fan applies on 420, 280 and 140 mm radiators; 420 and 360 mm radiators require removal of the ODD bay)
  • Rear radiator
    120 or 140mm
  • Bottom radiator
    120 or 240 mm (Use of radiators in the bottom position limits the PSU length to 165 mm)
  • PSU max length
    190/170 mm with a bottom 120/140 mm fan installed or 300 mm when not using any bottom fan location
  • GPU max length
    310 mm with the top HDD cage installed or 440 mm with the top cage removed
  • CPU cooler max height
    180 mm
  • Cable routing space
    20-35 mm

Dimensions

  • Case dimensions (WxHxD)
    232 x 451 x 521 mm
  • Case dimensions - with feet/screws/protrusions
    232 x 462 x 531 mm
  • Net weight
    10.7 kg
  • Package dimensions (WxHxD)
    327 x 615 x 540 mm
  • Package weight
    12.5 kg
  • Volume
    54.5 liters

Other

  • Warranty
    2 Years
  • Package contents
    Define R5 computer case, User manual, Accessory box
  • EAN
    7350041082583
  • UPC
    817301012584
  • Additional information
    Available for System Integrators
  • Product code (Black)
    FD-CA-DEF-R5-BK
  • Product code (Blackout)
    FD-CA-DEF-R5-BKO
  • Product code (Titanium)
    FD-CA-DEF-R5-TI
  • Product code (White)
    FD-CA-DEF-R5-WT

Downloads
