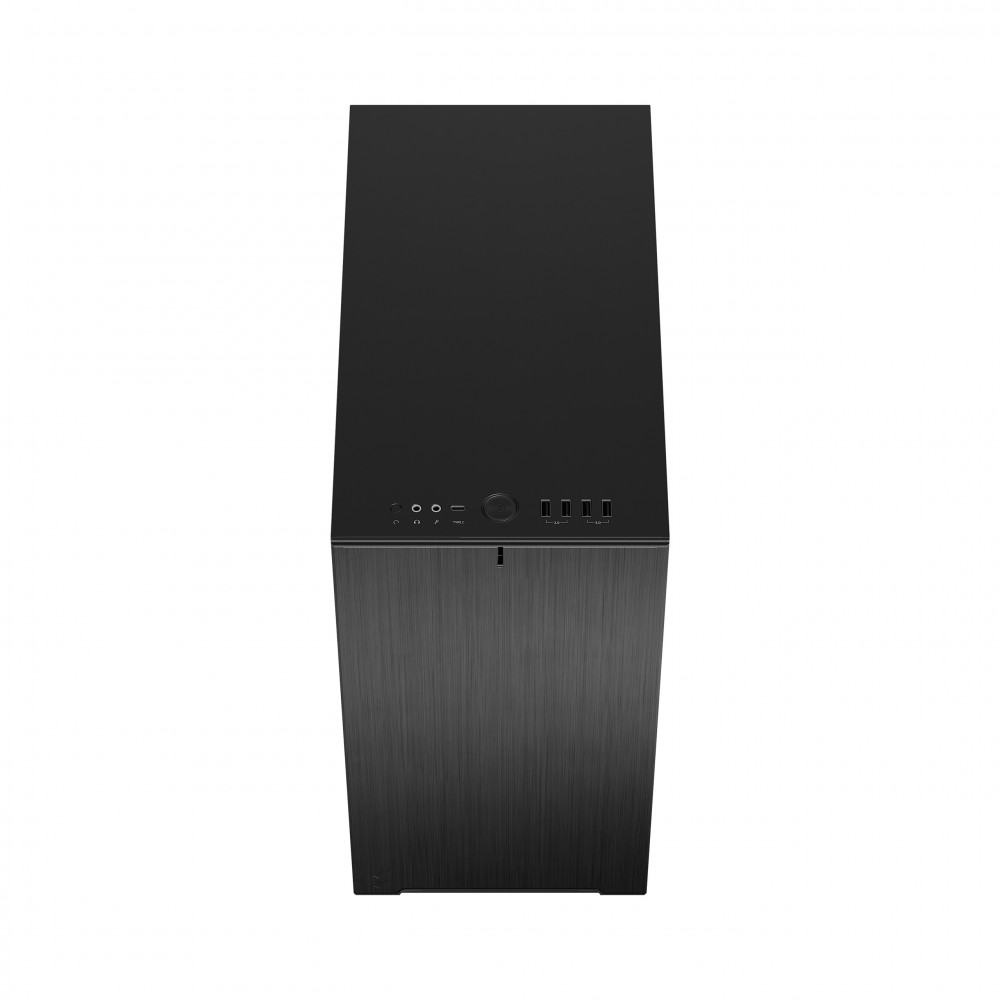

Fractal Design Define 7 Mini Black Solid Panel Micro-ATX Mini-Tower Case (FD-C-DEF7M-01)
01.jpg 02.jpg 03.jpg 04.jpg 05.jpg 06.jpg 07.jpg

Fractal Design Define 7 Mini Noir Solid Panel Micro-ATX Mini-Tower Boitier (FD-C-DEF7M-01)

189.99$

Quantité

The Define 7 Mini offers the same stylish appeal and many of the life-improving features of its larger siblings, in a streamlined form factor.

  • • Compact yet spacious interior accommodates mATX and Mini ITX motherboards
  • • Room for GPUs up to 331 mm with a 240 mm radiator in the top, or 306 mm with 25 mm thick fans in the fronts
  • • Support for 2x 2.5”/3.5” drives and up to 4x 2.5” drives (2x 2.5” brackets included)

Specifications

  • 3.5"/2.5" drive mounts
    2 (included)
  • Dedicated 2.5" drive mounts
    4 (2 included – note the 8 mm height limit on two of the positions)
  • Expansion slots
    4
  • Front interface
    1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio
  • Total fan mounts
    7x 120 mm or 4x 140 mm
  • Front fan
    3x 120/ 2x 140 mm (1x Dynamic X2 GP-14 included)
  • Top fan
    2x 120/140 mm
  • Rear fan
    1x 120 mm (1x Dynamic X2 GP-12 included)
  • Bottom fan
    1x 120 mm (requires HDD Cage to be removed)
  • Dust filters
    Top, Front, Bottom and PSU
  • Cable routing space
    15-25 mm
  • Cable routing grommets
    Yes
  • Fixed cable ties
    Yes
  • Tool-less push-to-lock
    Top, front and side panels
  • Captive thumbscrews
    HDD, SSD and PSU brackets
  • Left side panel
    Industrial sound-damped steel or tempered glass
  • Right side panel
    Industrial sound-damped steel

Compatibility

  • Motherboard compatibility
    mATX / Mini-DTX / Mini ITX
  • Power supply type
    ATX
  • Front radiator
    120/240, 140/280 (361 mm max height, 146 mm max width)
  • Top radiator
    120/240 mm (max 37 mm RAM with 121 mm wide radiator)
  • Rear radiator
    120 mm
  • Bottom radiator
    120 mm (requires HDD Cage to be removed)
  • PSU max length
    165 mm recommended with HDD Cage (200 mm without Hard Drive Cage)
  • GPU max length
    331 mm, 306 mm with front fan
  • CPU cooler max height
    167 mm

Dimensions

  • Case dimensions (LxWxH)
    399 x 205 x 406 mm
  • Net weight
    Solid: 7.49 kg TG: 6.84 kg
  • Package dimensions (LxWxH)
    462 x 277 x 471 mm
  • Gross weight
    Solid: 9.05 kg TG: 8.4 kg

Other

  • Package contents
    Define 7 Mini, User manual, Accessory box, Ventilated top panel
  • SKU
    Black Solid: FD-C-DEF7M-01, Black TG Light Tint: FD-C-DEF7M-02
  • EAN
    Black Solid: 7340172702818, Black TG Light Tint: 7340172702825
  • UPC
    Black Solid: 843276102814, Black TG Light Tint: 843276102821
  • JAN
    Black Solid: 4537694282291, Black TG Light Tint: 4537694282307
  • Warranty
    2 Years
