be quiet! Silent Wings 4 120mm PWM high speed Fan (BL094)
UGS: BL094
Options
Description du produit

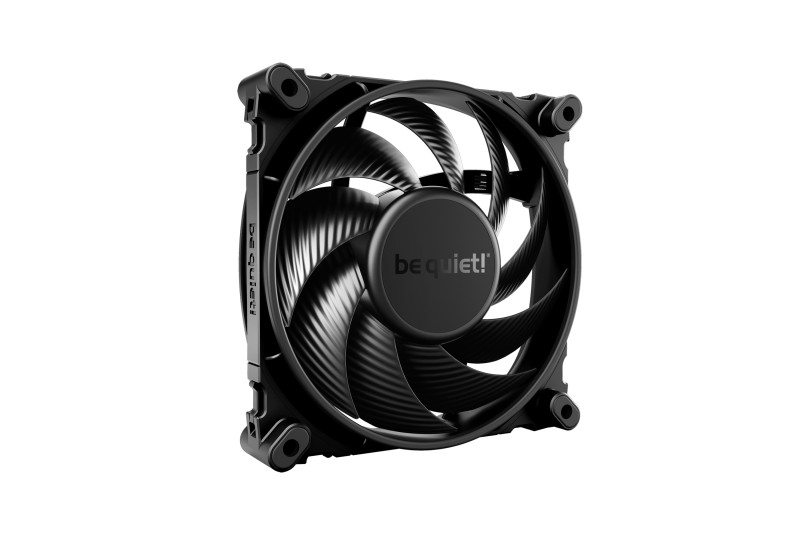

SILENT WINGS 4
120mm PWM high-speed
No compromise silence and performance
Silent Wings 4 120mm PWM high-speed combines all features of a virtually inaudible with an extremely performant fan for the most demanding applications.
- Optimized fan blades for the highest performance on radiators and heat sinks
- Small tip clearance and a fan frame with funnel-shaped air outlets for extremely high air pressure
- Very silent operation even at maximum speed
- 6-pole fan motor and fluid-dynamic bearing for less vibration and very smooth operations
- Anti-vibration mounting with push pins and screwed installation option
- Super-long lifespan of up to 300,000h
- Elegant look with high-grade fan sticker in an all-black design
- 5-year manufacturer warranty
General data
| Model | Silent Wings 4 120mm PWM high-speed |
| Dimensions (mm) | 120 |
| Color option | Black |
| Lighting | - |
| Fan speed at 100% PWM / 12V (rpm) | 2500 |
| Noise level at 100% PWM / 12V (dB(A)) | 31.2 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 76.7 / 130.3 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 3.96 |
Infographics
Mechanical specifications
| Dimensions (L x W x H), (mm) | 120 x 120 x 25 |
| Weight incl. fixed cables (g) | 190 |
| Bearing technology | FDB |
| Motor technology | 6-pole fan motor |
| Push pin fixing | ✓ |
| Screw fixing | ✓ |
Cables / Connectors
| Daisy-chain compatible | - |
| Lighting connector | - |
| Connector | 4-pin PWM |
| Cable length (mm) | 500 |
| Cable sleeve | ✓ |
Performance / Noise
| Airflow at 100% PWM / 12V (CFM / m3/h) | 76.7 / 130.3 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 3.96 |
| Noise level at 100% PWM / 12V (dB(A)) | 31.2 |
| Lifespan (h / 25°C) | 300,000 |
| Zero RPM mode | ✓ |
Electrical specifications
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 5 - 13.2 |
| Current consumption (A) | 0.20 |
| Input current (A) | 0.20 |
| Safety current (A) | 0.20 |
| Input power (W) | 2.4 |
| Rated Current LED (A) | - |

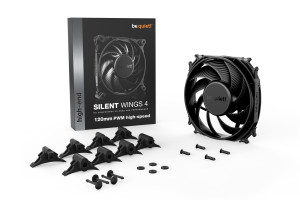

Accessories
| 3-pin to 4-pin 12V-connector | - |
| 12V to 7V adapter | - |
| 12V to 5V adapter | - |
| Screws | 4 |
| Push pins | 4 |
| hard plastic washer | 4 |
| Others | Rubber & hard plastic mountings |
Safety certification
| Approvals | CE / UL / UKCA / TÜV |
Environmental directives
| RoHS | ✓ |
| WEEE | ✓ |
| Triman | ✓ |
Service
| Warranty (Years) | 5 |
| International hotline / free of charge | ✓ / DE, FR, US |
Logistics data and RRP
| Article number | BL094 |
| EAN code | 4260052188866 |
| Dimensions, package (L x W x H), (mm) | 192 x 141 x 31 |
| Gross weight, package (kg) | 0.35 |
| Pieces per packaging unit | 40 |
| Dimensions, shipping box (L x W x H), (mm) | 432 x 387 x 375 |
| Gross weight, shipping box (kg) | 15.04 |
| RRP (€) | 23.90 |
