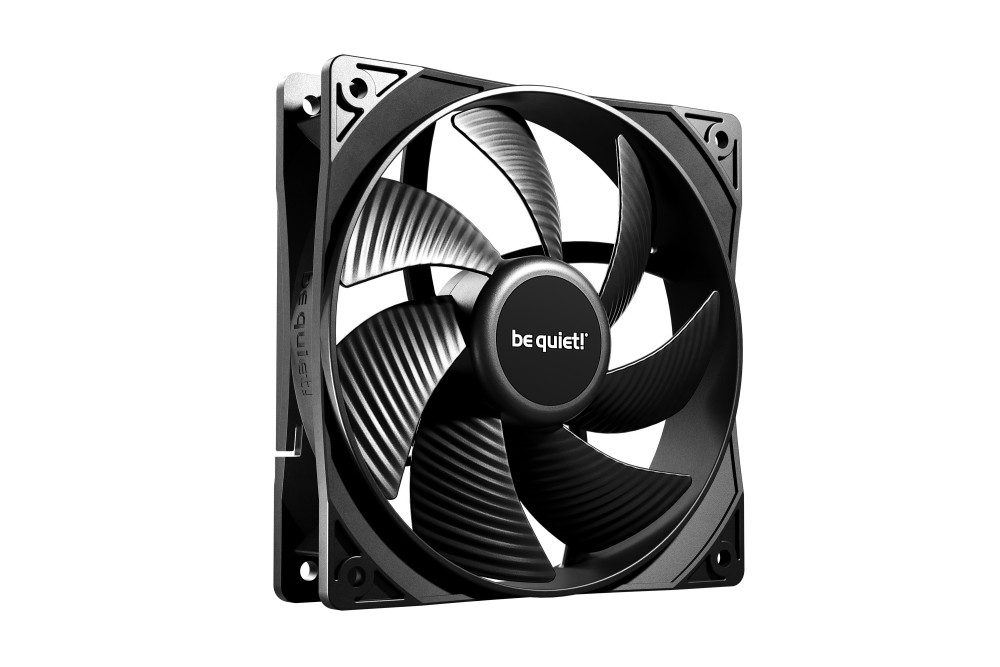

be quiet! Pure Wings 3 120mm PWM Fan (BL105)
UGS: BL105
$24.99
Options
Description du produit
PURE WINGS 3
120mm PWM
PURE WINGS 3
120mm PWM
Performant, progressive, quiet
With low minimum rpm and high top-end speed, Pure Wings 3 120mm PWM are the perfect addition to PCs for any application. The fan offers outstanding reliability and makes for a long-lasting companion for your gaming system.
- Optimized fan frame for outstanding performance on radiators
- Newly designed fan blades and re-arranged angle for extraordinary air pressure
- Pure Wings 3 120mm PWM can be operated with very low minimum rpm for very quiet operation
- Long life rifle bearing gives an operating lifetime of 80,000 hours
- Product conception, design and quality control in Germany
General data
| Model | Pure Wings 3 120mm PWM |
| Dimensions (mm) | 120 |
| Color option | Black |
| Lighting | - |
| Fan speed at 100% PWM / 12V (rpm) | 1600 |
| Noise level at 100% PWM / 12V (dB(A)) | 25.5 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 49.9 / 84.8 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 1.45 |
Mechanical specifications
| Dimensions (L x W x H), (mm) | 120 x 25 x 120 |
| Weight incl. fixed cables (g) | 148 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Push pin fixing | - |
| Screw fixing | ✓ |
Cables / Connectors
| Daisy-chain compatible | - |
| Lighting connector | - |
| Connector | 4-pin PWM |
| Cable length (mm) | 460 |
| Cable sleeve | - |
Performance / Noise
| Airflow at 100% PWM / 12V (CFM / m3/h) | 49.9 / 84.8 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 1.45 |
| Noise level at 100% PWM / 12V (dB(A)) | 25.5 |
| Lifespan (h / 25°C) | 80,000 |
| Zero RPM mode | - |
Electrical specifications
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 5 - 13.2 |
| Input current (A) | 0.10 |
| Safety current (A) | 0.20 |
| Input power (W) | 2.4 |
| Rated Current LED (A) | - |
Accessories
| 3-pin to 4-pin 12V-connector | - |
| 12V to 7V adapter | - |
| 12V to 5V adapter | - |
| Screws | 4 |
| Push pins | - |
| hard plastic washer | - |
| Others | - |
Safety certification
| Approvals | CE / RoHS / RU / UKCA / WEEE |
Environmental directives
| RoHS | ✓ |
| WEEE | ✓ |
| Triman | ✓ |
Service
| Warranty (Years) | 3 |
| International hotline / free of charge | ✓ / DE, FR, US |
Logistics data and RRP
| Article number | BL105 |
| EAN code | 4260052190777 |
| Dimensions, package (L x W x H), (mm) | 155 x 27 x 122 |
| Gross weight, package (kg) | 0.18 |
| Pieces per packaging unit | 60 |
| Dimensions, shipping box (L x W x H), (mm) | 427 x 355 x 330 |
| Gross weight, shipping box (kg) | 11.71 |
| RRP (€) | 13.90 |
