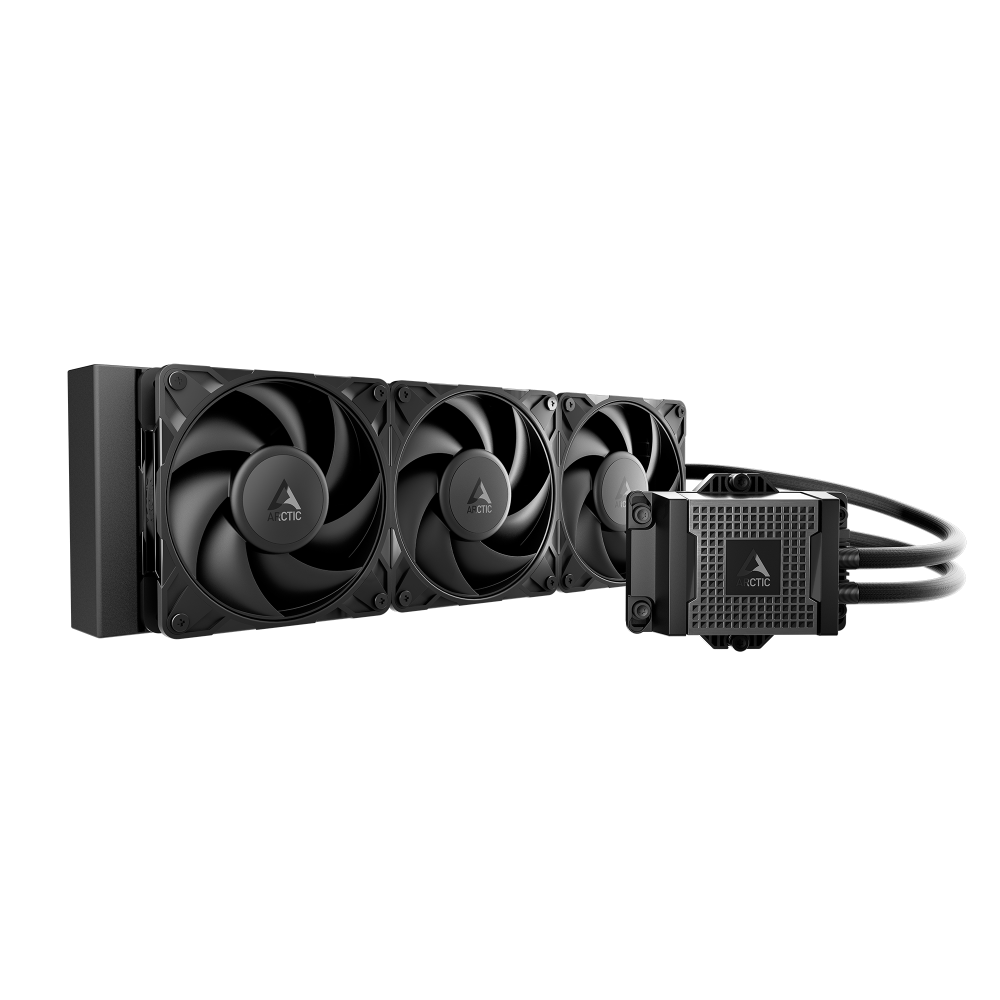

Arctic Liquid Freezer WS360-SP5 Noir 360mm Refroidisseur Liquide pour Processeur de Station de Travail Tout-en-Un (ACFRE00200A)

Outstanding Liquid Cooling for Workstations

The Liquid Freezer WS360-SP5 is an all-in-one liquid cooling solution designed for the AMD SP5 workstation platform. Featuring a platform specific mounting system for easy installation, it delivers outstanding cooling performance to meet the demands of high performance workstations.

Designed for Superior Cooling, optimized for Workstations

Thanks to its radiator design and high-performance fans, the Liquid Freezer WS360-SP5 delivers outstanding cooling under heavy loads while keeping noise levels comparable to competing solutions.

6 Years Warranty - Confidence That Endures

Workstations demand reliability. To demonstrate our commitment to long term performance, we offer a 6-year warranty.

P12 Pro PST CO – Performance & Durability

The ARCTIC's P12 Pro PST CO pair the High Static‑Pressure Performance of the P12 Pro with Dual Ball Bearings engineered for continuous 24/7 operation, ensuring durability and extended lifespan.

Tailored Made for SP5

A fixed mounting system tailored for AMD SP5 ensures optimal contact pressure on the CPU and user-friendly installation.

Water Block Design for Workstations

The water block is a brand‑new design with high‑density micro‑fins, efficient chamber flow, and a durable pump for long‑lasting reliability.

Premium-Class Radiator

Liquid coolers with 38mm radiators offer superior thermal dissipation, and we continued integrating this design into our workstation models.

High Quality EPDM Tubing

EPDM tubing with braided sheathing to ensure durability and prevent leakage, protecting your components is our highest priority.

MX-7 – Ultimate Performance Thermal Paste

Bundled with MX-7, ARCTIC’s Ultimate Performance Thermal Paste, designed to maximize thermal performance and long-term reliability. Applied in a three parallel line pattern, it ensures even coverage across the CPU surface.

learn more

Efficiency Engineered to Reduce Ownership Costs

Engineered for an outstanding Power Efficiency Ratio (PER). Capable of dissipating up to 800W of CPU Heat while consuming only 14.8W, it significantly reduces the Total Cost of Ownership (TCO) for high-performance workstations.

Xtender – Xtend your Potential

The Xtender is a high-airflow case designed for maximum air circulation. It accommodates motherboards up to the EATX format with a width of 285 mm and graphics cards up to 482 mm in length, making it suitable for workstation use.

Technical specifications & manual

General Specifications

Warranty

6 Years

Operating Ambient Temperature

0-40 °C

Dimensions

(L) x (W) x (H) mm

Fan Specifications

Fan Speed

600-3000 rpm

Airflow | Airflow

77 cfm | 131 m³/h

Static Pressure

6.9 mm H20

Bearing

Dual Ball Bearing

Current | Voltage

0.33 A | 12 V DC

Cable Length

400 mm

Connector

4-Pin PWM-Connector + 4-Pin Plug

CPU Specifications

AMD® Socket

SP5

Thermal Compound

MX-7 included

Pump/Tubing Specifications

Min rpm

800 rpm

Max rpm

3000 rpm

Current | Voltage

0.36 A | 12 V DC

Tube Outer Diameter

6 mm

Tube Outer Diameter

12.4 mm

Tube Length

450 mm

Packaging

• Width: 156 mm
• Height: 154 mm
• Length: 431 mm
• Weight: 2.6 kg
