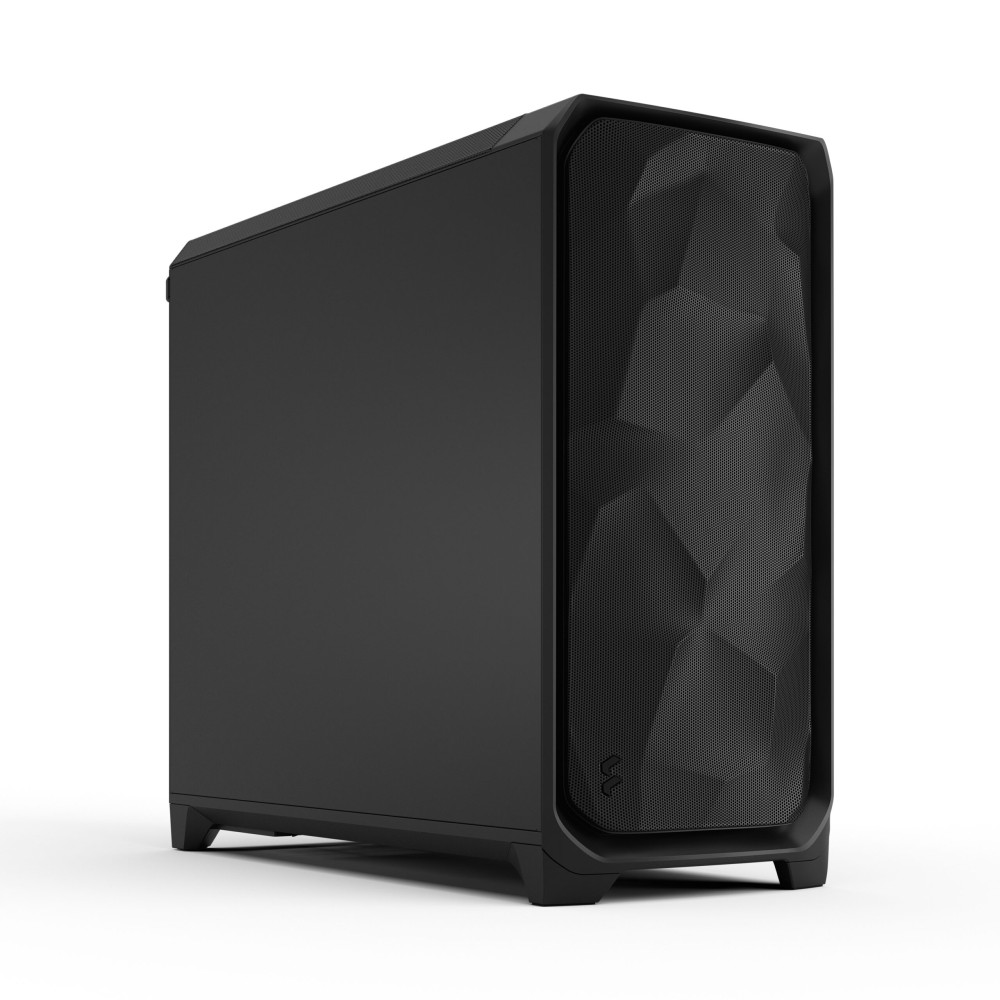

Fractal Design Meshify 3 XL Noir Solid E-ATX Full-Tower Boitier (FD-C-MES3X-01)
UGS: FD-C-MES3X-01
Options
Description du produit
| Meshify 3 | Meshify 3 XL | |
|---|---|---|
| Graphics card (max length) | 349 mm | 512 mm |
| Graphics card (max height) | 176 mm (incl. cables) | 189 mm (incl. cables) |
| PSU max length | 180 mm | 230 mm |
| CPU cooler max height | 173 mm | 182 mm |
| Cable routing space | 34,5 mm | 37,5 mm |
| Top radiator | 240/280 mm | 360/420 mm |
| Front radiator | 280/360 mm | 280/360 mm |
| Side radiator | - | 360 mm (with brackets) |
| Total fan mounts | 6x 120 mm or 5x 140 mm + 1x 120 mm | 10 (140 mm) / 7 (120 mm) |
Specifications
3.5"/2.5" drive mounts
2/4
Dedicated 2.5" drive mounts
1
5.25” drive mounts
-
Expansion slots
7
Adjust Pro Hub
Included in Ambience Pro RGB version
Ambience Case Lighting
Ambience Pro RGB version
Front interface
1 x USB Type-C 20 Gbps, 2 x USB Type-A 5 Gbps, 1x Audio Combo Jack, Power button
Total fan mounts
10 (140 mm) / 7 (120 mm)
Front fan
3x 120/140 mm, 2x 180 mm (3 x 140 mm Momentum Included)
Top fan
3x 120/140 mm
Rear fan
1x 120/140 mm
Bottom fan
-
Side fan
3x 140 mm (no 120 support without radiator)
Dust filters
PSU (Bottom)
Cable routing space
37.5 mm
Cable cover
Yes
Cable organizers
3 Hook-and-loop straps + 3 Cable Aligners
Tool-less push-to-lock
Both Side Panels, Bottom Filter, Front Panel, Top Panel
Captive thumbscrews
Top Radiator Bracket, Air Guide, PSU Bracket
Left side panel
Industrial steel (Solid), Tempered Glass (TG/RGB/Ambience Pro RGB)
Right side panel
Industrial steel
Compatibility
Power supply type
ATX
Motherboard compatibility
E-ATX (330 mm) / ATX / mATX / ITX / EE-ATX / SSI-EEB / SSI-CEB
PSU max length
230 mm
GPU max length
512 mm
GPU max height
189 mm (7 slot) including cables
CPU cooler max height
182 mm
Front radiator
280/360 mm
Top radiator
360/420 (up to 475) mm
Rear radiator
Up to 120/140 mm
Side radiator
360 mm (with brackets)
Dimensions
Case dimensions (LxWxH)
575 x 245 x 515 mm
Case dimensions w/o feet/protrusions/screws
565 x 245x 515
Package dimensions
596 x 350 x 550 mm
Net weight
10.5 kg (Solid) 10.9 kg (TG and RGB) 11.4 kg (Ambience Pro RGB)
Gross weight
12.4 kg (Solid) 13 kg (TG and RGB) 13.3 kg (Ambience Pro RGB)
Other
Package contents
Case, Accessory Box, Manual, Red Note
Accessory Box content (Solid/TG/RGB)
PSU Screws x4, MB Screws x12, SSD screws M3 x20, Zip tie x5, HDD rubber x8, MB standoff x4, HDD screws x8
Accessory Box content (Ambience Pro RGB)
PSU Screws x4, MB Screws x12, SSD screws M3 x20, Zip tie x5, HDD rubber x8, MB standoff x4, HDD screws x8, 500 mm Fractal Connect Cable x1, Legacy Splitter Cable
EAN
Black Solid: 7340172707219 Black TG Light Tint: 7340172707226 Ambience Pro RGB Black TG Light Tint: 7340172707233 Black RGB TG Light Tint: 7340172709527 Ambience Pro RGB White TG Clear Tint: 7340172707240 White RGB TG Clear Tint: 7340172709534
UPC
Black Solid: 843276107215 Black TG Light Tint: 843276107222 Ambience Pro RGB Black TG Light Tint: 843276107239 Black RGB TG Light Tint: 843276109523 Ambience Pro RGB White TG Clear Tint: 843276107246 White RGB TG Clear Tint: 843276109530
Product Code
Black Solid: FD-C-MES3X-01 Black TG Light Tint: FD-C-MES3X-02 Ambience Pro RGB Black TG Light Tint: FD-C-MES3X-03 Black RGB TG Light Tint: FD-C-MES3X-04 Ambience Pro RGB White TG Clear Tint: FD-C-MES3X-05 White RGB TG Clear Tint: FD-C-MES3X-06
Warranty
2 Years
