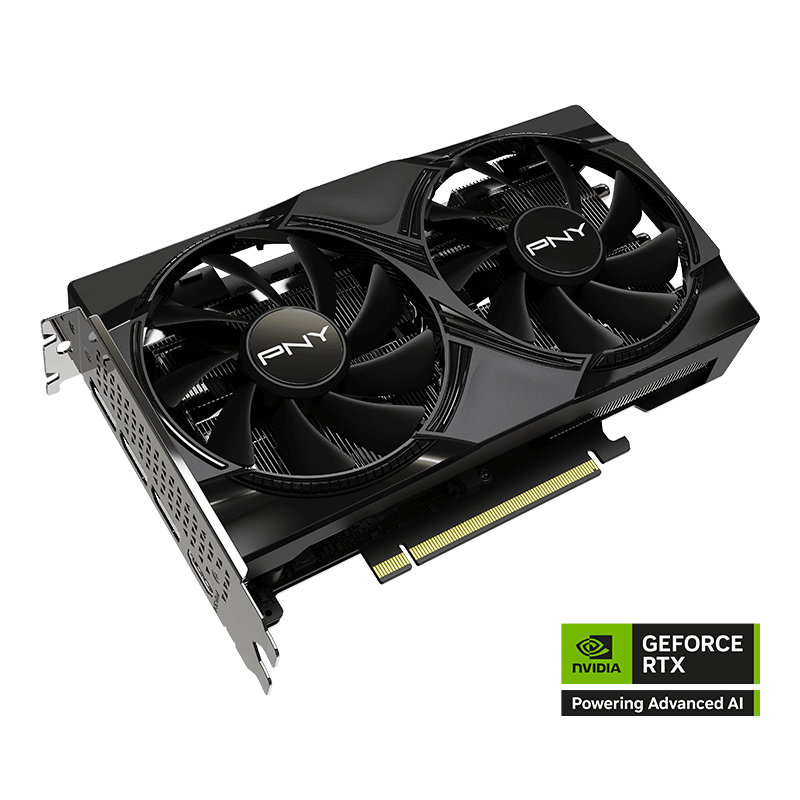

PNY GeForce RTX 5060 Dual Fan 8GB GDDR7 PCIe 5.0 1xHDMI/3xDP Carte Vidéo (VCG50608DFXPB1)

Features

• NVIDIA Blackwell Architecture
• 8GB GDDR7 Memory
• 3x Display Port 1x HDMI®
• 3840 CUDA® Cores
• 145 W Max Power Consumption

Specifications

PNY Part Number

VCG50608DFXPB1

UPC Code

751492797083

Architecture

Blackwell

CUDA® Cores

3840

Clock Speed

2280 MHz

Boost Speed

2497 MHz

Memory Speed (Gbps)

28

Memory Size

8GB GDDR7

Memory Interface

128-bit

Memory Bandwidth (GB/sec)

448

TDP

145 W

NVLink

Not Supported

Outputs

DisplayPort 2.1b (x3), HDMI® 2.1b

Multi-Screen

4

Resolution

4K at 480Hz or 8K at 165Hz with DSC3

Power Input

8-pin

Bus Type

PCI-Express 5.0 x8

Card Dimensions

200 x 120 x 40mm
7.87" x 4.72" x 1.57"; 2 Slot

Box Dimensions

322 x 179 x 70mm
12.68" x 7.05" x 2.76"

3Up to 4K 12-bit HDR at 480Hz with DP 2.1b + DSC or HDMI® 2.1b +DSC. Up to 8K 12-bit HDR at 165Hz with DP 2.1b + DSC. Up to 8K 12-bit HDR at 120Hz with HDMI® 2.1b + DSC. With dual DP 2.1b + DSC, up to 8K HDR at 100Hz

System Requirements

• PCI Express-compliant motherboard with one 2-width x8 graphics slot
• One 8-pin supplementary power connectors
• Total graphics power 145 W
• Required system power 550W2
• Microsoft Windows® 11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit
• Internet connection1

1Graphics Card driver is not included in the box; NVIDIA App will download the latest GeForce driver from the Internet after install.

2Power requirements can be different depending on system configuration.
