Noctua NF-A8 PWM FLX 80x80x25mm 4Pin SSO2 Bearing A-Series Blade Geometry Case Fan

Noctua NF-A8 PWM FLX 80x80x25mm 4Pin SSO2 Bearing A-Series Blade Geometry Case Fan

NOCTUA

UGS: NF-A8 PWM

$29.99

Description du produit

The NF-A8 is a highly optimised, premium quality quiet 80mm fan. Featuring Noctua’s AAO (Advanced Acoustic Optimisation) frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A8 further improves the renowned quiet cooling performance of the award-winning NF-R8. The PWM version sports Noctua’s custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise-Adaptor to reduce the maximum speed during PWM control from 2200 to 1750rpm. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.

FAN Specification
Size
80x80x25 mm

Mounting hole spacing
71,5x71,5 mm

4-pin PWM

Cable length
20cm + 30cm NA-EC1 extension cable

Bearing

Blade geometry
A-Series with Flow Acceleration Channels

Frame technology

Rotational speed (+/- 10%)
2200 RPM

Rotational speed with L.N.A. (+/- 10%)
1750 RPM

Min. rotational speed (PWM, +/-20%)
450 RPM

55,5 m³/h

43,9 m³/h

Acoustical noise
17,7 dB(A)

Acoustical noise with L.N.A.
13,8 dB(A)

Static pressure
2,37 mm H₂O

Static pressure with L.N.A.
1,54 mm H₂O

Max. input power
0,96 W

Max. input current
0,08 A

Operating voltage
12 V

MTTF
> 150.000 h

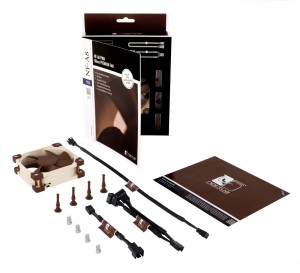

Scope of delivery
  • Low-Noise Adaptor (L.N.A.)
  • 4-Pin Y-Cable
  • 30cm Extension Cable
  • 4 Vibration-Compensators
  • 4 Fan Screws
6 years
