SKU: NF-A12x25PWM

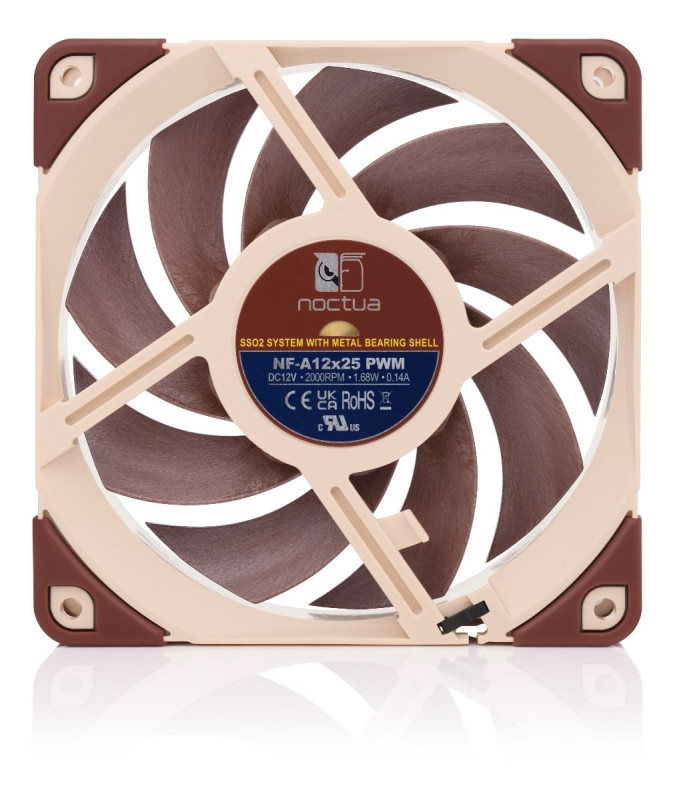

The NF-A12x25 is a highly optimised next-generation 120mm fan that integrates Noctua’s latest innovations in aerodynamic engineering in order to achieve an unprecedented level of quiet cooling performance. It takes state-of-the-art technologies such as the AAO (Advanced Acoustic Optimisation) frame or Flow Acceleration Channels and combines them with a record tight tip clearance of only 0.5mm, which is made possible by using the novel Sterrox® liquid-crystal polymer (LCP) compound as well as a metal-reinforced motor hub and axis for ultimate precision. Following the approach of Noctua’s A-series, the NF-A12x25 is a true all-rounder that yields superb results in all types of usage, regardless of whether it’s in low-impedance, airflow-oriented applications such as case cooling, or high-impedance, pressure-demanding scenarios such as on heatsinks and watercooling radiators. The 4-pin PWM version supports fully automatic speed control via PWM fan headers and comes with a Low-Noise Adaptor to reduce the maximum speed from 2000 to 1700rpm. Topped off with exceptional running smoothness, Noctua’s reference-class SSO2 bearing, a rich bundle of accessories and 6-year manufacturer’s warranty, the NF-A12x25 is a premium-quality product through and through. Its superior efficiency, cutting-edge construction and pioneering materials make it an elite choice for the most discerning demands.
NF-A12x25 further reading:
Performance comparison to NF-F12 and NF-S12A Technical backgrounds and manufacturing challenges Interview with Lars Strömbäck (Noctua CTO) Which 120mm fan is right for me?
Product Details
Notes and warnings
NF-A12x25 further reading: Performance comparison to NF-F12 and NF-S12A Technical backgrounds and manufacturing challenges Interview with Lars Strömbäck (Noctua CTO) Which 120mm fan is right for me?
FAN Specification
Size
120x120x25 mm
Mounting hole spacing
105x105 mm
4-pin PWM
Cable length
20cm + 30cm NA-EC1 extension cable
Bearing
Blade geometry
A-Series with Flow Acceleration Channels
Frame technology
AAO (Advanced Acoustic Optimisation)
Material
Rotational speed (+/- 10%)
2000 RPM
Rotational speed with L.N.A. (+/- 10%)
1700 RPM
Min. rotational speed @ 20% PWM (+/-20%)
450 RPM
102,1 m³/h
84,5 m³/h
Acoustical noise
22,6 dB(A)
Acoustical noise with L.N.A.
18,8 dB(A)
Static pressure
2,34 mm H₂O
Static pressure with L.N.A.
1,65 mm H₂O
Input power (typical)
1,2 W
Input power (max.)
1,68 W
Input current (typical)
0,1 A
Max. input current
0,14 A
Operating voltage
12 V
5 V
MTTF
> 150.000 h
Scope of delivery
6 years
