Lian Li EDGE 850W Noir L-shape 80 PLUS Platinum ATX 3.1 PCIe 5.1 Alimentation Modulaire Complète (EG0850 BLACK)
UGS: EG0850 BLACK
$184.99
Options
Description du produit
EDGE
- L-Shape design for dual chamber case
- 80 PLUS Platinum Efficiency
- Built-in USB expantion hub with 4 internal USB 2.0 headers
- Integrating German EPCOS bulk capacitors
- In-house R&D 12V-2×6 alloy copper soldered terminals
- ATX 3.0/3/1 compliant PSU
- Full modular sleeved cable with cable comb MB/CPU/GPU connectors

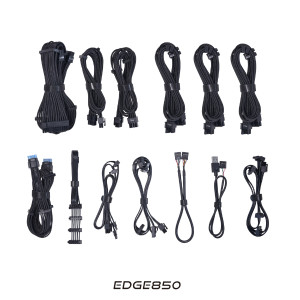

COMPREHENSIVE CONNECTORS
The modular cables are measured precisely for the dual chamber chassis to avoid bulkiness and ensure efficient cable management.
SPECIFICATIONS
| MODEL NAME | EDGE850 | EDGE1000 | EDGE1300 |
|---|---|---|---|
| MODEL NO. | EG0850 BLACK / EG0850 WHITE | EG1000 BLACK / EG1000 WHITE | EG1300 BLACK / EG1300 WHITE |
| COLOR | Black/ White | Black/ White | Black/ White |
| DIMENSIONS | (D)182 mm X (W)86 mm X (H)150 mm | ||
| POWER SUPPLY DESIGN | Fully modular | ||
| MATERIAL | Steel | ||
| FORM FACTOR | ATX 3.1 | ||
| CERTIFICATION | 80 PLUS PLATINUM / Cybenetics PLATINUM / PPLP PLATINUM | ||
| MAX. DC OUTPUT | 850W | 1000W | 1300W |
| COMBINED +3.3V & +5V | 120W | 120W | 120W |
| COMBINED +12V | 849.6W | 996W | 1296W |
| INPUT VOLTAGE | 100-240Vac | 100-240Vac | 100-240Vac |
| INPUT FREQUENCY RANGE | 10-5A 50-60Hz | 12-6A 50-60Hz | 15-7.5A 50-60Hz |
| PFC | Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz | Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz | Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz |
| EFFICIENCY | 92.41%MAX | 92.36% MAX | 92.39% MAX |
| PROTECTIVE CIRCUIT | OCP/OVP/OTP/OPP/SCP/UVP | ||
| CONNECTORS | 1 x 24/20-Pin motherboard connector (500mm) x1pcs 1 x 8/4+4 Pin CPU/ATX 12V connector (550mm) x2pcs 1 x 8/6+2 Pin PCle connector (550m m) x3pcs 1 x 12V-2×6 connector (550mm) × 1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs 4 x SATA connector (400mm-150mm-150mm-150mm) x1pcs 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs 4 x Y Type SATA connector (400mm-125mm x 2) x1pcs USB*9pin – USB*9pin connector (350mm) × 1pcs USB*9pin -Type A connector (550mm) × 1pcs | 1 x 24/20-Pin motherboard connector (500mm) x1pcs 1 x 8/4+4 Pin CPU/ATX 12V connector (550mm) x2pcs 1 x 8/6+2 Pin PCle connector (550m m) x4pcs 1 x 12V-2×6 connector (550mm) × 1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs 4 x SATA connector (400mm-150mm-150mm-150mm) x1pcs 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs 4 x Y Type SATA connector (400mm-125mm*2) x1pcs USB*9pin – USB*9pin connector (350mm) × 1pcs USB*9pin -Type A connector (550mm) × 1pcs | 1 x 24/20-Pin motherboard connector (500mm) x1pcs 1 x 8/4+4 Pin CPU/ATX 12V connector (550mm) x2pcs 1 x 8/6+2 Pin PCle connector (550m m) x4pcs 1 x 12V-2×6 connector (550mm) × 1pcs 1 x 12VHPWR – 2 x 8pin connector (550mm) × 1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs 4 x SATA connector (400mm-150mm-150mm-150mm) x1pcs 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs 4 x Y Type SATA connector (400mm-125mm*2) x1pcs USB*9pin – USB*9pin connector (350mm) × 1pcs USB*9pin -Type A connector (550mm) × 1pcs |
| FAN TYPE | 120mm FDB Fan | ||
| FAN SPEED | 2000RPM | 2400RPM | |
| FAN NOISE LEVEL | 25.96dBA | 33.61dBA | |
| WARRANTY | 10 Years | ||
