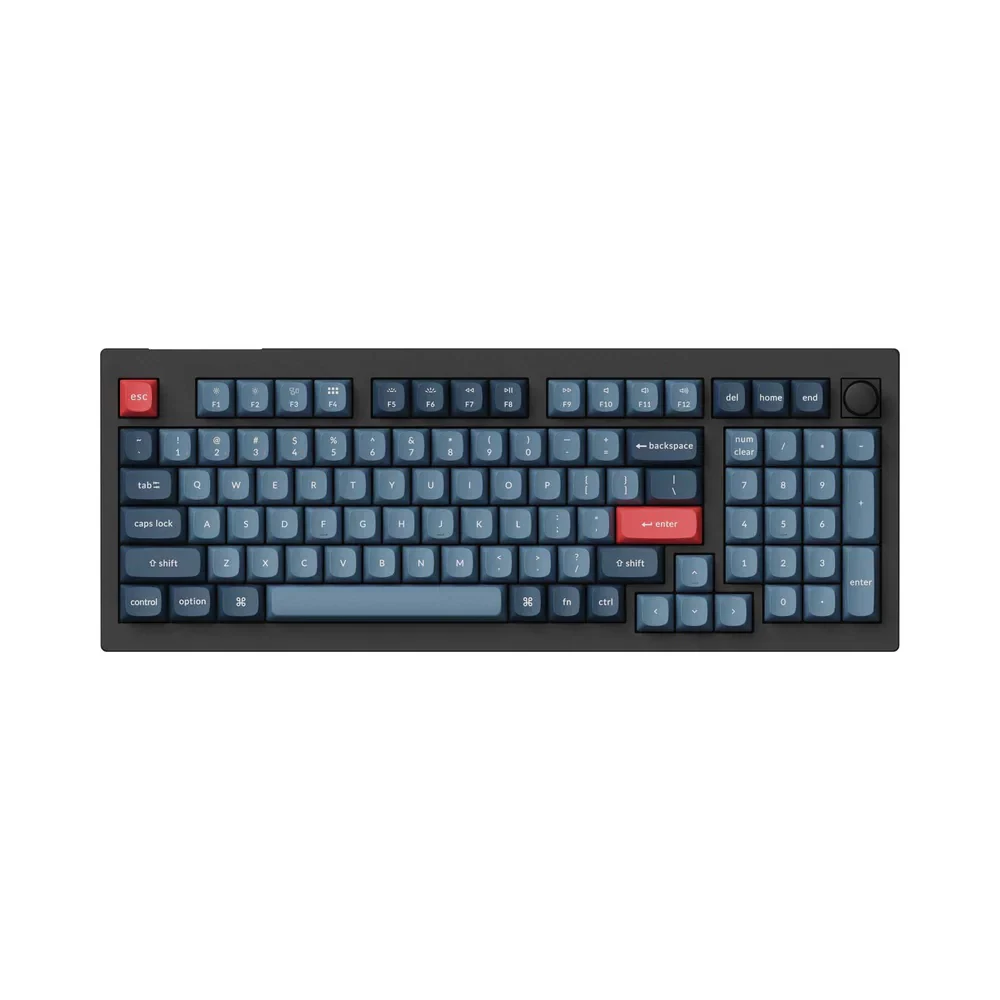

Keychron V5 Max (96%) Carbon Black Banana Switch Clavier Mécanique Sans Fil et Filaire (V5M-D4)
UGS: V5M-D4
$160.19
$159.99
+ $0.20 Écofrais
Options
Description du produit
The V5 Max is a QMK custom mechanical keyboard with 2.4 GHz wireless and Bluetooth 5.1 connectivity. Its 1800 compact layout, gasket mount design, sound-absorbing foam, and double-shot PBT keycaps enhance typing comfort and productivity.
Features:
Customizable Design:
- Easily assembled components: Allows full customization.
2.4 GHz & Bluetooth Connection:
- 1000 Hz polling rate: For rapid, responsive performance.
- Bluetooth 5.1: Connect to up to three devices.
- Dual Receivers: Includes Type-C and Type-A receivers for quick plug-and-play use.
Powerful Core:
- ARM architecture MCU with 256K Flash: Low latency for competitive gaming.
OSA Profile Double-shot PBT Keycaps:
- Oil-resistant and durable: Prevents fading legends.
Switch Layouts Between macOS & Windows:
- System toggle: Comes with keycaps for both systems.
Gasket Mount Design:
- Reduces acoustic resonance: Softer, quieter typing experience.
Program with QMK & Launcher:
- Open-source QMK firmware: Customizable keys with Keychron Launcher.
Hot-swappable:
- Supports 3-pin and 5-pin MX mechanical switches: Easy switch swapping without soldering.
South-facing RGB LED Lights:
- Better illumination: Designed for optimal backlight visibility.
Gateron Jupiter Switch:
- Pre-lubed with high lifespan: Smooth tactile experience.
Screw-In PCB Stabilizers:
- Increased stability: Smooth typing on large keys.
Specs:
| Width | 148.7 mm |
|---|---|
| Length | 391.5 mm |
| Front Height | 21.7 mm (without keycaps) |
| Back Height | 29.6 mm (without keycaps) |
| Feet Height | 2 mm |
| Angle | 3.5° / 8° / 10° |
| Weight | 925 ± 10g (Fully Assembled Version) |
| Body Material | ABS Plastic |
| Plate Material | PC |
| Polling Rate | 1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode) |
| Mount Style | Gasket Mount Design |
| Bluetooth Device Name | Keychron V5 Max |
| Battery | 4000 mAh Rechargeable li-polymer battery |
|---|---|
| Wireless Working Time (Backlit off) | Up to 225 hours (Lab test result may vary by actual use) |
| Wireless Working Time (RGB) | Up to 100 hours (Lowest brightness) |
| Charging Time | Around 5 hours |
| Bluetooth Version | 5.1 |
| Compatible System | Windows/macOS/Linux |
| N-Key Rollover (NKRO) | Yes for both wireless and wired modes |
| Hot-swappable | Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX, Kailh, etc. |
| Keycaps (Fully Assembled Version) | Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape) |
|---|---|
| MCU | ARM Cortex-M4 32-bit STM32F402 (256KB Flash) |
| Switches | Gateron Jupiter (Fully Assembled Version) |
| Backlight | South-facing RGB LED |
| Stabilizer | Screw-in PCB stabs |
| Charging Port | USB Type-C |
| Cable | Type-C cable + Type-A to Type-C adapter |
| Operating Environment | -10℃ to 50℃ |
