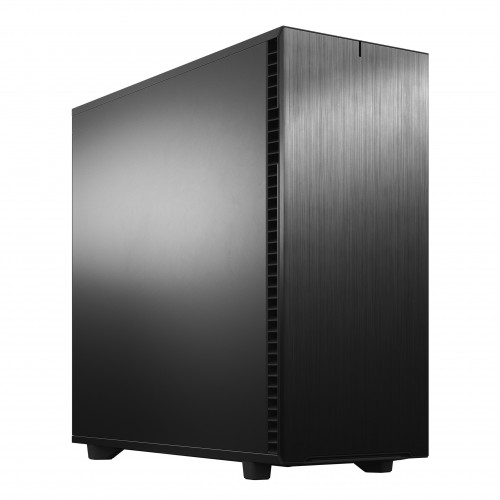

Fractal Design Define 7 XL Black E-ATX Full Tower Boitier (FD-C-DEF7X-01)

Specifications

• 3.5"/2.5" Universal drive brackets
  6 + 2 included, 18 positions total
• Dedicated 2.5" drive brackets
  2 included, 5 positions total
• 5.25” drive mounts
  2
• Expansion slots
  9 + 3
• Front ports
  1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button
• Total fan mounts
  11 x 120 mm or 9 x 140 mm
• Front fan
  4 x 120 mm or 3 x 140 mm, (2 x Dynamic X2 GP-14 included)
• Top fan
  4 x 120 mm or 3 x 140 mm
• Rear fan
  1 x 120/140 mm, (1 x Dynamic X2 GP-14 included)
• Bottom fan
  2 x 120/140 mm
• Dust filters
  Top, 2 x Front, Bottom + PSU
• Fixed velcro straps
  Yes
• Cable routing grommets
  Yes
• Captive thumbscrews
  HDD brackets, SSD brackets, PSU bracket
• Left side panel
  Industrial sound-damped steel
• Right side panel
  Industrial sound-damped steel

Compatibility

• Motherboard compatibility
  E-ATX / ATX / mATX / mITX / EE-ATX / SSI-CEB / SSI-EEB
• Power supply type
  ATX
• PSU max length
  250 mm (both HDD cages installed)
• GPU max length
  Storage layout: 359 mm - Open layout: 549 mm (524 mm w/ front fan)
• CPU cooler max height
  185 mm
• Front radiator
  Up to 480/420 mm
• Top radiator
  Up to 480/420 mm
• Rear radiator
  120 mm
• Bottom radiator
  Up to 240/280 mm
• Cable routing space
  30 mm

Dimensions

• Case dimensions (LxWxH)
  604 x 240 x 566 mm
• Case dimensions w/o feet/protrusions/screws
  590 x 240 x 548 mm
• Package dimensions (LxWxH)
  646 x 357 x 708 mm
• Net weight
  16.53 kg
• Package weight
  18.73 kg

Other

• Package contents
  Define 7 XL - Accessory box - User manual - Ventilated top panel - ODD bracket - ODD bay cover - 2 x HDD/SSD trays
• EAN
  7340172702047
• UPC
  843276102043
• JAN
  4537694274296
• Product code
  FD-C-DEF7X-01
