Creative Sound Blaster Audigy FX V2 5.1 PCIe Carte Son (70SB187000000)
UGS: 70SB187000000
Options
Description du produit

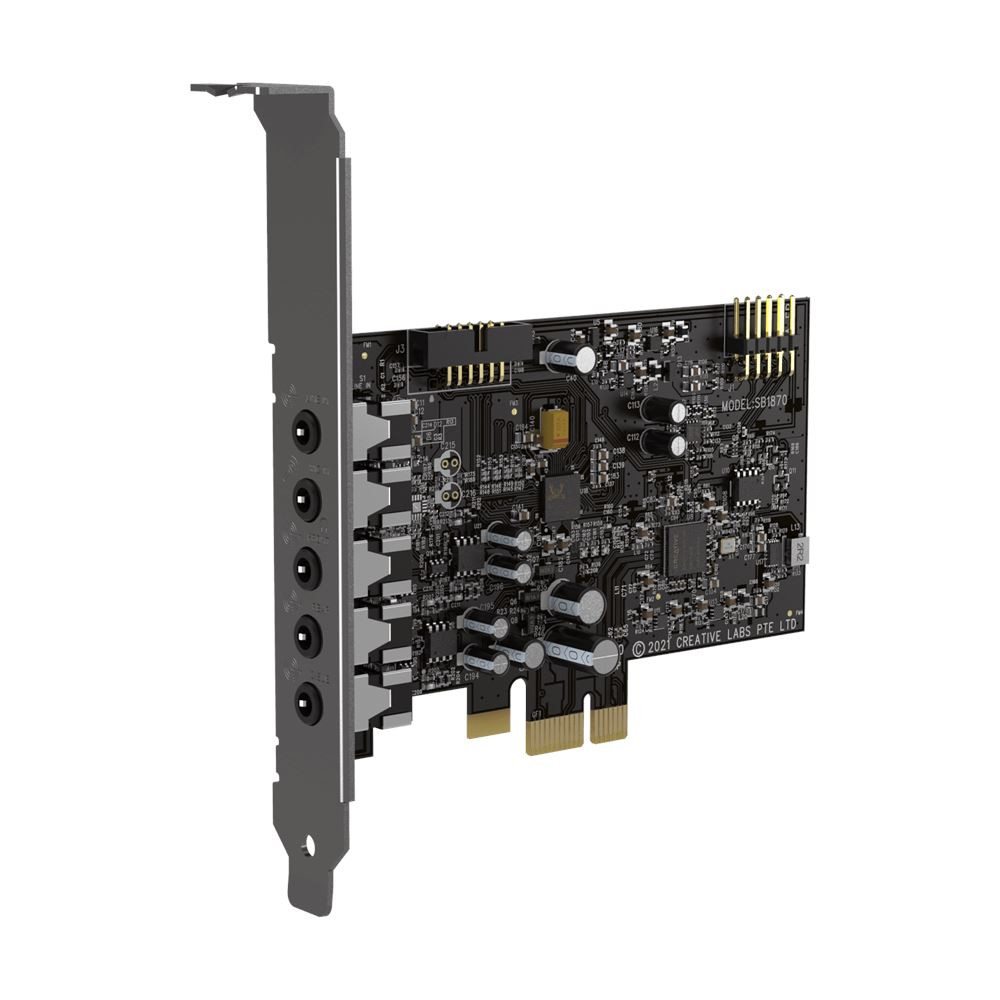

SOUND BLASTER AUDIGY FX V2
Upgradable Hi-res 5.1 PCI-e Sound Card with SmartComms Kit
OVERVIEW
Bridging the gap between performance and value, our all-new Sound Blaster Audigy Fx V2 introduces pristine audio fidelity, advanced audio processing through Sound Blaster Acoustic Engine, and our latest audio innovation—SmartComms Kit—a suite of smart communication features designed to improve the way you communicate online.
With professional audio now made personal, the Sound Blaster Audigy Fx V2 is the perfect addition to your gaming rig or workstation! It features 5.1 surround sound, high-quality audio with 120 dB SNR, and high-resolution 24-bit 192 kHz playback.
You can also choose to further enhance the audio performance of your PC with Sound Blaster Audigy Fx V2 DBPro-an optional daughterboard expansion card with upgrades such as DSD256 playback support, added side channels for full 7.1 discrete surround, as well as the addition of an optical-out port.
SPECIFICATIONS
-
Weight
- Main Board : 57g / 2.01 oz, Half-Height Bracket : 12g / 0.42 oz
-
Dimensions
- Main Board: 117.4 x 121 x 21.6 mm / 4.62 x 4.76 x 0.85 inches, Half-Height Bracket: 80 x 21.6 mm / 3.15 x 0.85 inches
-
Audio Technology
- SmartComms Kit
-
Signal-to-Noise Ratio (SNR)
- 120 dB (DAC)
-
Direct Mode
- Headphone (Stereo): PCM 16-bit, 44.1, 48.0, 88.2, 96.0. 192.0 kHz
Headphone (Stereo): PCM 24-bit, 44.1, 48.0, 88.2, 96.0. 192.0 kHz
Line Out (Stereo / Surround): PCM 16-bit, 44.1, 48.0, 88.2, 96.0. 192.0 kHz
Line Out (Stereo / Surround): PCM 24-bit, 44.1, 48.0, 88.2, 96.0. 192.0 kHz
Optical Out (Stereo)*: PCM 16-bit, 44.1, 48.0, 88.2, 96.0, 192.0 kHz
PCM 24-bit, 44.1, 48.0, 88.2, 96.0, 192.0 kHz
* Optical Out is available with DBPro daughter board upgrade
-
DSD Playback
- Headphone/Line Out (Stereo): Native DSD: DSD64, DSD128, DSD256
DoP: DSD64^ DSD Playback is available with DBPro daughter board upgrade
-
Recording Resolution
- Mic-in (Mono): Mono, 16-bit, 44.1, 48.0, 88.2, 96.0 kHz
Mic-in (Mono): Mono, 24-bit, 44.1, 48.0, 88.2, 96.0 kHz
Line-in (Stereo): Stereo, 16-bit, 44.1, 48.0, 88.2, 96.0, 192.0 kHz
Line-in (Stereo): Stereo, 24-bit, 44.1, 48.0, 88.2, 96.0, 192.0 kHz
-
Connectivity Options (Main)
- 1 x ⅛″ Mic-in, 1 x ⅛″ Line-in, 1 x ⅛″ Headphone / Headset-out / Front-out (default as Headphone / Headset), 1 x ⅛″ Rear-out, 1 x ⅛″ Center / Sub-out
-
Headphone Amp
- Supported Headphone Impedance: 32–600Ω, Output Impedance: 10Ω
-
Max Channel Output
- 5.1 Channels
-
Supported Operating Systems
- Windows® 10, Windows® 11
-
ASIO
- ASIO 2.3
-
DAC
- THD+N: ≤0.004%
-
Recommended Usage
- Home Entertainment
SYSTEM REQUIREMENTS
- Intel® Core™i3 or AMD® equivalent processor
- Intel, AMD, or 100% compatible motherboard
- Microsoft® Windows 10 / Windows 11 32 / 64-bit or later
- >4 GB RAM
- >4 GB of free hard disk space
- Available PCIe slot
PACKAGE CONTENTS
- Sound Blaster Audigy Fx V2 Sound Card
- Half-height bracket (Full height bracket mounted on board)
- Quick Start Leaflet
- Warranty Leaflets
- SmartComms Kit Leaflet
WARRANTY
1-year Limited Hardware Warranty
