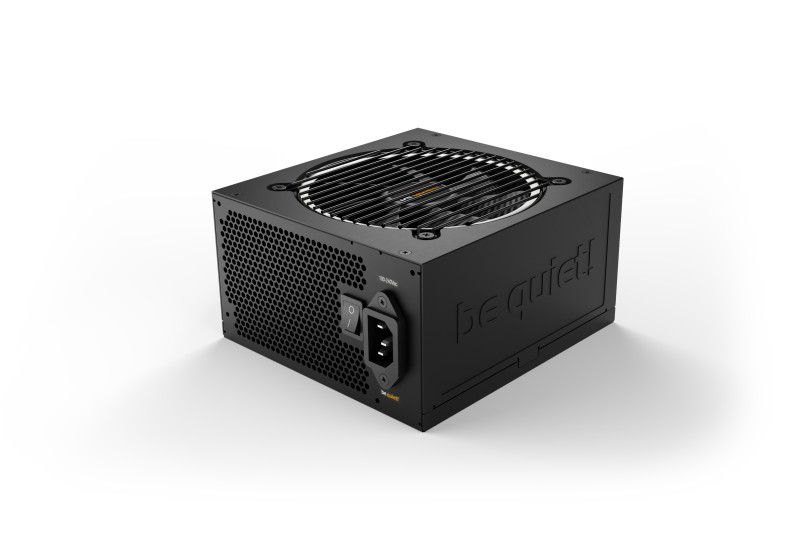

be quiet! Pure Power 12 M 750W 80 PLUS Gold ATX 3.1 PCIe 5.1 Fully Modular Power Supply (BN504)
01.jpg 02.jpg 03.jpg 04.jpg

be quiet! Pure Power 12 M 750W 80 PLUS Gold ATX 3.1 PCIe 5.1 Alimentation Modulaire Complète (BN504)

149.99$

Quantité

PURE POWER 12 M

750W

Exceptional quiet, superior features

Pure Power 12 M 750W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 750W offers the best combination of features with outstanding compatibility.

  • 80 PLUS® Gold efficiency (up to 92.6%)
  • ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
  • Exceptionally silent 120mm be quiet! fan
  • Advanced stability and voltage regulation thanks to LLC technology
  • 2 strong 12V-rails
  • Modular cables for maximum build flexibility
  • One PCIe 5.1 12V-2x6 600W and 2 PCIe 6+2 connectors for high-end GPUs
  • 10-year manufacturer’s warranty



General data

ModelPure Power 12 M 750W
Continuous power (W)750
Peak power (W)820
Form factorVersion 3.1
Form factor EPS 12VVersion 2.92
TopologyLLC + SR + DC/DC
Digitally controlled-
Voltage (Vac)100 - 240
Frequency (Hz)50 - 60
Input current (A)10 / 5
Power factor at 100% load>0.98
Modern standby✓
Power consumption in standby (W)<0.1
Average life time (h / 25°C)>100,000
Operating temperature up to (°C)40

Infographics



Efficiency

80 PLUS certificationGold
Efficiency (%) at 230V, 2% load75.7
Efficiency (%) at 230V, 10% load86.6
Efficiency (%) at 230V, 20% load91.5
Efficiency (%) at 230V, 50% load92.6
Efficiency (%) at 230V, 100% load90.6

Fan and cooling technology

FanSilence-optimized be quiet! fan
Fan size (mm)120
Bearing technologyRifle
Motor technology4-pole fan motor
Max. fan speed (rpm)1800
dB(A) at 10% load8.4
dB(A) at 20% load8.5
dB(A) at 50% load8.9
dB(A) at 100% load24

Output

Multi-rail operation (12V rails)2
12V single rail operation-
Overclocking key-
+3.3V (A)20
+5V (A)20
+12V1 (A)36
+12V2 (A)32
+12V3 (A)-
+12V4 (A)-
+12V5 (A)-
+12V6 (A)-
-12V (A)0.3
+5Vsb (A)3
Max. combined power 12V (W)750
Max. combined power 12VHPWR (W)600
Max. combined power 3.3V + 5V (W)120
Hold-up time at 100% load (ms)21.4
Hold-up time at 80% load (ms)29.5
Power good signal (ms)100 - 150

Cables and connectors

Modular cables✓
Sleeved cablesP24, 12VHPWR
Flat cablesP4+4, P8, PCIe, drives
Maximum cable length (cm)95
Cable length to motherboard (cm)55
No. of cables7
ATX-Motherboard (20+4-pin)1
P4+4 (CPU)1
P8 (CPU)1
P4 (CPU)-
12VHPWR cables1
PCI-e 6+2-pin (GPU)2
PCI-e 6-pin (GPU)-
SATA5
PATA2
FDD (Floppy)-

Protection

OTP (over temperature protection)✓
OCP (over current protection)✓
OPP (over power protection)✓
SCP (short circuit protection)✓
OVP (over Voltage protection)✓
UVP (under Voltage protection)✓
SIP (Surge & Inrush protection)✓

Safety certification

BSMI✓
CB✓
CCC✓
CE✓
cRUus-
cTUVus✓
CU✓
FCC✓
RCM✓
TÜV✓
UKCA✓

Environmental directives

Energy Star8.0
ErP✓
WEEE✓
RoHS✓
Triman✓

Scope of delivery

Thumb screws-
Screws✓
Cable ties✓
Velcro cable ties-
User manual languagesCN, DE, EN, ES, FR, JP, PL, RU, TW
OCK slot bracket with switch / OCK jumper-
SFX-to-ATX adapter bracket-

Casing

Dimensions without cable (L x W x H), (mm)160 x 150 x 86
Weight (kg)1.69
ColorBlack

Service

Warranty (Years)10
Express replacement service in first year-
International hotline / free of charge✓ / DE, FR, US

Logistics data and RRP

Article numberBN504
EAN code4260052189788
Dimensions, package (L x W x H), (mm)284 x 220 x 100
Gross weight, package (kg)3.0
Pieces per packaging unit6
Dimensions, shipping box (L x W x H), (mm)590 x 320 x 240
Gross weight, shipping box (kg)19.1
RRP (€)119.90
